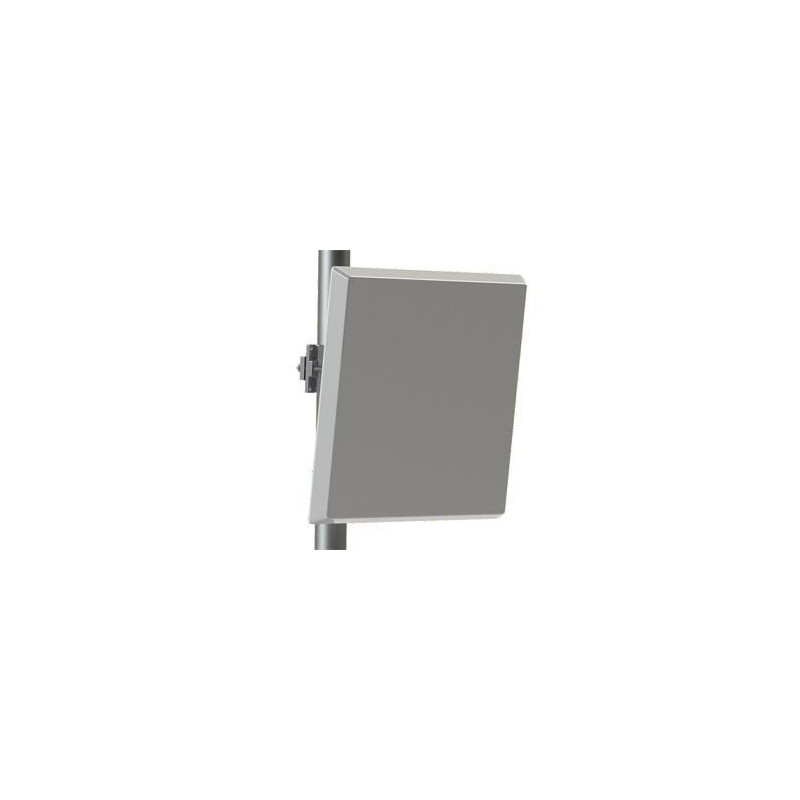

ARC Wireless ARC-PD5823B88 ARC Dual Pol Panel Antenna 5.8GHz, 23dBi
$264.83
Tax included
ARC Wireless ARC-PD5823B88 ARC Dual Pol Panel Antenna 5.8GHz, 23dBi Features: Packaged with ARC ABS™ Articulating Bracket Solution External Radio Mounting Features Included High Port to Port Isolation for Ideal MIMO Performance US Engineered Manufactured under strict US quality control procedures Low profile and rugged design for outdoor use Electrical Specifications: Port to Port Isolation: 40dB (minimum) Front-to-Back Ratio: 40 dBi Cross Polarisation: 30 dBi Sidelobe Level: 12 dB Power Rating: 30 watts Impedance: 50 ohms Lightning Protection: DC Ground Physical/Environmental Specifications: Length x Width x Depth: 38.6 x 38.6 x 5.1cm Weight: 1.86kg Backplane: Aluminum Radome: UV stabilised ABS plastic, grey Wind Survivability: 201kph Wind Load: 0.148m2 Operating Temperature: -45°C to ...
ARC Wireless ARC-PD5823B88 ARC Dual Pol Panel Antenna 5.8GHz, 23dBi
Features:
Packaged with ARC ABS™ Articulating Bracket Solution
External Radio Mounting Features Included
High Port to Port Isolation for Ideal MIMO Performance
US Engineered Manufactured under strict US quality control procedures
Low profile and rugged design for outdoor use
Electrical Specifications:
Port to Port Isolation: 40dB (minimum)
Front-to-Back Ratio: 40 dBi
Cross Polarisation: 30 dBi
Sidelobe Level: 12 dB
Power Rating: 30 watts
Impedance: 50 ohms
Lightning Protection: DC Ground
Physical/Environmental Specifications:
Length x Width x Depth: 38.6 x 38.6 x 5.1cm
Weight: 1.86kg
Backplane: Aluminum
Radome: UV stabilised ABS plastic, grey
Wind Survivability: 201kph
Wind Load: 0.148m2
Operating Temperature: -45°C to 65°C
Pole Mount Diameter Range: 1.9 to 7.6cm
Environmental: IP 67
Connector: (2) Type-N Jack
Product information source: Streakwave product page.
