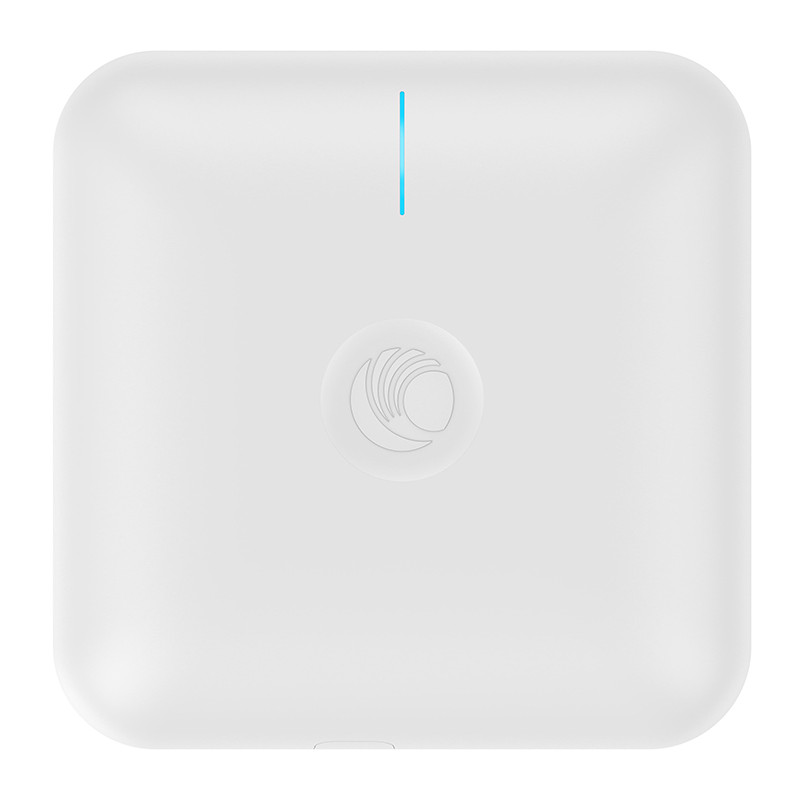

Cambium Networks XV3-8X00A00-RW Tri-Radio WiFi 6. Indoor SDR 802.11ax 8x8 or Dual 4x4 5GHz WLAN AP, scan radio, BLE

Cambium Networks XV3-8X00A00-RW Tri-Radio WiFi 6. Indoor SDR 802.11ax 8x8 or Dual 4x4 5GHz WLAN AP, scan radio, BLE

Product Code: XV3-8X00A00-RW

Specifications:

Radios:                5 GHz radio (802.11a/n/ac Wave 2/ax), 8x8 (or configure as 2 x 5 GHz 4x4)

                             2.4 GHz (802.11b/g/n/ax), 4x4 Dual-band scan radio, 1x1 BLE 4.1

Wi-Fi:                   802.11a/b/g/n/ac Wave 2/ax

SSID Security:    WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), Open

Antenna:             5 dBi (2.4 GHz) 6.7 dBi (5 GHz), Omni dual - band sensor antenna, 5 dBi (2.4 GHz) / 6.3 dBi (5 GHz) BLE antenna, 5 dBi

Features:

• High-density Wi-Fi with software-defined radios (SDR)

• Five-radio architecture for edge services

• 6 Gbps aggregate data rate

• Dedicated scanning sensor, dual band

• Application policy control

• EasyPass with Microsoft Azure and Google G Suite integration

DESIGNED FOR HIGH DENSITY AND EDGE SERVICES

The XV3-8 features a total of five (5) radios to deliver a next generation network with edge services with high capacity and high density. Three data radios can be configured as two 5 GHz 4x4 plus one 2.4 GHz 4x4, or the two 5 GHz radios can be combined into a single 5 GHz 8x8 radio with the maximum power and performance of the 802.11ax standard. A dedicated network scanning radio provides continuous network monitoring to enhance security protocols, detailed network reports, and automatic RF optimisations. Add the Bluetooth Smart 4.1 IoT radio for BLE-based location services and you get a multi-radio, high-capacity Wi-Fi 6 AP designed for the most demanding networks in enterprise, education, retail, and public venues.

XV3-8 comes with Limited Lifetime Warranty providing return and repair service on the access point from date of purchase until end of life of the product.

OPTIMIZED WI-FI FOR DOMINANT CLIENT DEVICES

For networks dominated by legacy 802.11ac client devices, the dual 5 GHz 4x4 mode will double network capacity to maintain high-bitrate services as density increases. As the devices migrate to the new Wi-Fi 6 standard based on 802.11ax, the XV3-8 SDR can be quickly converted into full 8x8 operating mode via a simple configuration change. No firmware change is required to support this mode.

CLOUD AND ON-PREMISES MANAGEMENT

XV3-8 operates with either Cambium Networks' XMS or cnMaestroTM management system. Choose the management system that best fits your business and use the latest technology from Cambium Networks.

Tri-Radio WiFi 6. Indoor SDR 802.11ax 8x8 or Dual 4x4 5GHz WLAN AP, scan radio, BLE
