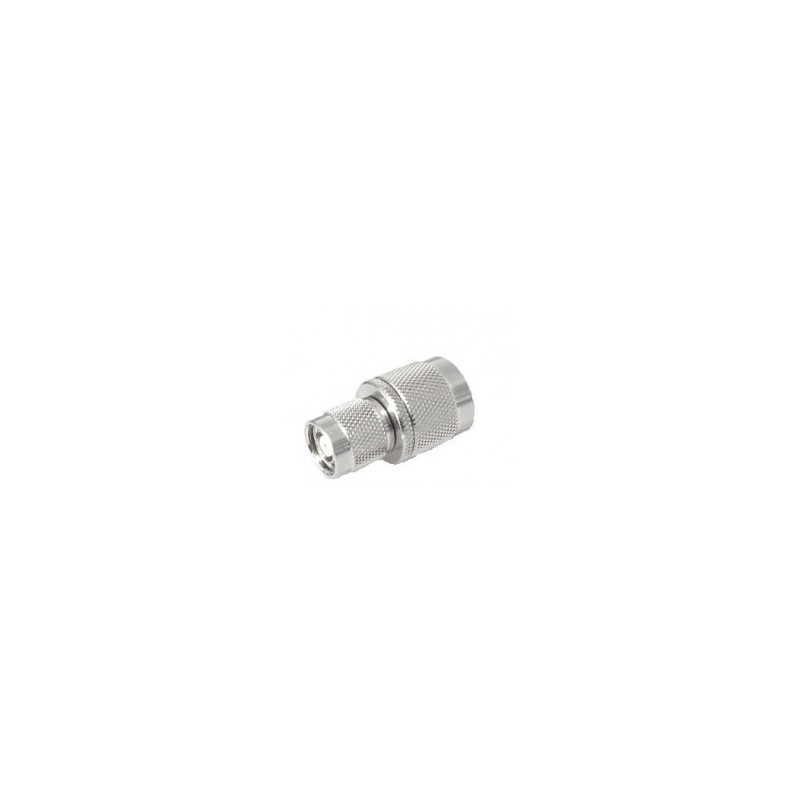

MicroBeam MB11CMNM RPTNC Male to N Male Adapter
$9.90
Tax included
MicroBeam MB11CMNM RPTNC Male to N Male Adapter RPTNC Male to N Male AdapterAdapter Specifications:Product NameRPTNC Male to N Male AdapterDescriptionRPTNC Male to N Male AdapterBodyNickel Plated BrassContactGold Plated BrassInsulatorTFEFerruleNickel Plated BrassModelMB11CMNMFrequency Range–MHz0-11000Voltage Breakdown V1500Dielectric Strength V RMS2500Impedance-Ω50Insertion Loss dB<0.15Temperature oC-50 to +85Weather ProofYesConnectorRPTNC Male to N Male
MicroBeam MB11CMNM RPTNC Male to N Male Adapter
RPTNC Male to N Male Adapter
Adapter Specifications: | |
Product Name | RPTNC Male to N Male Adapter |
Description | RPTNC Male to N Male Adapter |
Body | Nickel Plated Brass |
Contact | Gold Plated Brass |
Insulator | TFE |
Ferrule | Nickel Plated Brass |
Model | MB11CMNM |
Frequency Range–MHz | 0-11000 |
Voltage Breakdown V | 1500 |
Dielectric Strength V RMS | 2500 |
Impedance-Ω | 50 |
Insertion Loss dB | <0.15 |
Temperature oC | -50 to +85 |
Weather Proof | Yes |
Connector | RPTNC Male to N Male |
Product information source: Streakwave product page.
