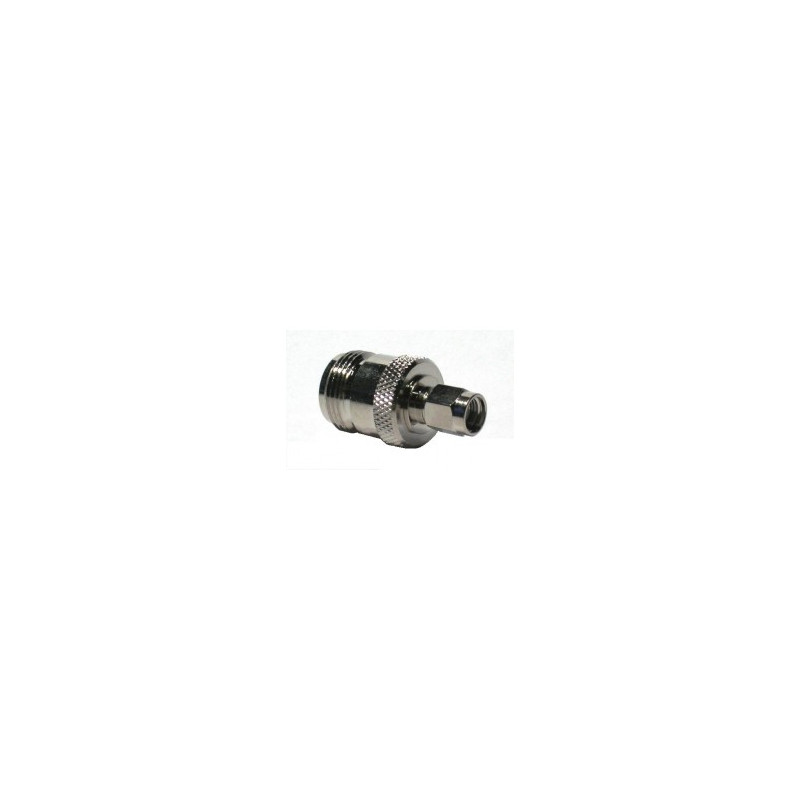

MicroBeam MB11RMFN RPSMA Male to N Female Adapter
$7.80
Tax included
MicroBeam MB11RMFN RPSMA Male to N Female Adapter RPSMA Male to N Female AdapterAdapter Specifications:Product NameRPSMA Male to N Female AdapterDescriptionRPSMA Male to N Female AdapterBodyNickel Plated BrassContactGold Plated BrassInsulatorTFEFerruleNickel Plated BrassModelMB11RMFNFrequency Range–MHz0-11000Voltage Breakdown V1500Dielectric Strength V RMS2500Impedance-Ω50Insertion Loss dB<0.15Temperature oC-50 to +85Weather ProofYesConnectorRPSMA Male to N Female
MicroBeam MB11RMFN RPSMA Male to N Female Adapter
RPSMA Male to N Female Adapter
Adapter Specifications: | |
Product Name | RPSMA Male to N Female Adapter |
Description | RPSMA Male to N Female Adapter |
Body | Nickel Plated Brass |
Contact | Gold Plated Brass |
Insulator | TFE |
Ferrule | Nickel Plated Brass |
Model | MB11RMFN |
Frequency Range–MHz | 0-11000 |
Voltage Breakdown V | 1500 |
Dielectric Strength V RMS | 2500 |
Impedance-Ω | 50 |
Insertion Loss dB | <0.15 |
Temperature oC | -50 to +85 |
Weather Proof | Yes |
Connector | RPSMA Male to N Female |
Product information source: Streakwave product page.
