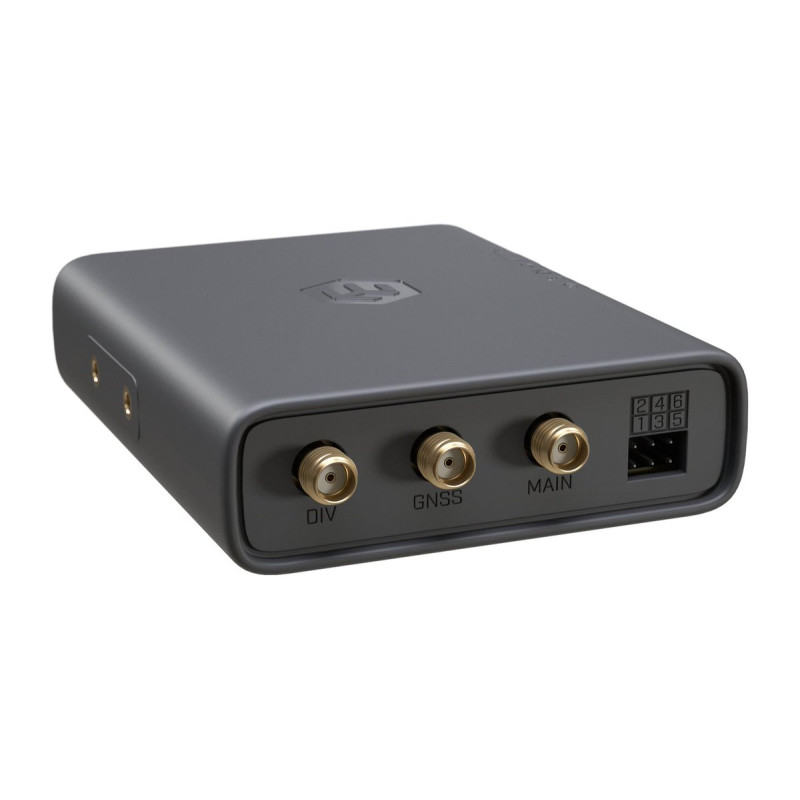

MikroTik EC25-EU&KNe KNOT Embedded LTE4 Industrial LTE/BLE/GNSS Connectivity That Fits Anywhere - No Power Supply Included

MikroTik EC25-EU&KNe KNOT Embedded LTE4 Industrial LTE/BLE/GNSS Connectivity That Fits Anywhere - No Power Supply Included

KNOT Embedded LTE4 is a tiny but powerful industrial LTE gateway designed for integrators, automation specialists, and IoT system builders. It fits into tight spaces, mounts directly on a DIN rail, and delivers reliable LTE Cat4 connectivity with Bluetooth and GNSS support.

Use it as a primary gateway, a backup link, or an IoT data collection node – everything is powered by RouterOS for maximum flexibility.

• Smart city infrastructure (parking, sensors, metering)

• Coffee and vending machine monitoring

• Industrial automation cabinets

• Environmental & utility monitoring

• Vehicle or asset tracking with GNSS

• Retail kiosks, payment terminals, digital signage

• LTE backup connectivity for existing Ethernet devices

• IoT gateways for BLE sensors and beacons

Whether you’re building a new system or adding LTE to an existing installation, KNOT Embedded LTE4 adapts easily. It’s easy to integrate, easy to deploy, and built to perform in harsh environments – from smart city deployments to industrial automation and mobile tracking.

Specification

Specifications

• Product codeEC25-EU&KNe
• ArchitectureARM 32bit
• CPUCPU ARM 32-bit Cortex A7 up to 1.2 GHz
• CPU core count1
• CPU nominal frequency1200 MHz
• RouterOS license3
• Operating SystemRouterOS v7
• Size of RAM256 MB
• Storage size512 MB
• Storage typeNAND
• MTBFApproximately 100'000 hours at 25C
• Tested ambient temperature-40°C to 70°C

Powering

• Number of DC inputs2 (PoE-IN, USB-C)
• Max power consumption7 W
• Max power consumption without attachments7 W
• PoE in802.3af/at
• Cooling typePassive
• PoE in input Voltage12-57 V
• USB C input Voltage5 V

Mobile

• 2G CategoryClass12
• 2G bands3 (1800MHz)
  8 (900MHz)

• 3G CategoryR8 (42.2Mbps Downlink, 5.76Mbps Uplink)
• 3G bands1 (2100MHz)
  8 (900MHz)

• LTE Category4 (150Mbps Downlink, 50Mbps Uplink)
• MIMO DL2x2
• MIMO UL1x1
• LTE FDD bands1 (2100MHz)
  3 (1800MHz)
  7 (2600MHz)
  8 (900 MHz)
  20 (800MHz)
  28A (700 MHz)

• LTE TDD bands38 (2600MHz)
  40 (2300MHz)
  41 (2500MHz)

• TAC86554604

Ethernet

• 10/100/1000 Ethernet ports1
• Number of 1G Ethernet ports with Reverse PoE (PoE-in)1

Peripherals

• Number of SIM slots1 Modem (Nano SIM)

Other

• CPU temperature monitorYes
• Bluetooth version5.1
• GPS RF connector typeSMA
• eSIMYes

Certification & Approvals

• CertificationCE, EAC, ROHS
• IP20

Included parts

K-91 Fastening set
