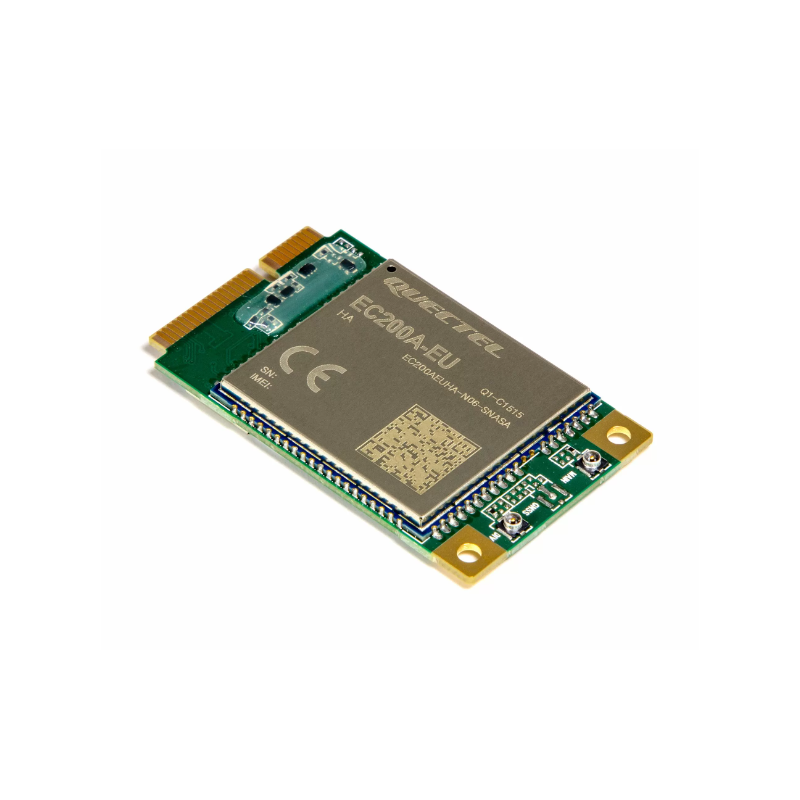

MikroTik R11eL-EC200A-EU MiniPCIe CAT4 LTE card
$95.41
Tax included
MikroTik R11eL-EC200A-EU MiniPCIe CAT4 LTE cardR11eL-EC200A-EUAn extra cost-effective upgrade of our previous R11 LTE4 modem. It offers the same speed (up to 150 Mbps) and features as the earlier version, but the price is even lower now! Also, it supports the popular B28 band.An extra cost-effective upgrade of our previous R11 LTE4 modem. It offers the same speed (up to 150 Mbps) and features as the earlier version, but the price is even lower now!This mini-PCIe modem is designed for the EMEA/APAC/Australia regions, and the supported frequencies include the popular B28 band.SpecificationsDetailsProduct codeR11eL-EC200A-EUTested ambient temperature-35°C to 70°CSuggested price$109.00PoweringDetailsMax power consumption3 WMobileDetails2G CategoryClass122G bands3 (1800MHz) / 8 (900MHz)3G Ca...
MikroTik R11eL-EC200A-EU MiniPCIe CAT4 LTE card
R11eL-EC200A-EU
An extra cost-effective upgrade of our previous R11 LTE4 modem. It offers the same speed (up to 150 Mbps) and features as the earlier version, but the price is even lower now! Also, it supports the popular B28 band.
An extra cost-effective upgrade of our previous R11 LTE4 modem. It offers the same speed (up to 150 Mbps) and features as the earlier version, but the price is even lower now!
This mini-PCIe modem is designed for the EMEA/APAC/Australia regions, and the supported frequencies include the popular B28 band.
Specifications
| Details | |
|---|---|
| Product code | R11eL-EC200A-EU |
| Tested ambient temperature | -35°C to 70°C |
| Suggested price | $109.00 |
Powering
| Details | |
|---|---|
| Max power consumption | 3 W |
Mobile
| Details | |
|---|---|
| 2G Category | Class12 |
| 2G bands | 3 (1800MHz) / 8 (900MHz) |
| 3G Category | R7 (21Mbps Downlinks, 5.76Mbps Uplink) |
| 3G bands | 1 (2100MHz) / 5 (850MHz) / 8 (900MHz) |
| LTE Category | 4 (150Mbps Downlink, 50Mbps Uplink) |
| LTE FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
| TAC | 86314105 |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, ROHS |
| IP | IP00 |
Product information source: Streakwave product page.
