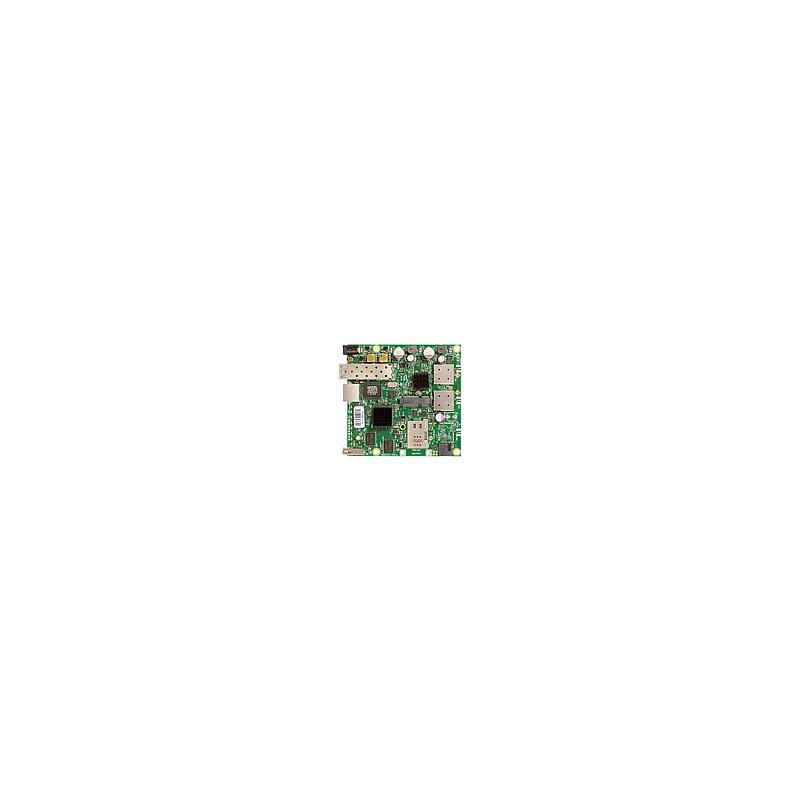

Mikrotik RB922UAGS-5HPacD Board Only
RouterBOARD RB922UAGS-5HPacD is a very versatile wireless router, perfect for assembling your own solution. It supports the new 802.11ac standard for high speed wireless (up to 866Mbit datarate and 20/40/80MHz channels). The device has ports and slots for many uses: 1x SFP cage, miniPCIe slot with SIM for 3G/4G modem or another wireless card, USB port, Gigabit Ethernet port and two MMCX connectors for the built in powerful 802.11ac 2x2 radio. Comes with RouterOS L4 (AP) license.
- RB922UAGS-5HPacD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- RB922UAGS-5HPacD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Specifications:
Product code: RB922UAGS-5HPacD
Architecture: MIPSBE
CPU: QCA9557
CPU core count: 1
CPU nominal frequency: 720 MHz
Dimensions: 105x105mm
RouterOS licence: 4
Operating System: RouterOS
Size of RAM: 128 MB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 100'000 hours at 25C
Tested ambient temperature: -40°C to 70°C
Powering:
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 8-30 V
Max power consumption: 17 W
Cooling type: Passive
PoE in: Passive PoE
PoE in input Voltage: 8-30 V
Wireless specifications:
Wireless 5 GHz Max data rate: 867 Mbit/s
Wireless 5 GHz number of chains: 2
Wireless 5 GHz standards: 802.11a/n/ac
Wireless 5 GHz chip model: QCA9882
Wireless 5 GHz generation: Wi-Fi 5
Ethernet:
10/100/1000 Ethernet ports: 1
Fiber:
SFP DDMI: yes
SFP ports: 1
Peripherals:
Number of SIM slots: 1 Modem (Mini SIM)
MiniPCI-e slots: 1
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1
Other:
PCB temperature monitor: Yes
Voltage Monitor: Yes
Certification & Approvals:
Certification: CE, FCC, IC, EAC, ROHS
IP: IP00
Wireless specifications:
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 31 -96
54MBit/s 27 -81
MCS0 30 -96
MCS7 27 -77
MCS9 22 -72
Product information source: Streakwave product page.
