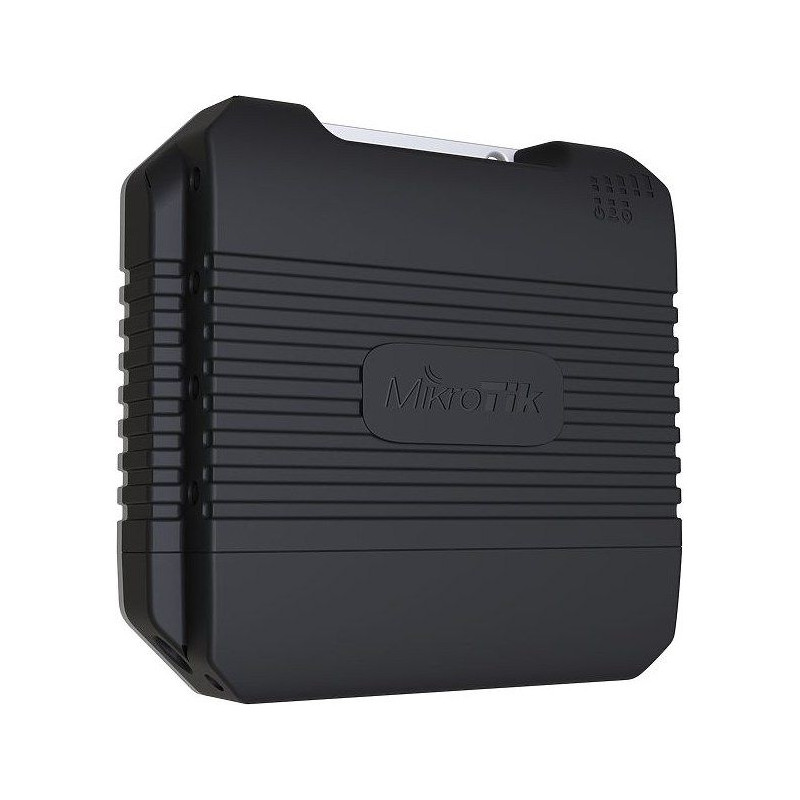

MikroTik RBLtAP-2HnD LtAP 3 Sim Card Heavy-duty AP
$296.84
Tax included
MikroTik RBLtAP-2HnD LtAP 3 Sim Card Heavy-duty AP Introducing LtAP Its high power 2.4 GHz 802.11b/g/n wireless capability. You can also use a Gigabit Ethernet LAN port for your wired devices. There are several power options – DC jack, POE-in and automotive. The rugged and extremely durable case with a special wall mounting kit will be perfect for almost any challenge: from public transportation, food trucks or logistics to harsh winter and stormy desert environment. LtAP can handle any temperature from -40 C° to +70 C°. It is a perfect solution for tracking vehicles in real time. We have provided a simple tracking application example in the RouterOS documentation to help you get started. LtAP even has 3 Mini-SIM slots for easy roaming management. Saves your time and money worldwide! ...
MikroTik RBLtAP-2HnD LtAP 3 Sim Card Heavy-duty AP
Introducing LtAP
Its high power 2.4 GHz 802.11b/g/n wireless capability. You can also use a Gigabit Ethernet LAN port for your wired devices. There are several power options – DC jack, POE-in and automotive.
The rugged and extremely durable case with a special wall mounting kit will be perfect for almost any challenge: from public transportation, food trucks or logistics to harsh winter and stormy desert environment. LtAP can handle any temperature from -40 C° to +70 C°. It is a perfect solution for tracking vehicles in real time. We have provided a simple tracking application example in the RouterOS documentation to help you get started. LtAP even has 3 Mini-SIM slots for easy roaming management. Saves your time and money worldwide!
The unit comes with 2 miniPCIe slot, offering many expansion options. For example, you can install a second LTE modem for redundancy or a 5GHz interface to have dual concurrent 2.4 GHz / 5GHz AP + LTE.
LtAP has a RS232 serial port, which gives you console access for debugging, as well as full size USB for other devices.
The new LtAP is more than an access point – it is what you need it to be wherever you need it to be.
Specifications:
Product code: RBLtAP-2HnD
Architecture: MMIPS
CPU: MT7621A
CPU core count: 2
CPU nominal frequency: 880 MHz
CPU Threads count: 4
RouterOS licence: 4
Operating System: RouterOS
Size of RAM: 128 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 70°C
IPsec hardware acceleration: Yes
Powering:
Number of DC inputs: 3 (DC jack, PoE-IN, Automotive)
DC jack input Voltage: 12-30 V
Automotive input Voltage: 12-27 V
Max power consumption: 24 W
Max power consumption without attachments: 12 W
Cooling type: Passive
PoE in: Passive PoE
PoE in input Voltage: 12-30 V
Mobile:
***ADD EC-25AU card for LTE***
Wireless specifications:
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 2.5
Wireless 2.4 GHz chip model: AR9382
Wireless 2.4 GHz generation: Wi-Fi 4
Ethernet:
10/100/1000 Ethernet ports: 1
Peripherals:
Number of SIM slots: 3 Modem (Mini SIM)
MiniPCI-e slots: 2
Serial console port: RS232
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1
Other:
PCB temperature monitor: Yes
Voltage Monitor: Yes
GNSS standards: GPS
Certification & Approvals:
Certification: CE, FCC, IC, E-MARK, EAC, ROHS
IP: IP54
Wireless specifications:
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 25 -100
11MBit/s 25 -94
6MBit/s 26 -96
54MBit/s 23 -78
MCS0 26 -96
MCS7 22 -73
Product information source: Streakwave product page.
