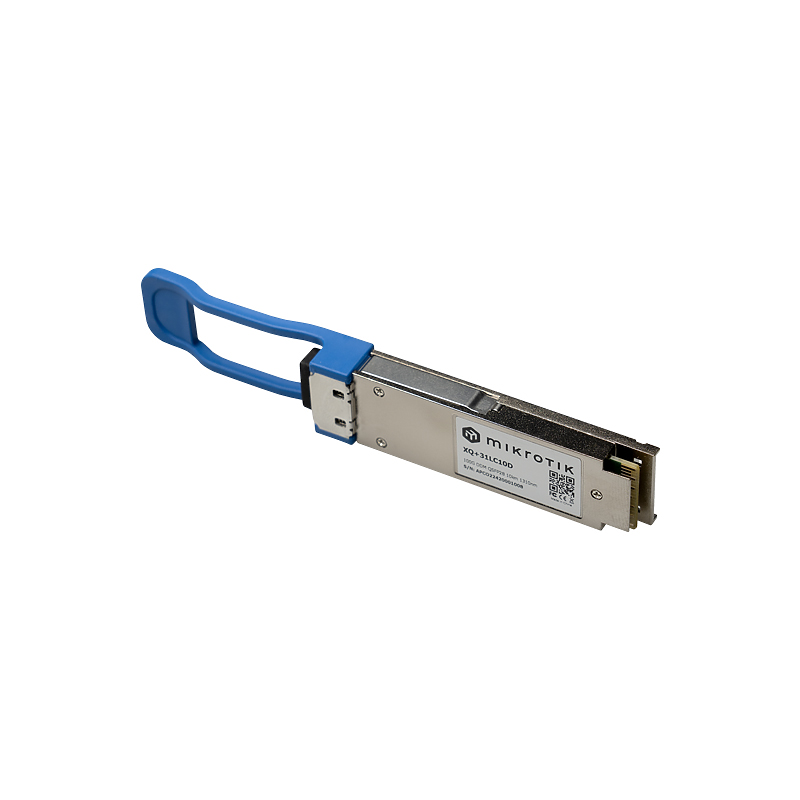

MikroTik XQ+31LC10D QSFP28 module 40/100G SM 10km 1310nm LC-connector DDM
$517.35
Tax included
MikroTik XQ+31LC10D QSFP+ module 40/100G SM 10km The MikroTik 100 Gigabit product line keeps growing!Add this QSFP module for distances up to 10 kilometers to your CCR2216, CRS504 or CRS518 setups and enjoy real speed and ultimate reliability. This optical module offers four independent full-duplex channels with up to 25 Gbps per channel bandwidth and an aggregate bandwidth of 100 Gbps.The module has built-in digital diagnostic functions such as optical power, transceiver supply voltage, temperature, laser bias current monitoring, and other key parameter monitoring. These options can be helpful not only to alert the user during abnormal transceiver activity but also if specific customizable operating limits are exceeded. Monitoring allows you to plan ahead, make informed decisions and p...
MikroTik XQ+31LC10D QSFP+ module 40/100G SM 10km
The MikroTik 100 Gigabit product line keeps growing!
Add this QSFP module for distances up to 10 kilometers to your CCR2216, CRS504 or CRS518 setups and enjoy real speed and ultimate reliability. This optical module offers four independent full-duplex channels with up to 25 Gbps per channel bandwidth and an aggregate bandwidth of 100 Gbps.
The module has built-in digital diagnostic functions such as optical power, transceiver supply voltage, temperature, laser bias current monitoring, and other key parameter monitoring. These options can be helpful not only to alert the user during abnormal transceiver activity but also if specific customizable operating limits are exceeded. Monitoring allows you to plan ahead, make informed decisions and predict necessary upgrades or maintenance based on the transceiver performance.
Product specifications:
Product code: XQ+31LC10D
Connector: Dual LC UPC
Data Rate: 100Gbps
Tested ambient temperature: 0°C .. +70°C
Distance: 10km
Format QSFP28
Mode: Single Mode
Wavelenght: 1296nm, 1300nm, 1305nm, 1309nm
Max Power Consumption: 4.5W
Distance: 10km
Format QSFP28
Mode: Single Mode
Wavelenght: 1296nm, 1300nm, 1305nm, 1309nm
Max Power Consumption: 4.5W
Product information source: Streakwave product page.
