- New

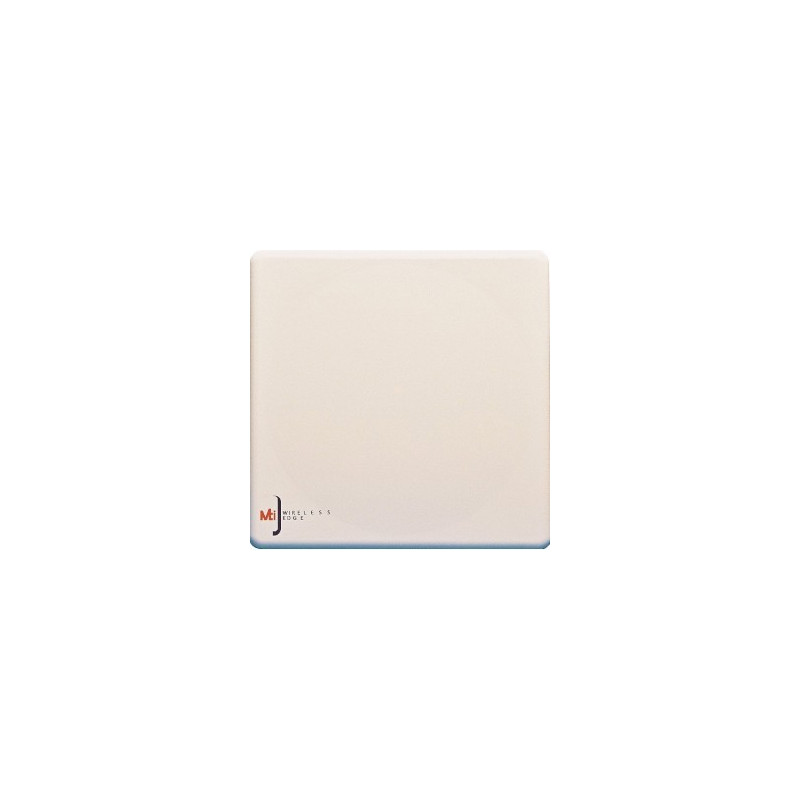

MTI Wireless Edge MT-464042/ND/B/P MTI 16dBi 65Deg 4x4 MU-MIMO 4.9-5.9GHz
$150.00
Tax included
MTI Wireless Edge MT-464042/ND/B/P MTI 16dBi 65Deg 4x4 MU-MIMO 4.9-5.9GHz ** SPECIFICALLY DESIGNED FOR USE WITH THE MIMOSA A5c **Electrical:REGULATORY COMPLIANCE RoHS, CE 0682FREQUENCY RANGE 4.9-5.9 GHzGAIN 16 dBi ± 0.5 dBVSWR 1.5 : 1 (typ), 1.7:1 (max)POLARISATION Double Dual Linear ± 45°-3dB ELEVATION BEAM-WIDTH 7º (typ)-3 dB AZIMUTH BEAM-WIDTH 65° (typ)ELEVATION SIDELOBE LEVEL -12 dB (typ.)F/B RATIO -40 dB (typ)CROSS POLARISATION -15 dB (typ)PORT TO PORT ISOLATION 20dB (typ)Mechanical:DIMENSIONS (LxWxD) 371 x 371 x 40mm (max)CONNECTOR 4 x N-Type FemaleWEIGHT 2 Kg (max)MOUNTING KIT MT-120018RADOME MATERIAL PlasticBASE PLATE MATERIAL Aluminium with chemical conversion coatingPOWER 6W (max)INPUT IMPEDANCE 50 (ohm)LIGHTNING PROTECTION DC GroundedAntenna Mounting Bracket Included
MTI Wireless Edge MT-464042/ND/B/P MTI 16dBi 65Deg 4x4 MU-MIMO 4.9-5.9GHz
** SPECIFICALLY DESIGNED FOR USE WITH THE MIMOSA A5c **
Electrical:
- REGULATORY COMPLIANCE RoHS, CE 0682
- FREQUENCY RANGE 4.9-5.9 GHz
- GAIN 16 dBi ± 0.5 dB
- VSWR 1.5 : 1 (typ), 1.7:1 (max)
- POLARISATION Double Dual Linear ± 45°
- -3dB ELEVATION BEAM-WIDTH 7º (typ)
- -3 dB AZIMUTH BEAM-WIDTH 65° (typ)
- ELEVATION SIDELOBE LEVEL -12 dB (typ.)
- F/B RATIO -40 dB (typ)
- CROSS POLARISATION -15 dB (typ)
- PORT TO PORT ISOLATION 20dB (typ)
Mechanical:
- DIMENSIONS (LxWxD) 371 x 371 x 40mm (max)
- CONNECTOR 4 x N-Type Female
- WEIGHT 2 Kg (max)
- MOUNTING KIT MT-120018
- RADOME MATERIAL Plastic
- BASE PLATE MATERIAL Aluminium with chemical conversion coating
- POWER 6W (max)
- INPUT IMPEDANCE 50 (ohm)
- LIGHTNING PROTECTION DC Grounded
- Antenna Mounting Bracket Included
Product information source: Streakwave product page.
