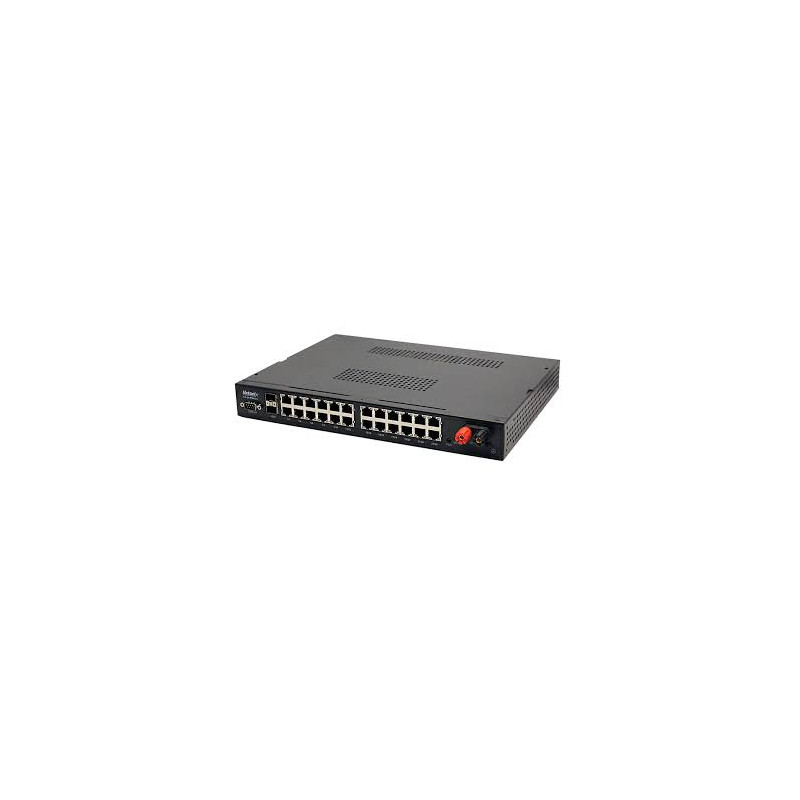

Netonix WS-26-400-IDC 26 Port 400W ISOLATED DC Power
Product Code: WS-26-400-IDC
This switch is designed to operate on negative or positive 36V-72V sites.
Does not allow monitoring of DC input voltage
NOTE: Optional 19" rack mount kits sold seperatly
Features:
Managed passive POE Switch
400 Watt ISOLATED DC power supply accepts 32V to 72V DC variable input while providing uninterrupted 24V and 48V POE
(24) Gbps POE Ports
(2) SFP Uplink Ports
Manufactured in North America
Standard Desktop / Wall mount
Optional 19” rack mount kit / DIN Rail
Dimensions 223 mm x 181 mm x 44 mm
Operating temperature -25 to 55°C (-13 to 131° F)
Serial console port
Passive PoE current sensors on each port
Software Features:
LAG – Port aggregation LACP/Static
STP / RSTP / MSTP (MSTP available with firmware v2.0)
Port mirroring and remote monitoring via Wireshark with CPSP
VLAN dot1Q/QinQ/Port Trunking
SNMP - complete statistical reporting
SMTP alerts - configurable
Bandwidth limiting per port
Ping watchdog per port
Scheduled port bouncing
Cable Diagnostics • Loop Protection
DHCP Snooping
IGMP Snooping
Flow Control - with back pressure
Storm Control
Multicast Filtering
Port Isolation
Auto TFTP Backup on Config Change
UDP - Ubiquiti Discovery Protocol
CDP - Cisco Discovery Protocol
Security - access control list and login tarpit
Product information source: Streakwave product page.
