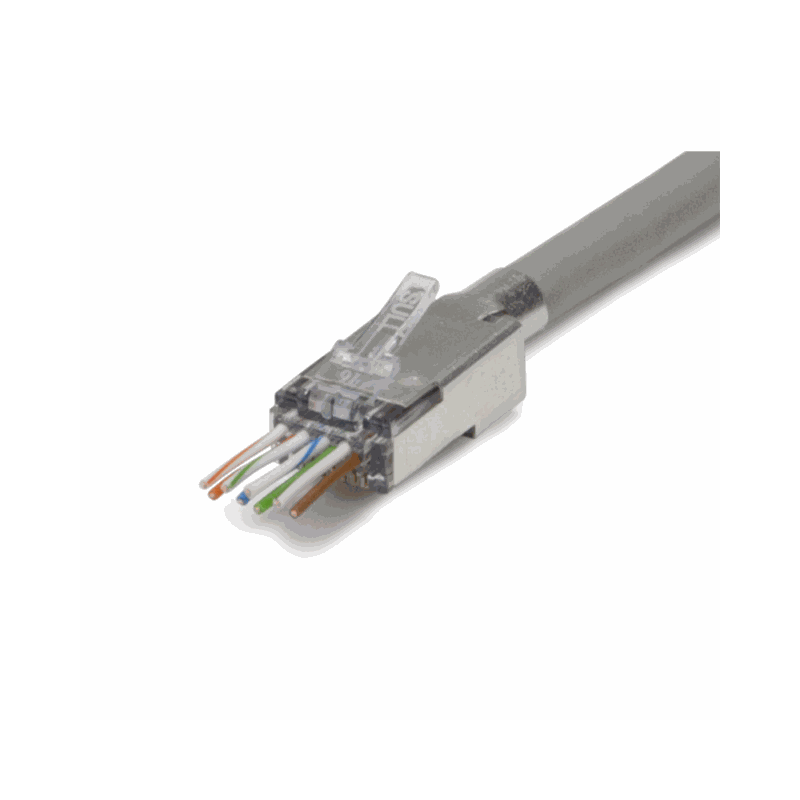

Platinum Tools 202051J ezEX44 STP External Ground 50pcs
$165.41
Tax included
Platinum Tools 202051J ezEX44 STP External Ground 50pcs This shielded ezEX-RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with CAT6 and is terminated with EXO Crimp Frame® and EXO-EX Die™ (100061C).Hi-Lo stagger to isolate each conductorSimple one piece/pass through design, no bars or linersShielded 5e/6/6A compliantInsulation Diameter (Conductor) - Size range: 0.039” – 0.044” (1.0 –1.12mm)Max Outer Diameter: 0.305” (7.75mm)50 micron gold plated contactsSolid or Stranded 24-22 AWGTAA, TIA, RoHS, UL & FCC compliantMade in the USA
Platinum Tools 202051J ezEX44 STP External Ground 50pcs
This shielded ezEX-RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with CAT6 and is terminated with EXO Crimp Frame® and EXO-EX Die™ (100061C).
Hi-Lo stagger to isolate each conductor
Simple one piece/pass through design, no bars or liners
Shielded 5e/6/6A compliant
Insulation Diameter (Conductor) - Size range: 0.039” – 0.044” (1.0 –1.12mm)
Max Outer Diameter: 0.305” (7.75mm)
50 micron gold plated contacts
Solid or Stranded 24-22 AWG
TAA, TIA, RoHS, UL & FCC compliant
Made in the USA
Product information source: Streakwave product page.
