Platinum Tools 100025C ezEX44 STP External Ground 25pcs
$96.00
Tax included
Platinum Tools 100025C ezEX44 STP External Ground 25pcsThis shielded ezEX-RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating.Hi-Lo stagger to isolate each conductorSimple one piece/pass through design, no bars or linersShielded 5e/6/6A compliantInsulation Diameter (Conductor) - Size range: 0.039” – 0.044” (1.0 –1.12mm)Max Outer Diameter: 0.305” (7.75mm)50 micron gold plated contactsSolid or Stranded 24-22 AWGTAA, TIA, RoHS, UL & FCC compliantMade in the USA
Platinum Tools 100025C ezEX44 STP External Ground 25pcs

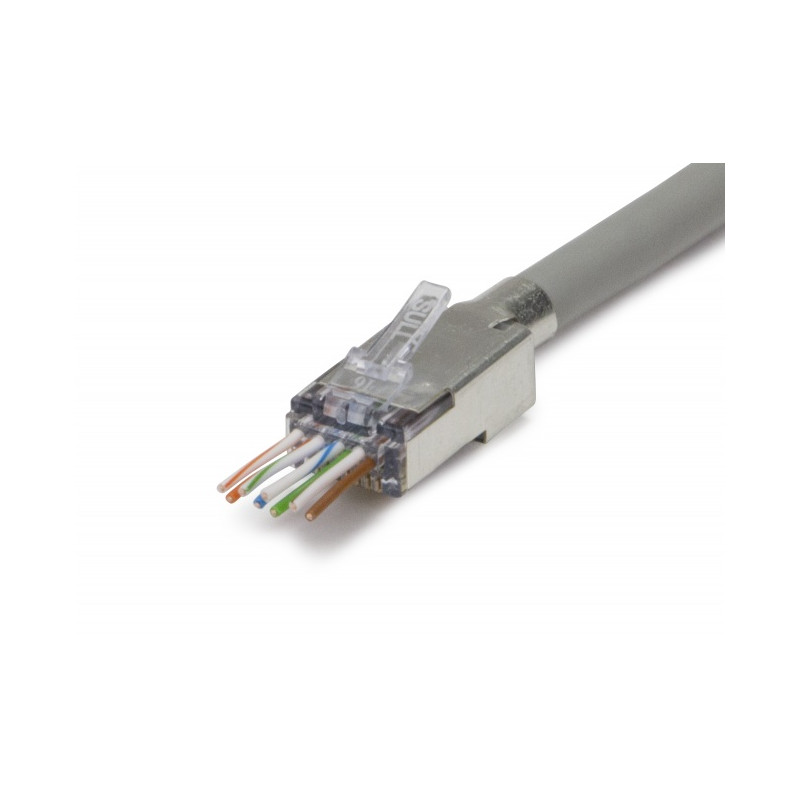

This shielded ezEX-RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating.
- Hi-Lo stagger to isolate each conductor
- Simple one piece/pass through design, no bars or liners
- Shielded 5e/6/6A compliant
- Insulation Diameter (Conductor) - Size range: 0.039” – 0.044” (1.0 –1.12mm)
- Max Outer Diameter: 0.305” (7.75mm)
- 50 micron gold plated contacts
- Solid or Stranded 24-22 AWG
- TAA, TIA, RoHS, UL & FCC compliant
- Made in the USA
