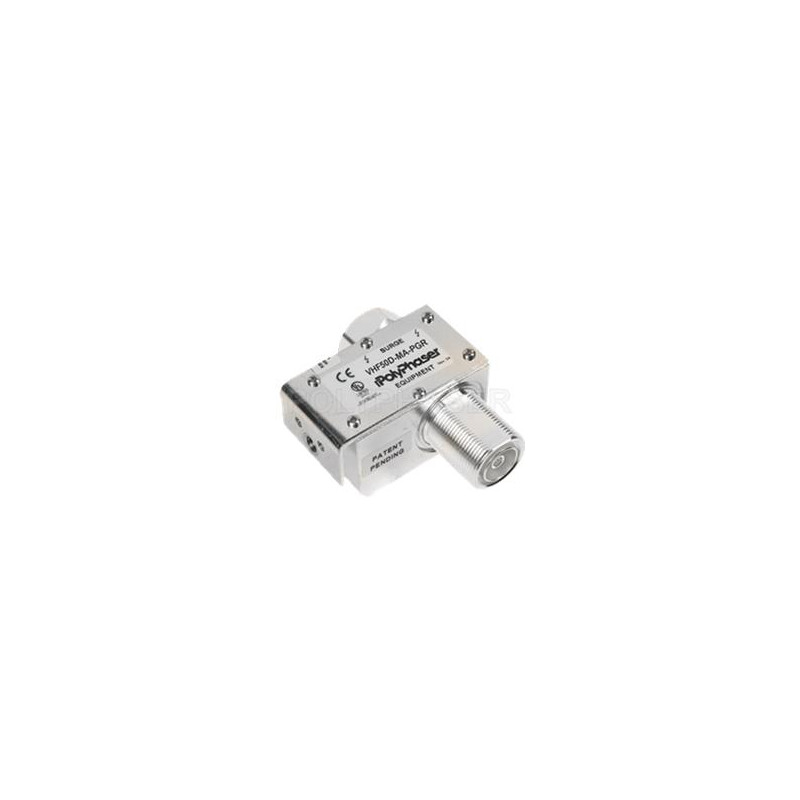

PolyPhaser VHF50D-MA-PGR 7/16 M/F Coaxial RF Surge Protector, 100MHz - 512MHz, DC Block, 750W, IP67, .5uJ, 20kA, Filter, Low PIM
search
  • PolyPhaser VHF50D-MA-PGR 7/16 M/F Coaxial RF Surge Protector, 100MHz - 512MHz, DC Block, 750W, IP67, .5uJ, 20kA, Filter, Low PIM
  • PolyPhaser VHF50D-MA-PGR 7/16 M/F Coaxial RF Surge Protector, 100MHz - 512MHz, DC Block, 750W, IP67, .5uJ, 20kA, Filter, Low PIM

PolyPhaser VHF50D-MA-PGR 7/16 M/F Coaxial RF Surge Protector, 100MHz - 512MHz, DC Block, 750W, IP67, .5uJ, 20kA, Filter, Low PIM

$359.00
Tax included

PolyPhaser VHF50D-MA-PGR 7/16 M/F Coaxial RF Surge Protector, 100MHz - 512MHz, DC Block, 750W, IP67, .5uJ, 20kA, Filter, Low PIM -150 dBc, Bracket Down, Hole MountVHF50ED-PGRImpedance 50 OhmConnector In Series 7/16 DINConnector In Gender MaleConnector Out Series 7/16 DINConnector Out Gender FemaleMinimum Frequency 100 MHzMaximum Frequency 512 MHzMaximum Input Power 750 WattsDirection Directional Throughput Energy 0.5 uJPolyPhaser VHF50D-MA-PGR 7/16 M/F Coaxial RF Surge Protector, 100MHz - 512MHz, DC Block, 750W, IP67, .5uJ, 20kA, Filter, Low PIM -150 dBc, Bracket Down, Hole Mount While this radio frequency lightning surge suppressor operates in a range of frequencies from 100MHz to 512MHz, it is supporting a power handling maximum of 750 Watts. RF surge protector VHF50D-MA-PGR from Poly...

Quantity

PolyPhaser VHF50D-MA-PGR 7/16 M/F Coaxial RF Surge Protector, 100MHz - 512MHz, DC Block, 750W, IP67, .5uJ, 20kA, Filter, Low PIM -150 dBc, Bracket Down, Hole Mount

VHF50ED-PGR

  • Impedance 50 Ohm

  • Connector In Series 7/16 DIN

  • Connector In Gender Male

  • Connector Out Series 7/16 DIN

  • Connector Out Gender Female

  • Minimum Frequency 100 MHz

  • Maximum Frequency 512 MHz

  • Maximum Input Power 750 Watts

  • Direction Directional

  • Throughput Energy 0.5 uJ

PolyPhaser VHF50D-MA-PGR 7/16 M/F Coaxial RF Surge Protector, 100MHz - 512MHz, DC Block, 750W, IP67, .5uJ, 20kA, Filter, Low PIM -150 dBc, Bracket Down, Hole Mount



While this radio frequency lightning surge suppressor operates in a range of frequencies from 100MHz to 512MHz, it is supporting a power handling maximum of 750 Watts. RF surge protector VHF50D-MA-PGR from PolyPhaser incorporates surge filter technology to provide protection for equipment at up to the max. power of 750W. Our coax surge protection device for RF is manufactured with a 7/16 DIN connection in and a 7/16 DIN out.

VHF50D-MA-PGR is constructed with a female gender for the input and female for the output. This M/F 7/16 DIN to 7/16 DIN surge protecting component for RF has a let-through energy of .5uJ. PolyPhaser protection device VHF50ED-PGR is designed with low passive intermodulation (PIM). This 7/16 DIN PIM RF surge protector is rated for -155 dBc. The coaxial lightning surge arrestor is IP rated, it has an IP67 rating.

PolyPhaser VHF50D-MA-PGR provides one of the largest varieties of RF / microwave surge protector devices available for same-day shipping. Our facilities ship 7/16 M/F coaxial RF surge protector, 100MHz - 512MHz, DC block, 750W, IP67, .5uJ, 20kA, filter, low PIM -155 dBc, bracket down, hole mount as well as the rest of our surge protection product line from in-stock inventory the same day as purchased. We support our customers with a sense of urgency while providing innovative lightning and surge protection solutions that ensure reliable operation of critical systems for a connected world.

Product information source: Streakwave product page.

PolyPhaser
VHF50D-MA-PGR
7 Items
