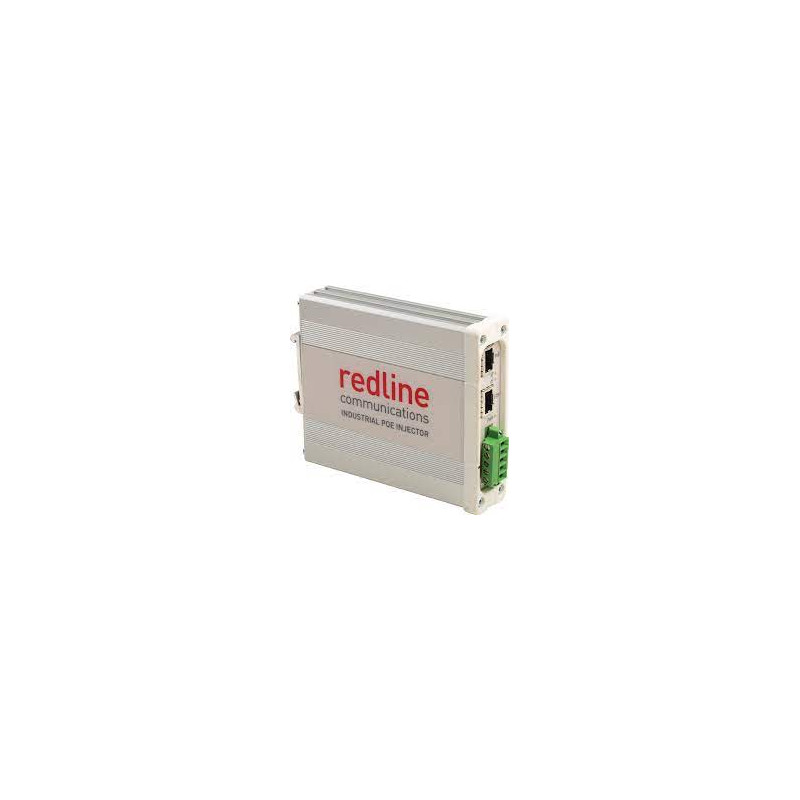

Redline PS-DCDC-POE-IND-01 Power Supply, DC PoE, 10-60VDC, Model RPM-POE-INJ-DC-DC GigE Midspan, I/P 30W, O/P 25W, 802.3af/at, D
search
  • Redline PS-DCDC-POE-IND-01 Power Supply, DC PoE, 10-60VDC, Model RPM-POE-INJ-DC-DC GigE Midspan, I/P 30W, O/P 25W, 802.3af/at, D
  • Redline PS-DCDC-POE-IND-01 Power Supply, DC PoE, 10-60VDC, Model RPM-POE-INJ-DC-DC GigE Midspan, I/P 30W, O/P 25W, 802.3af/at, D

Redline PS-DCDC-POE-IND-01 Power Supply, DC PoE, 10-60VDC, Model RPM-POE-INJ-DC-DC GigE Midspan, I/P 30W, O/P 25W, 802.3af/at, D

$1,399.00
Tax included

Redline Power Supply, DC PoE, 10-60VDC, GigE Midspan, I/P 30W, O/P 25W, 802.3af/at, DIN-mount, Required for high power RDL-3000 systemsThis industrial grade POE power injector is specifically designed to support deployment of Redline’s powerful machine-to-machine (M2M) wireless systems in the harsh industrial environment of off-grid, underserviced and isolated locations reliant primarily on reliable DC power.Purpose-built to meet the tough operating conditions of oil & gas, military, and utility applications, Redline’s PoE power-sourcing equipment (PSE) unit supports 12 / 24 / 48 VDC power systems.The durable aluminum shell, quality connectors, and high design tolerances guarantee reliable operation under adverse operating conditions including extremely high or low temperatures.TECHNICA...

Quantity

Redline Power Supply, DC PoE, 10-60VDC, GigE Midspan, I/P 30W, O/P 25W, 802.3af/at, DIN-mount, Required for high power RDL-3000 systems

This industrial grade POE power injector is specifically designed to support deployment of Redline’s powerful machine-to-machine (M2M) wireless systems in the harsh industrial environment of off-grid, underserviced and isolated locations reliant primarily on reliable DC power.

Purpose-built to meet the tough operating conditions of oil & gas, military, and utility applications, Redline’s PoE power-sourcing equipment (PSE) unit supports 12 / 24 / 48 VDC power systems.

The durable aluminum shell, quality connectors, and high design tolerances guarantee reliable operation under adverse operating conditions including extremely high or low temperatures.

TECHNICAL SPECIFICATION

  • Dual inputs are provided to accommodate redundant DC power options (e.g.A/B battery banks).

  • The PoE supports negative supply operation with TELCO -48 VDC wiring for installation in communications and power panels.

  • Interfaces RJ45 Jack Shielded Ports: 10/100Base-T(X) for PoE and ETH, surge protection on all wires.

  • LED Indicators: Power, PoE Mode Power

  • Connector: Screw down terminal Block x 1 with Redundant Power

  • IEEE Compliance 802.3 10BaseT 802.3u 100BaseTX 802.3af / 802.3at

  • Input Voltage 10 through to 60 VDC

  • Output Voltage 52 VDC +/- 3%

  • Output Power 30 Watts max. (25 Watts @ 12 VDC input)

  • Input to Output Isolation 2121 VDC min; 1500 VAC min

  • Interoperability Type 2 – Supply 30 W over two pairs

  • Powering Schemes Alternative B – Pairs 4/5 & 7/8

  • Input Voltage Protection Over-voltage and reverse polarity

  • DC Cable 12 - 16 AWG solid or stranded wire

  • Network Connection 10/100Base-T Ethernet (RJ-45)

  • Management Unmanaged

  • Operating Temp -40˚ to 75˚ C

  • Humidity 5% to 95% non-condensing

  • Enclosure Aluminum IP40 (1 mm objects)

  • Power Consumption >80% efficiency @ 21˚C

  • Compliance Safety1: CSA/UL C22.2 60950 to +75° C EMI: FCC Part 15 Subpart B Class A, EN 55022 CISPR22 Class A EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Shock1 : IEC 60068-2-27 Freefall1 : IEC 60068-2-32 Vibration1 : IEC 60068-2-6 Hazardous locations1 : UL1604, CSA C22.2/213 (Class I, Div. 2); EN60079-15 (Zone 2; Category 3), CE (ATEX)

  • Dimensions (WxHxD) 111.5 x 32.5 x 137 mm

  • Weight 360 g .
