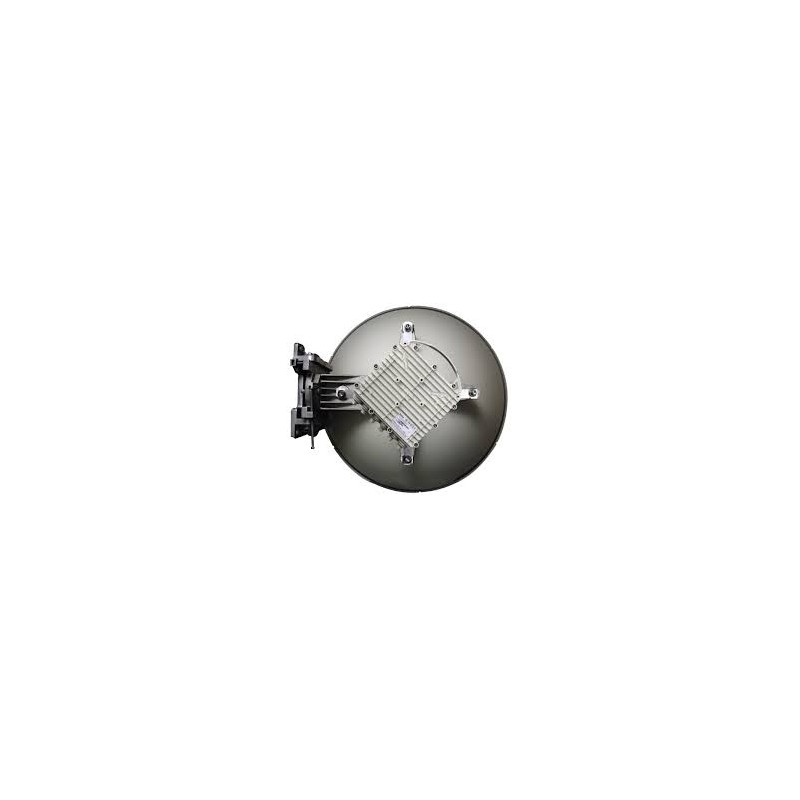

Siklu EH-ANT-2ft-DL5 EtherHaul™ 2 ft. antenna 70/80 & 5GHz (FCC/ETSI) and mounting kit, with X adaptor
search
  • Siklu EH-ANT-2ft-DL5 EtherHaul™ 2 ft. antenna 70/80 & 5GHz (FCC/ETSI) and mounting kit, with X adaptor
  • Siklu EH-ANT-2ft-DL5 EtherHaul™ 2 ft. antenna 70/80 & 5GHz (FCC/ETSI) and mounting kit, with X adaptor

Siklu EH-ANT-2ft-DL5 EtherHaul™ 2 ft. antenna 70/80 & 5GHz (FCC/ETSI) and mounting kit, with X adaptor

$2,089.65
Tax included

Siklu EH-ANT-2ft-DL5 EtherHaul™ 2 ft. antenna 70/80 & 5GHz (FCC/ETSI) and mounting kit, with X adaptorProduct Code: EH-ANT-2ft-DL5Siklu EH-ANT-2ft-B EtherHaul 2 ft. antenna (FCC/ETSI) and mounting kit, with X adaptor and RF adaptorDescription:Siklu EtherHaul 2 foot 70/80GHz 50dBi mmWave antenna (FCC/ETSI) and mounting kit, with X adaptor and RF adaptor.Siklu EtherHaul™ E-band ODUs support a variety of antennas depending on the intended application, from street level to roof top, from short to long reach. This document starts with the compatibility between ODUs and antennas, continues with the specifications and closes with the illustrations of the antennas.Features:Compatible with EH-1200T/TX, EH-1200F/FX, EH-2200F/FX, EH-2500F/FX, EH-5500FD, EH-8010FXSpecifications:Product Code:EH-ANT-...

Quantity
Last items in stock

Siklu EH-ANT-2ft-DL5 EtherHaul™ 2 ft. antenna 70/80 & 5GHz (FCC/ETSI) and mounting kit, with X adaptor


Product Code: EH-ANT-2ft-DL5


Siklu EH-ANT-2ft-B EtherHaul 2 ft. antenna (FCC/ETSI) and mounting kit, with X adaptor and RF adaptor


Description:

Siklu EtherHaul 2 foot 70/80GHz 50dBi mmWave antenna (FCC/ETSI) and mounting kit, with X adaptor and RF adaptor.

Siklu EtherHaul™ E-band ODUs support a variety of antennas depending on the intended application, from street level to roof top, from short to long reach. This document starts with the compatibility between ODUs and antennas, continues with the specifications and closes with the illustrations of the antennas.


Features:

Compatible with EH-1200T/TX, EH-1200F/FX, EH-2200F/FX, EH-2500F/FX, EH-5500FD, EH-8010FX


Specifications:

  • Product Code:EH-ANT-2ft-B

  • Compatibility: EH-1200T/TX, EH-1200F/FX, EH-2200F/FX, EH-2500F/FX, EH-5500FD, EH-8010FX

  • Frequency Range: 71 – 86 GHz

  • Regulatory Compliance: ETSI: EN 302 217-4-2 V1.5.1, Class 3, FCC: 47CFR101

  • Gain: 50 dBi +/- 2dB

  • 3 dB Beamwidth: 0.5 degree

  • Polarization: Linear Vertical / Horizontal

  • Input power: 10 W (max)

  • Interface: Circular waveguide E-band

  • Weight: 10.8Kg (23.8 lbs.)

  • Radome: ABS

  • Water Tightness: IP67

  • Temperature range: -55deg to +71deg C

  • Wind Speed Survival: 220km/h


Product information source: Streakwave product page.
