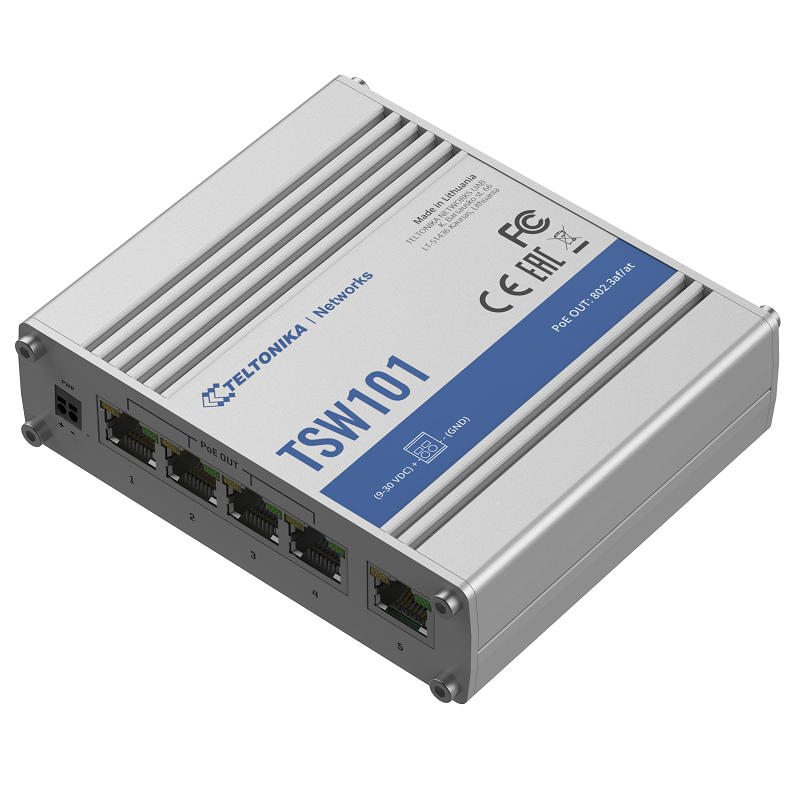

Teltonika TSW101 Unmanaged Automotive POE+ Switch DC input
$213.00
Tax included
Teltonika TSW101 Unmanaged Automotive POE+ Switch DC inputTeltonika 4+1 port gigabit unmanaged 9 - 30V DC in upscaling POE Switch 802.3af/at out, 60W power budget or 15W per port, 9V to 30V DC in, for solar and automotive applications, No PSU. TSW101 is Teltonika Networks’ first automotive-dedicated unmanaged switch.Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at PoE+ standards. A wide range of supported power supply voltages (9-30 VDC), and a compact size allow it to slot into many automotive applications.Classified as a power source equipment (PSE), this device enables power supply centralization - providing up to 30 watts per single port and maximum output power of 60 watts. 10/100/1000 Mbps Ethernet ports for streamlined, high-bandwidth s...
Teltonika TSW101 Unmanaged Automotive POE+ Switch DC input
Teltonika 4+1 port gigabit unmanaged 9 - 30V DC in upscaling POE Switch 802.3af/at out, 60W power budget or 15W per port, 9V to 30V DC in, for solar and automotive applications, No PSU. TSW101 is Teltonika Networks’ first automotive-dedicated unmanaged switch.
Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at PoE+ standards. A wide range of supported power supply voltages (9-30 VDC), and a compact size allow it to slot into many automotive applications.
Classified as a power source equipment (PSE), this device enables power supply centralization - providing up to 30 watts per single port and maximum output power of 60 watts. 10/100/1000 Mbps Ethernet ports for streamlined, high-bandwidth solutions.
Ideal for providing both: in-vehicle power and an Ethernet data connection simultaneously.
Features
Ideal for in-vehicle solutions
4 x PoE+ ports with 802.3af and 802.3at support
Low input Voltage 9-30 V power range for DC to DC PoE Conversion
This switch can be powered by 12 V or 24 V car battery, requiring no additional PSU
Rugged Aluminium housing
Product information source: Streakwave product page.
