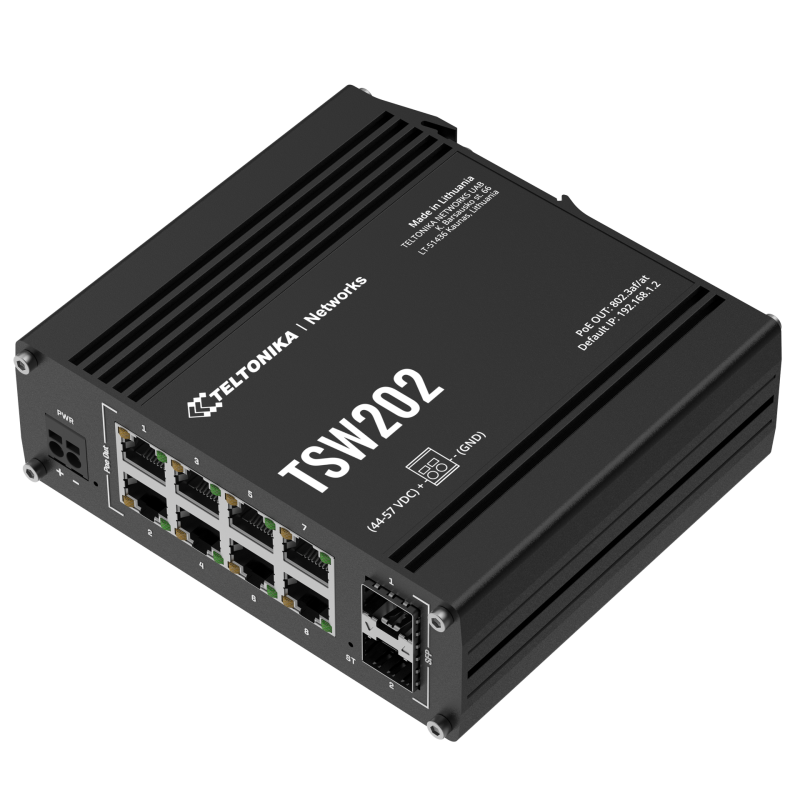

Teltonika TSW202 10 Port Industrial Managed PoE+ Layer 2 Switch with 8 Port PoE+ and 2 SFP slots, Layer3 Features PSU not includ

$340.00
Tax included

Teltonika TSW202 10 Port Industrial Managed PoE+ Layer 2 Switch with 8 Port PoE+ and 2 SFP slots, Layer3 Features (Power Supply Not Included)ETHERNETETHMulti-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossoverFibre2 x SFP portsIEEE 802.3 series standards802.3i, 802.3u, 802.3ab, 802.3x, 802.3zPOE OUTPoE portsPort 1 - 8PoE standards802.3af and 802.3at Alternative BPoE Max Power per Port (at PSE)30 WTotal PoE Power Budget (at PSE)240 WMaximum Ethernet cable length100 mSERVICESEtherNet/IPYesPROFINET (class B)YesSNMP V2, V3YesLLDPYesNetwork Management802.1p class of service, 802.1x port-based network access control, 802.1Q VLANNETWORKMRPMRP client role, MRP manager roleL2 featuresLoop protection, Forwarding table, VLAN, STP/RSTPDHCPDHCP server, DHCP client, DHCP st...

Quantity
Last items in stock

Teltonika TSW202 10 Port Industrial Managed PoE+ Layer 2 Switch with 8 Port PoE+ and 2 SFP slots, Layer3 Features (Power Supply Not Included)

ETHERNET

  • ETH

    Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover

  • Fibre

    2 x SFP ports

  • IEEE 802.3 series standards

    802.3i, 802.3u, 802.3ab, 802.3x, 802.3z

POE OUT

  • PoE ports

    Port 1 - 8

  • PoE standards

    802.3af and 802.3at Alternative B

  • PoE Max Power per Port (at PSE)

    30 W

  • Total PoE Power Budget (at PSE)

    240 W

  • Maximum Ethernet cable length

    100 m

SERVICES

  • EtherNet/IP

    Yes

  • PROFINET (class B)

    Yes

  • SNMP V2, V3

    Yes

  • LLDP

    Yes

  • Network Management

    802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN

NETWORK

  • MRP

    MRP client role, MRP manager role

  • L2 features

    Loop protection, Forwarding table, VLAN, STP/RSTP

  • DHCP

    DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards

  • Port Settings

    Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring

  • L3 Features

    Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

SECURITY

  • Authentication

    PAM — preshared key, Radius & TACACS+, IP & login attempts block

QOS

  • QOS

    Port priority, DSCP priority, 802.1p priority, TOS

  • Scheduling method

    SP/WFQ/WRR

  • Bandwidth control

    Rate limiting, storm control

  • Traffic Shaper

    Port-based shaping

DIAGNOSTICS

  • Tools

    Cable diagnostic, ping, traceroute, nslookup

  • Ping reboot

    Capability to restart PoE in a specific port

API

  • Teltonika Networks Web API (beta) support

    Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

SYSTEM CHARACTERISTICS

  • RAM

    128MB, DDR3

  • FLASH storage

    16 MB serial flash

FIRMWARE / CONFIGURATION

  • WEB UI

    Update FW from file, check FW on server, configuration profiles, configuration backup

  • FOTA

    Update FW

  • RMS

    Update FW/configuration for multiple devices at once

  • Keep settings

    Update FW without losing current configuration

FIRMWARE CUSTOMISATION

  • Operating system

    WitchOS (OpenWrt based Linux OS)

  • Supported languages

    Busybox shell, Lua, C, C++

  • Development tools

    SDK package with build environment provided

PERFORMANCE SPECIFICATIONS

  • Bandwidth (Non-blocking)

    20 Gbps

  • Forwarding rate

    14.88 Mpps

  • Packet buffer

    512 KB

  • MAC address table size

    8K entries

  • Jumbo frame support

    10000 bytes

POWER

  • Connector

    2-pin industrial DC power socket

  • Input voltage range

    7 – 57 VDC

  • PoE-out input voltage range

    44 – 57 VDC

  • Power consumption

    Idle: < 3 W / Max: 8 W / PoE Max: 248 W

PHYSICAL INTERFACES

  • Ethernet

    8 x RJ45 ports, 10/100/1000 Mbps

  • Fibre

    2 x SFP ports

  • Status LEDs

    1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs

  • Power

    1 x 2-pin industrial DC power socket

  • Reset

    Software reset button

  • Other


    1 x Grounding screw

PHYSICAL SPECIFICATION

  • Casing material

    Anodized aluminum housing and panels

  • Dimensions (W x H x D)

    132 x 44.2 x 122.2 mm

  • Weight

    610 g

  • Mounting options

    Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)

OPERATING ENVIRONMENT

  • Operating temperature

    -40 °C to 75 °C

  • Operating humidity

    5% to 95% non-condensing

  • Ingress Protection Rating

    IP30

REGULATORY & TYPE APPROVALS

  • Regulatory

    CE, UKCA, RCM, ANRT, FCC, IC, CB, NBTC, PROFINET, CITC, RoHS, REACH, WEEE

EMC EMISSIONS & IMMUNITY

  • Standards

    EN 55032:2015 + A11:2020 + A1:2020

    EN 55035:2017 + A11:2020

    EN IEC 61000-3-2: 2019 + A1:2021

    EN 61000-3-3: 2013 + A1:2019 + A2:2021

  • ESD

    EN 61000-4-2:2009

  • Radiated Immunity

    EN IEC 61000-4-3:2020

  • EFT

    EN 61000-4-4:2012

  • Surge Immunity (AC Mains Power Port)

    EN 61000-4-5:2014 + A1:2017

  • CS

    EN 61000-4-6:2014

  • DIP

    EN 61000-4-11:2020

SAFETY

  • Standards

    CE: EN IEC 62368-1:2020 + A11:2020

    RCM: AS/NZS 62368.1:2022

    CB: IEC 62368-1:2018

Product information source: Streakwave product page.
