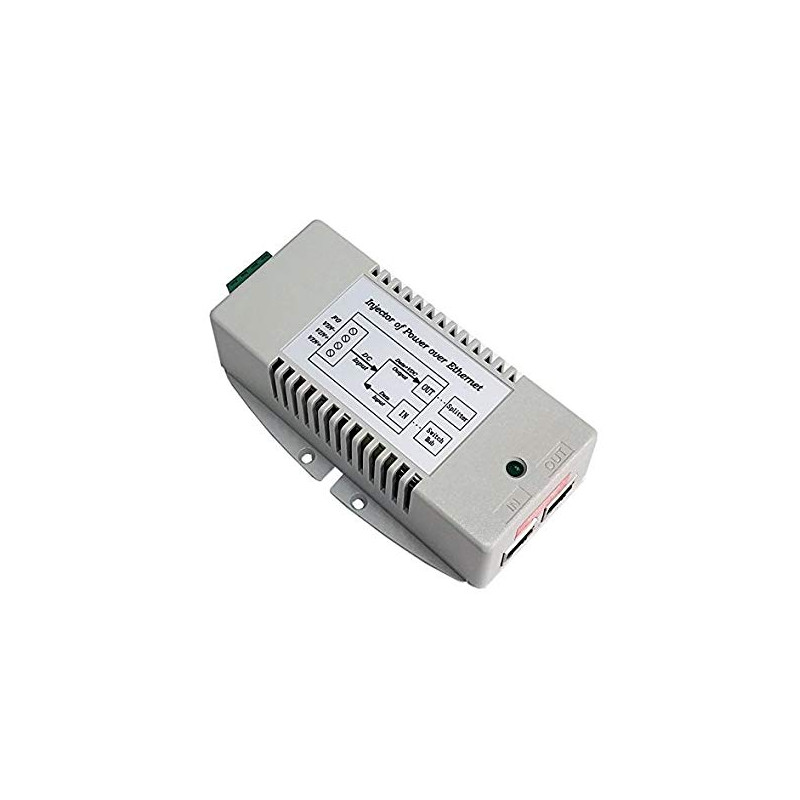

Tycon Power TP-DCDC-1224G-4P 9-36VDC IN 24VDC 4 Pair POE Out suit AF-5XHD
$165.00
Tax included
Tycon Power TP-DCDC-1224G-4P 9-36VDC IN 24VDC 4 Pair POE Out suit AF-5XHD Tycon Power TP-DCDC-1224G-4P is a Gigabit DC to DC converter, with an output power of up to 24W. It features 4 pair Passive Power over Ethernet from a 12-24V source.TP-DCDC-1224G-4P is a low cost and high efficiency solution for those requiring 24VDC 4-pair Passive Power over Ethernet from a 12VDC or 24VDC voltage source like a battery or a system. It has an integrated 4 pair PoE injector to apply the power and data output to the CAT5 cable. It has two inputs for connecting 2 power sources, like a primary and backup source.Product Features: Input Voltage 9-36VDC 24V Gigabit Passive 4 Pair PoE Output Dual Inputs for Connecting 2 Power Sources Integrated 10/100/1000MB PoE Sources High Power up to 24W Short Circuit, ...
Tycon Power TP-DCDC-1224G-4P 9-36VDC IN 24VDC 4 Pair POE Out suit AF-5XHD
Tycon Power TP-DCDC-1224G-4P is a Gigabit DC to DC converter, with an output power of up to 24W. It features 4 pair Passive Power over Ethernet from a 12-24V source.
TP-DCDC-1224G-4P is a low cost and high efficiency solution for those requiring 24VDC 4-pair Passive Power over Ethernet from a 12VDC or 24VDC voltage source like a battery or a system. It has an integrated 4 pair PoE injector to apply the power and data output to the CAT5 cable. It has two inputs for connecting 2 power sources, like a primary and backup source.
Product Features:
- Input Voltage 9-36VDC
- 24V Gigabit Passive 4 Pair PoE Output
- Dual Inputs for Connecting 2 Power Sources
- Integrated 10/100/1000MB PoE Sources
- High Power up to 24W
- Short Circuit, Over Current and Reverse/Over Voltage Protect
- High Temperature Operation to 70°C
- Built-in Low Battery Disconnect and Surge Protection
Product Applications:
- 12/24V Battery Systems, Vehicle Applications
- UBNT AirFiber X
- Wireless Access Points and Client Devices
Product Specifications:
- DC Input Voltage: 9 - 36VDC, Input / Output is Isolated
- DC Input Connector: Removable Screw Type Compression Wire Terminal (12 AWG Max)
- DC Output Voltage: 24V (Passive) 4 Pair Power
- Data In & Data/PoE Output Connector: RJ45 (shielded)
- Output Current (max): 1A
- Output Power (max): 24W
- Low Voltage Disconnect / Reconnect: Disconnect at 8.9V, Reconnect at 9.02V
- Efficiency (min): 80%
- Line Regulation: 1%
- Load Regulation: 5%
- Ripple: 1%
- Noise: 1%
- LED Operation: RED = Input Power On / Green = Output Connected
- Surge Protection (IEC 6100-4): 15kV (Air), 8kV (Contact), 20A (8/20us) Lightning
- EMC Standards: FCC Class B EN55022 Class B
- Safety Standards: UL1950, CSA 22.2 &TUV EN60950
- Operating Temperature: -40 to 80°C (-40 to 176°F)
- Operating Humidity: 5 to 90%
- Storage Temperature: -40 to 80°C (-40 to 176°F)
- Dimensions: 125 x 75 x 38mm (4.9 x 3 x 1.5")
- Weight: 300g (10.6oz)
- Warranty: 1 Year
Product information source: Streakwave product page.
