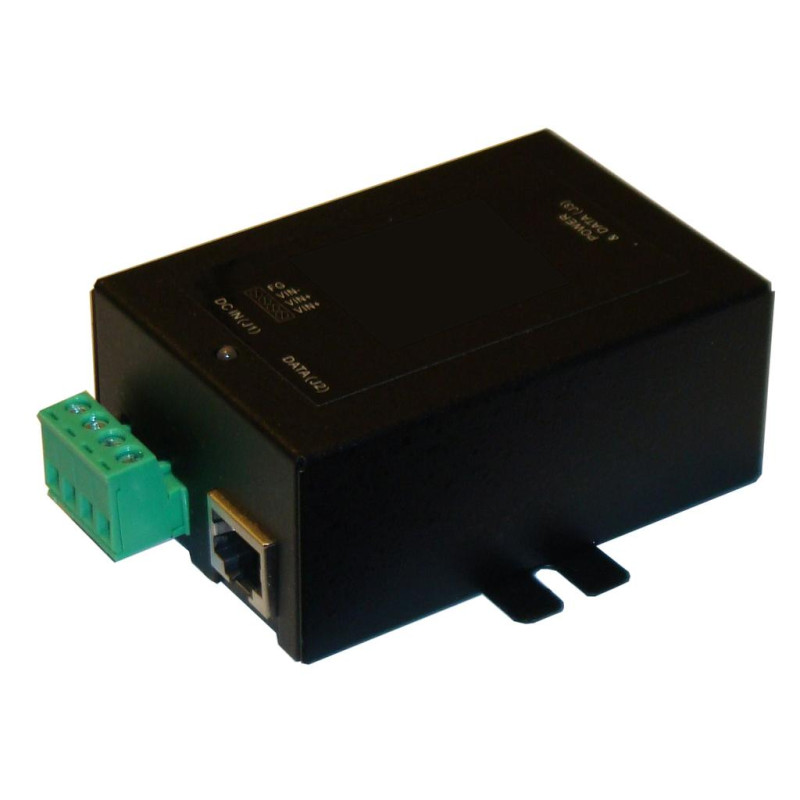

Tycon Power TP-DCDC-1248-M Metal 9-36VDC IN 48VDC OUT 20W DC to DC POE
$139.00
Tax included
Tycon Power TP-DCDC-1248-M Metal 9-36VDC IN 48VDC OUT 20W DC to DC POE Industrial Strength Metal Enclosure Tycon Power TP-DCDC-1248-M DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 48VDC Power Over Ethernet voltage from a 12 or 24V battery system. They have an integrated POE injector to apply the regulated 48VDC to the CAT5 Ethernet cable. The input voltage must be between 9VDC and 36VDC.The Tycon Power TP-DCDC-1248-M accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack.They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-).They have various protections for surge, short circuit and overload. The units have power output of 20W.Tycon Power TP-DCD...
Tycon Power TP-DCDC-1248-M Metal 9-36VDC IN 48VDC OUT 20W DC to DC POE Industrial Strength Metal Enclosure
Tycon Power TP-DCDC-1248-M DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 48VDC Power Over Ethernet voltage from a 12 or 24V battery system.
They have an integrated POE injector to apply the regulated 48VDC to the CAT5 Ethernet cable. The input voltage must be between 9VDC and 36VDC.
The Tycon Power TP-DCDC-1248-M accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack.
They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-).
They have various protections for surge, short circuit and overload. The units have power output of 20W.
Tycon Power TP-DCDC-1248-M Features:
- Input Voltage 9-36VDC; Output 48VDC
- Integrated POE Inserter
- High Power 20W
- Short Circuit, Over Current and Over Voltage Protection
- High Temperature Operation
- Removable Wire Terminal Input for up to 12AWG wires
Dimensions: 85mm x 76mm x 36mm
Weight: 134g
Product information source: Streakwave product page.
