Features

• DC to DC Converter
• Input Voltage 12VDC (Range 10-15VDC)
• 56VDC Passive PoE Output
• Dual Inputs for Connecting 2 Power Sources
• Integrated 10/100/1000MB PoE Inserter
• High Power up to 50W
• Low Self Consumption Power
• Short Circuit, Over Current and Reverse/Over Voltage Protect
• High Temperature Operation
• Compact Size – Maximize Available Space
• I.T.E. Power Supply, UL Listed

Applications

• 12V Battery Systems, Vehicle Applications
• Wireless Access Points and Client Devices
• IP Phone and Security Camera Systems

Description

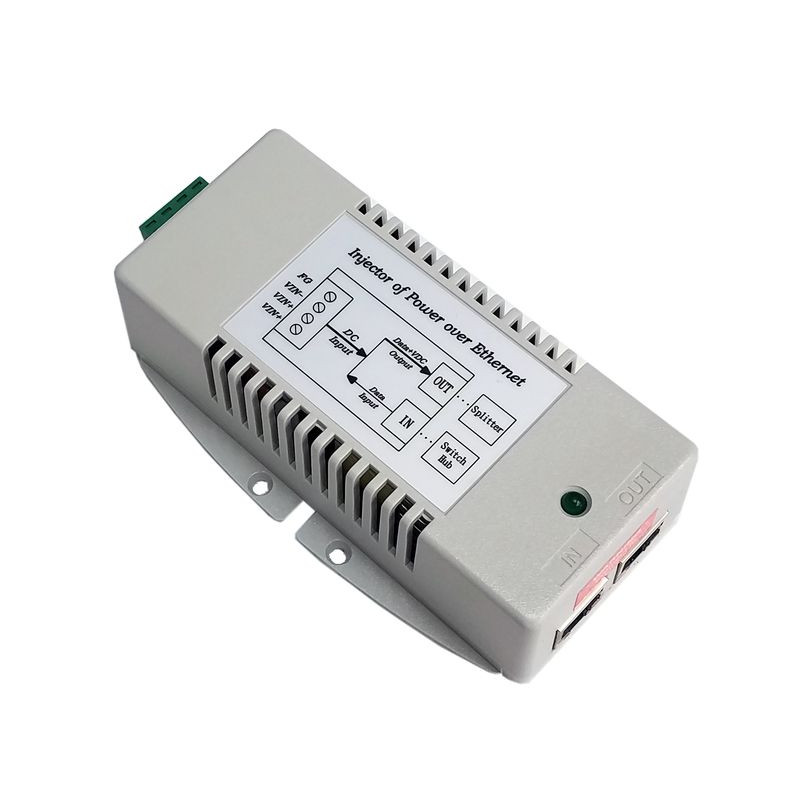

The TP-DCDC-1248G-HP DC to DC Converter from Tycon Power offers a cost-effective and efficient solution for delivering Passive Power over Ethernet from a 12VDC source, like a battery system or vehicle. It integrates a PoE injector to deliver both power and data over CAT5/6 Ethernet cables. The output voltage is regulated and protected, ensuring stable performance.

With two common (-) and two (+) inputs, the TP-DCDC-1248G-HP allows connection of two power sources, such as a primary and backup. This redundancy ensures that the device remains operational even if one power source fails, providing an added layer of reliability. It also features robust surge, short circuit, and overload protections, ensuring durability and safety in various applications. Both the input and output are isolated, enhancing security and flexibility in installation.

The TP-DCDC-1248G-HP handles gigabit data via a shielded RJ45 jack, providing both gigabit data-out and PoE power through the shielded RJ45 output jack. It efficiently powers devices through Ethernet pins 4,5 (V+) and 7,8 (V-). With up to 50W of power output, this unit delivers reliable, uninterrupted power while protecting against surge, short circuit, and overload.

In addition to its technical specifications, the TP-DCDC-1248G-HP is designed with ease of use and installation in mind. Its compact dimensions of 125 x 75 x 38mm (4.9 x 3 x 1.5in) and lightweight construction at 255g (9oz) make it an ideal choice for integration into existing systems. The device is particularly well-suited for use in industrial environments, telecommunications, remote monitoring systems, and security installations where consistent power supply and data transmission are critical.
