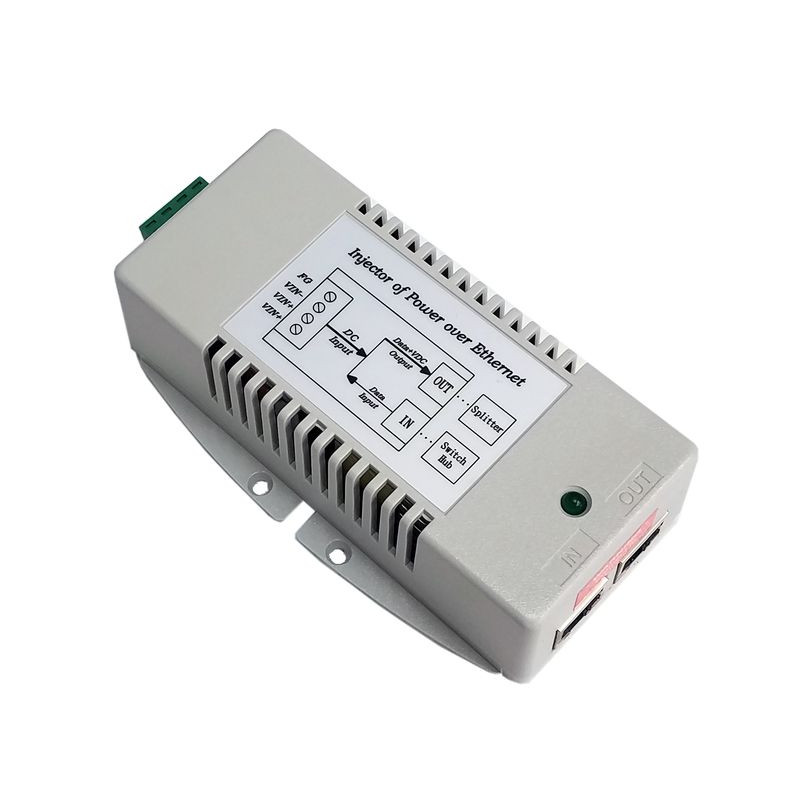

Tycon Power TP-DCDC-2448GD-HP Gigabit 18-36VDC IN 56VDC OUT 50W Hi Power 802.3af/at
$179.00
Tax included
Tycon Power TP-DCDC-2448GD-HP Gigabit 18-36VDC IN 56VDC OUT 35W Hi Power 802.3af/atThe TP-DCDC-2448GD-HP DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 35W 802.3af/at Power Over Ethernet voltage from a 18-36VDC battery system. The Tycon Power TP-DCDC-2448GD-HP have an integrated Gigabit Compatible 802.3af/at POE injector to apply the regulated 56VDC to the CAT5 Ethernet cable. Tycon Power TP-DCDC-2448GD-HP accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-).They have various protections for surge, short circuit and overload. The units have power output of 35W.Tycon Power TP-DCDC-2448GD-HP...
Tycon Power TP-DCDC-2448GD-HP Gigabit 18-36VDC IN 56VDC OUT 35W Hi Power 802.3af/at
The TP-DCDC-2448GD-HP DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 35W 802.3af/at Power Over Ethernet voltage from a 18-36VDC battery system.
The Tycon Power TP-DCDC-2448GD-HP have an integrated Gigabit Compatible 802.3af/at POE injector to apply the regulated 56VDC to the CAT5 Ethernet cable.
Tycon Power TP-DCDC-2448GD-HP accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-).
They have various protections for surge, short circuit and overload. The units have power output of 35W.
Tycon Power TP-DCDC-2448GD-HP Features:
- Input Voltage 18-36VDC; Output 56VDC 802.3af/at
- Integrated POE Inserter
- High Power 35W
- Short Circuit, Over Current and Over Voltage Protection
- High Temperature Operation
- Removable Wire Terminal Input for up to 12AWG wires
Dimensions: 85mm x 76mm x 36mm
Weight: 134g
Product information source: Streakwave product page.
