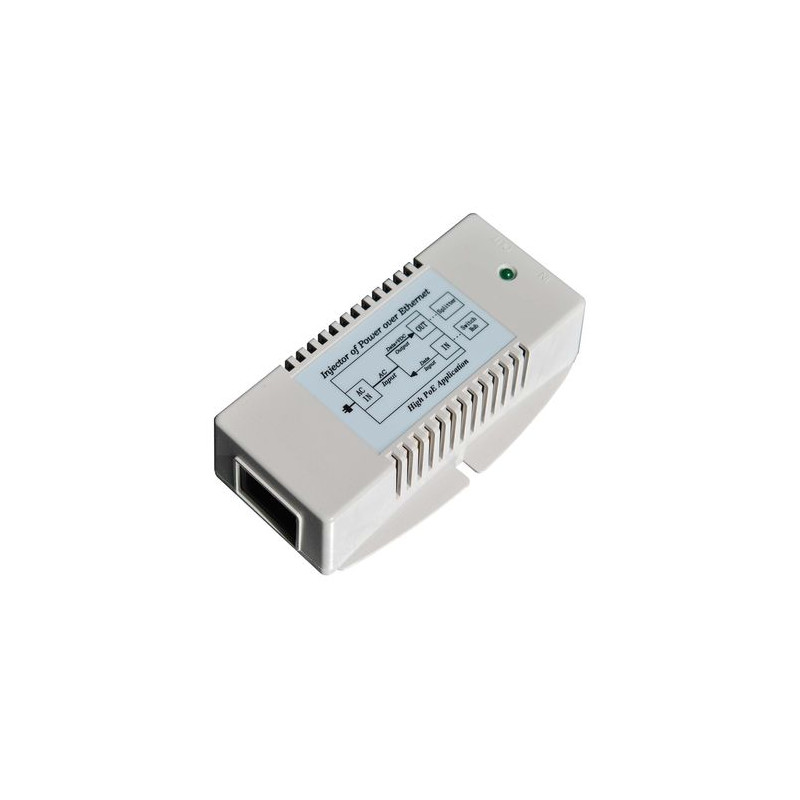

Tycon Power TP-POE-HP-24G 24V 36W High Power Gigabit PoE Power Source
$133.53
Tax included
Tycon Power TP-POE-HP-24G 24V 36W High Power Gigabit PoE Power Source Features:Remotely Power Equipment thru CAT5 Cable up to 100mAutoranging Switching Power SupplyShort Circuit, Over Current and Over Voltage ProtectionBuilt in surge protectionHigh Temperature Operation to 60°CCompact size Floor / Desktop / Wall MountCE/FCC/UL/CB ApprovedApplications:Wireless Access Points and Client DevicesIP Phone and Security Camera Systems24V 36W Gigabit High Power Passive PoE Power Inserter, Surge ProtectedThe TP-POE-HP-24G High PoE Power Source offered by Tycon Power Systems is a quality power injector providing years of reliable operation even in the toughest conditions.It accepts Gigabit data-in on a shielded RJ45 Jack and provides Gigabit data-out and power on a shielded RJ45 output jack. They ...
Tycon Power TP-POE-HP-24G 24V 36W High Power Gigabit PoE Power Source
Features:
Remotely Power Equipment thru CAT5 Cable up to 100m
Autoranging Switching Power Supply
Short Circuit, Over Current and Over Voltage Protection
Built in surge protection
High Temperature Operation to 60°C
Compact size Floor / Desktop / Wall Mount
CE/FCC/UL/CB Approved
Applications:
Wireless Access Points and Client Devices
IP Phone and Security Camera Systems
24V 36W Gigabit High Power Passive PoE Power Inserter, Surge Protected
The TP-POE-HP-24G High PoE Power Source offered by Tycon Power Systems is a quality power injector providing years of reliable operation even in the toughest conditions.
It accepts Gigabit data-in on a shielded RJ45 Jack and provides Gigabit data-out and power on a shielded RJ45 output jack. They work by supplying power to the remote device on the Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet).
The TP-POE-HP are autoranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply 5% regulated 24V DC voltage at 36W on the output. They have various protections for surge, short circuit and overload.
Dimensions: 125 x 75 x 38mm (4.9 x 3 x 1.5in)
Weight: 300g (10.6oz)
Product information source: Streakwave product page.
