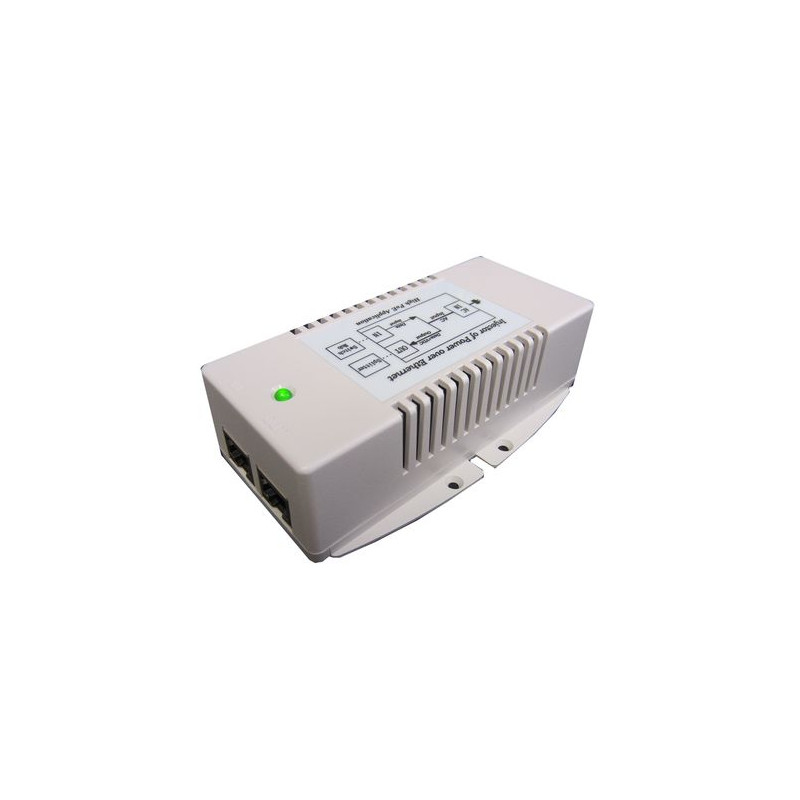

Tycon Power TP-POE-HP-48GDx2 110/220VAC 25W Dual PoE Injector - With AU Power Cable

Tycon Power TP-POE-HP-48GDx2 110/220VAC 25W Dual PoE Injector - With AU Power Cable

Part Number: TP-POE-HP-48GDX2

100-240VAC Autoranging IN. 2 Port Dual 802.3at Gigabit PoE Injector. Surge Protected. AU Power Cord

Features

• • Input Voltage 90-264VAC 47-63hz

• • Dual 802.3af/at outputs

• • High Power Output to 70W

• • Surge Protected to 15kV

• • Dual DC Inputs for Connecting 2 Power Sources

• • 10/100/1000 Data Compatibility, Shielded Connectors

• • Short Circuit, Over Current and Reverse/Over Voltage Protection

• • Industrial Temperature Range, DIN Rail Mountable

Applications

• • 110/220VAC Backup Power Systems

• • Power a Camera and Wireless using a single PoE Injector

• • Power a Wireless AP and Backhaul using a single PoE injector

• • PoE Lighting Applications

The TP-DC-HP-48GDX2 is a unique high power PoE injector with Dual 802.3af/at compatible outputs. This means that two devices can be powered from a single PoE injector. The data path between the devices is handled by the injector so no PoE switch is required.

This model runs on 110/220VAC grid power. The total combined output is up to 50W.

They have two DC inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for short circuit, overload and surges caused by ESD or lightning. The built-in surge protection protects sensitive connected devices from damage due to surges on data and PoE lines. All 8 wires are protected.

The input voltage and output voltage are isolated to avoid any grounding or negative voltage issues.
