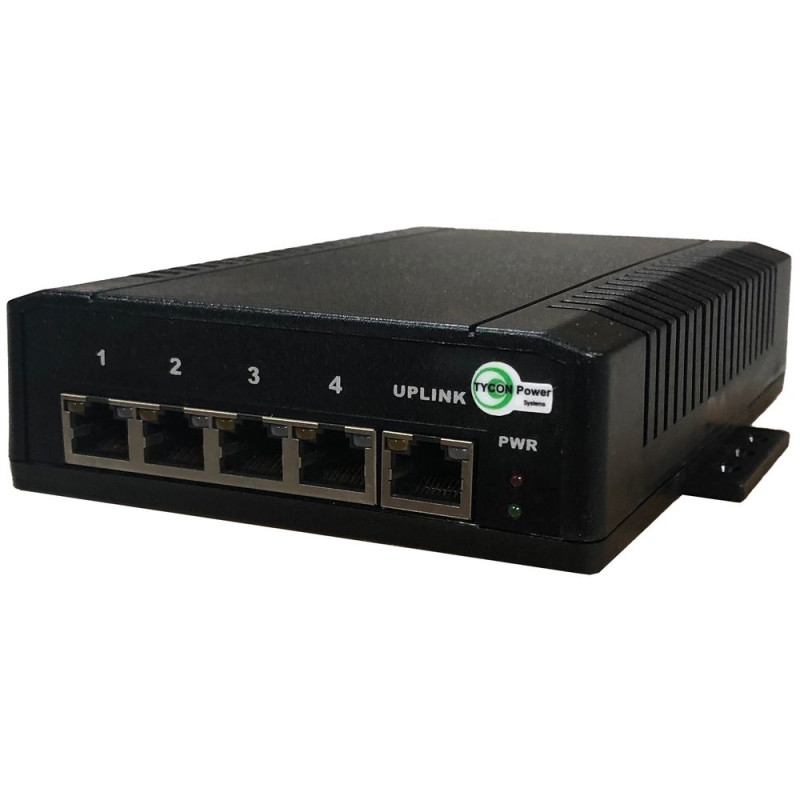

Tycon Power TP-SW5G 5 port HP POE Gigabit switch w/ 48V 120W PS IEEE 802.3at/af
$500.75
Tax included
Tycon Power TP-SW5G-D 5 port POE Gigabit Switch at/af 42-57vDCProduct Code: TP-SW5G-DThe SW5 Series Power over Ethernet (PoE) switches offered by Tycon Power® are fully automatic high speed 5 port Ethernet switches with up to 2A of PoE power per port.IEEE802.3af/at Compliant 48VDC 10/100/1000MB PoE Switch. Switch accepts 48VDC power via a wire terminal connector on the back of the Switch or via 48VDC PoE into the 802.3af/at compliant uplink port (90W max). 35W per port.On the universal voltage models (“-NC”) the PoE output voltage = the input voltage so it is universal in its application. The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device.Features:High Power 10/100 and 1000Mb (“G”) PoE SwitchRemotely Power Equipment thru CAT5 Cable up...
Tycon Power TP-SW5G-D 5 port POE Gigabit Switch at/af 42-57vDC
Product Code: TP-SW5G-D
The SW5 Series Power over Ethernet (PoE) switches offered by Tycon Power® are fully automatic high speed 5 port Ethernet switches with up to 2A of PoE power per port.
IEEE802.3af/at Compliant 48VDC 10/100/1000MB PoE Switch. Switch accepts 48VDC power via a wire terminal connector on the back of the Switch or via 48VDC PoE into the 802.3af/at compliant uplink port (90W max). 35W per port.
On the universal voltage models (“-NC”) the PoE output voltage = the input voltage so it is universal in its application. The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device.
Features:
High Power 10/100 and 1000Mb (“G”) PoE Switch
Remotely Power Equipment thru CAT5 Cable up to 100m
Up to 2A/35W per Port
Built-in Surge Protection
Automatic MDI/MDI-X Crossover
Automatic Speed and Duplex Sensing
Compact Size
High Temperature Operation
CE and FCC Certification
I.T.E. Power Supply, UL Listed
Applications:
Wireless Access Points and Client Devices
IP Phone and Security Camera Systems
Power multiple devices from 1 data cable
Product information source: Streakwave product page.
