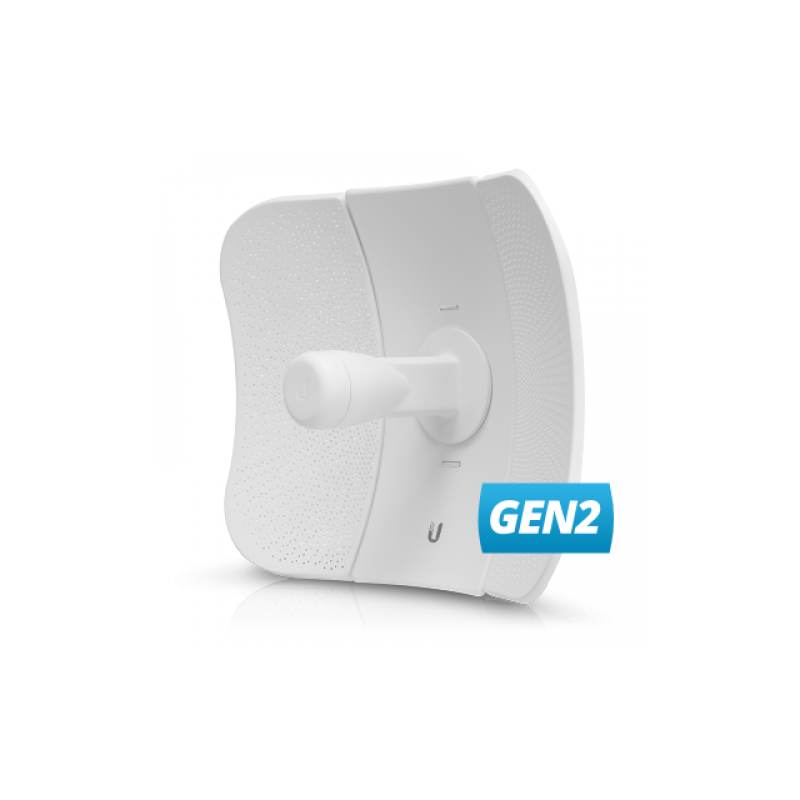

Ubiquiti LBE-5AC-LR 5GHz LiteBeam AC Gen2 Long Range

Ubiquiti LBE-5AC-LR 5GHz LiteBeam AC Gen2 Long Range

Ubiquiti LiteBeam 5AC Long Range is an affordable airMAX AC CPE designed for long-distance applications. The LBE-5AC-LR features a larger reflector size and elevation adjustment (azimuth is adjusted by rotation around the pole).

Features:

• Improved Radio Design

• Improved Mounting

• Improved Surge Protection

• Management WiFi Radio/UISP mobile app

• AirOS 8

Mechanical:

• Dimensions: 512 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17")

• Weight Without Mount: 1.360 kg (2.998 lb)

• With Mount: 1.735 kg (3.825 lb)

• Enclosure Materials: Aluminum, Plastic

• Mounting: Pole-Mounting Kit (Included)

• Wind Loading: 550 N at 200 km/h (123.6 lbf at 125 mph)

• Wind Survivability: 200 km/h (125 mph)

Hardware:

• Networking Interface: (1) 10/100/1000 Ethernet Port

• Processor: MIPS 74Kc

• Memory: 64 MB DDR2

• Power Supply: 24V, 0.3A Gigabit PoE Adapter (Included)

• Max. Power Consumption: 7W

• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

• Supported Voltage Range: 24V ± 10%

• Gain: 26 dBi

• LEDs: Power, Ethernet

• Channel Sizes: PtP Mode: 10/20/30/40/50/60/80 MHz

• PtMP Mode: 10/20/30/40 MHz

• ESD/EMP Protection: ± 24 kV Contact / Air

• Operating Temperature: -40 to 70° C (-40 to 158° F)

• Operating Humidity: 5 to 95% Noncondensing

• Certifications: CE, FCC, IC
