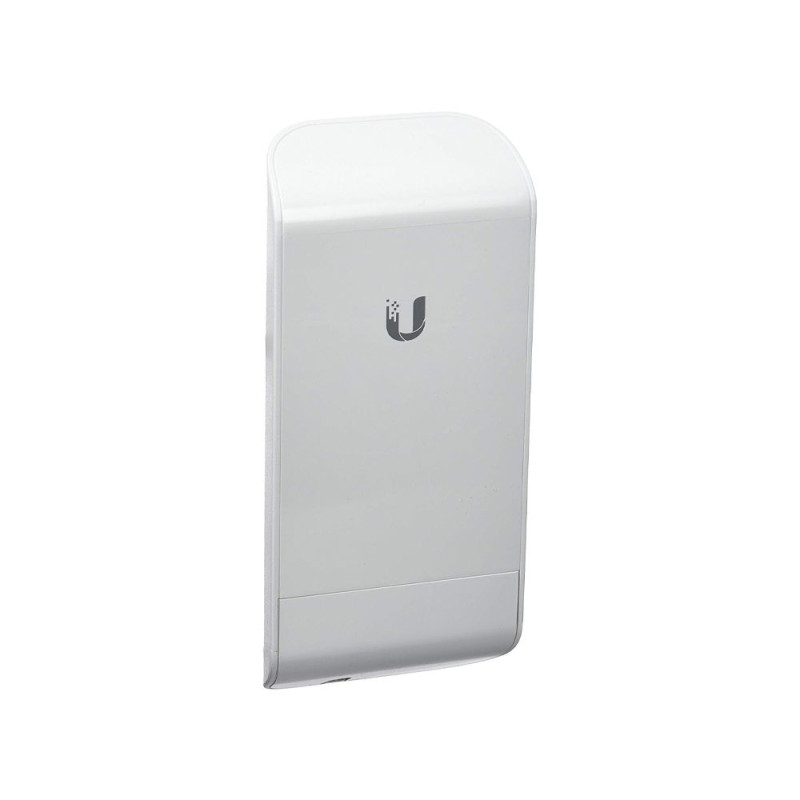

Ubiquiti LOCOM2 2.4GHz NanoStation Loco MIMO, AIRMAX

Ubiquiti LOCOM2 2.4GHz NanoStation Loco MIMO, AIRMAX

Product Code: LocoM2

Barcode: 817882023245

The original Ubiquiti NanoStation LOCOM2 set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE. The Ubiquiti NanoStation M and Ubiquiti NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors.

Ubiquiti 150+ Mpbs real outdoor throughput and up to 5km range. Featuring 2x2 MIMO technology, the new Ubiquiti NanoStation links significantly faster and farther than ever before.

The LOCOM2 antenna array designs featuring 8dBi at 2.4GHz. Both with optimised cross-polarity isolation and in a compact form-factor. Remote hardware reset circuitry of Ubiquiti NanoStation M allows for device to be reset remotely from power supply location.

Key Features:

• Connect two remote locations on the one network

• Share Internet connection between buildings, remote sites, etc.

• Up to 200mW output power, 2x2 MIMO operation, 100Mbps

• Integrated AirOS web software for controlling power, bridge/AP mode, etc.

• Includes POE injector and 240V AC adaptor

• Two units required for wireless bridge.

• Dimensions: 161 mm x 31 mm x 80 mm

• Weight: 180g (6.35 oz)

• Power Supply: (PoE) 24V, 0.5A24V, 0.5A

• Max. Power Consumption: 5.5W5.5W

• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

• Operating Frequency: 2412-2462 MHz

• Gain8.5 dBi

• Networking Interface: (1) 10/100 Ethernet Port

• Processor SpecsAtheros: MIPS 24Kc, 400 MHz

• Memory: 32 MB SDRAM, 8 MB Flash

• Frequency: 2.4 GHz

• Cross-pol Isolation: 20 dB Minimum

• Max. VSWR1.4:1

• Beam-width: 60° (H-pol) / 60° (V-pol) / 60° (Elevation)

• Polarisation: Dual Linear

• Enclosure: Outdoor UV Stabilised Plastic

• Mounting: Pole-Mount (Kit Included)

• Operating Temperature: -30 to 75° C

• Operating Humidity: 5 to 95% Noncondensing

• Wireless Approvals: FCC Part 15.247, IC RS210, CE

• RoHS Compliance: Yes
