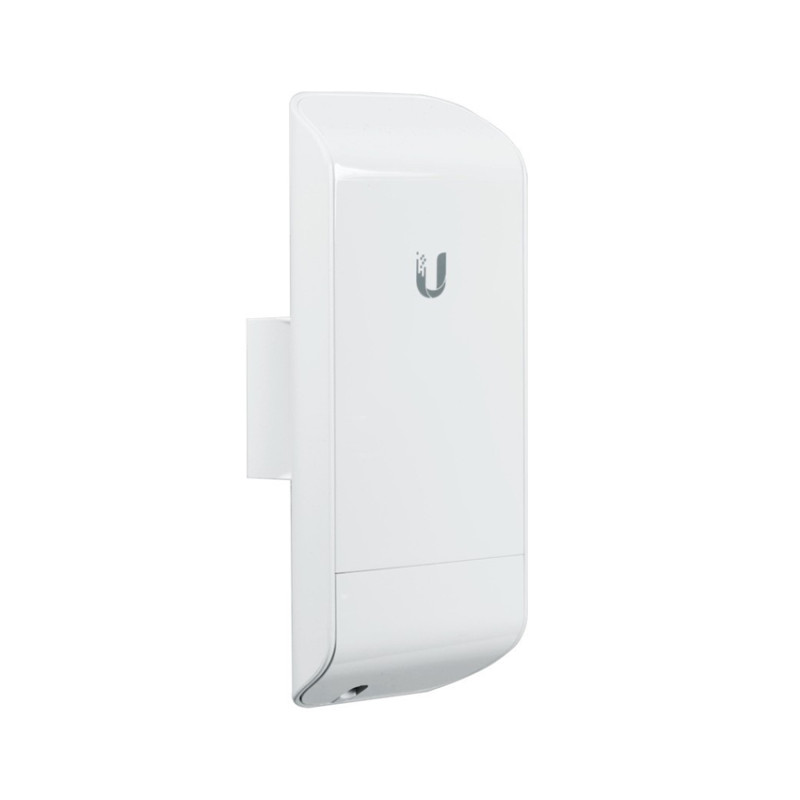

Ubiquiti LOCOM5 5GHz NanoStation Loco MIMO, AirMax AU

Ubiquiti LOCOM5 5GHz NanoStation Loco MIMO, AirMax AU

The original Ubiquiti NanoStation LOCOM5 set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE. The Ubiquiti NanoStation M and Ubiquiti NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors.

Ubiquiti 150+ Mpbs real outdoor throughput and up to 5km range. Featuring 2x2 MIMO technology, the new Ubiquiti NanoStation links significantly faster and farther than ever before.

The LOCOM5 antenna array designs featuring 13dBi at 5GHz. Both with optimised cross-polarity isolation and in a compact form-factor. Remote hardware reset circuitry of Ubiquiti NanoStation M allows for device to be reset remotely from power supply location.

Ubiquiti NanoStation LOCOM5 Features Include:

• Dimensions 161 x 31 x 80 mm

• Weight 180 g

• Power Supply (PoE) 24V, 0.5A

• Max. Power Consumption 5.5W

• Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)

• Operating Frequency Worldwide: 5170-5875 MHz

• Gain 13 dBi

• Networking Interface (1) 10/100 Ethernet Port

• Processor Specs Atheros MIPS 24Kc, 400 MHz

• Memory 64 MB DDR2, 8 MB Flash

• Frequency 5 GHz

• Cross-pol Isolation 20 dB Minimum

• Max. VSWR 1.4:1

• Beamwidth 45° (H-pol) / 45° (V-pol) / 45° (Elevation)

• Polarisation Dual Linear

• Enclosure Outdoor UV Stabilised Plastic

• Mounting Pole-Mount (Kit Included)

• Operating Temperature -30 to 75° C

• Operating Humidity 5 to 95% Noncondensing

• Wireless Approvals FCC Part 15.247, IC RS210, CE

• RoHS Compliance Yes

• Shock & Vibration ETSI300-019-1.4
