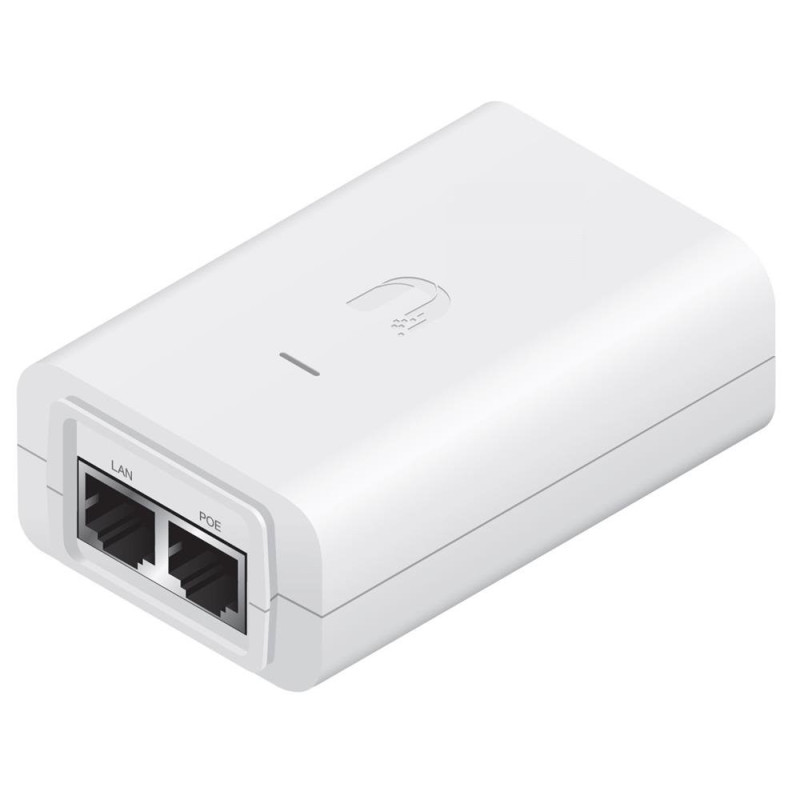

Ubiquiti POE-24-7W-G-WH-AU PoE Injector, 24VDC, 7W, Gigabit

Ubiquiti POE-24-7W-G-AU PoE Injector, 24VDC, 7W, Gigabit

The Ubiquiti POE-24-7W-G Gigabit  White (24V, 7W 0.3A) features earth grounding/ESD protection. Australian power cable.

Ubiquiti POE-24-7W-G Features:

• Dimensions: 72 x 45 x 33

• Weight: 72.1 g

• Output Voltage: 24VDC @ 0.3A

• LAN Activity Indicator: No

• Gigabit LAN Port: Yes

• Remote Reset Capability: Yes

• Reset Button: Yes

• Input Voltage: 100-240AC @ 50/60Hz

• Input Current: 0.3A @ 120VAC, 0.2A @240VAC

• Inrush Current: <40A Peak @ 120VAC, <70A Peak @ 230VAC

• Efficiency: 80+%

• Output Ripple: 1% Max.

• Switching Frequency: 65 kHz

• Line Regulation: ± 1%

• Load Regulation: ± 3%

• 2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-)

• Operating Temperature: 0 to 40°C (32 to 104°F)

• Storage Temperature: -30 to 70°C (-22 to 158°F)

• Operating Humidity: 35 to 95% Non-Condensing

• AC Connector: IEC-320 C6

• Data IN / POE: RJ45 Shielded Socket

• Surge Protection: Difference and Common Mode

• Clamping Protection: 11V Data, 60V Power

• Max. Surge Discharge: 1500A (8/20 µs) Power

• Peak Pulse Current: 36A (10/1000 µs) Data

• Shunt Capacitance: <5 pf data

• Response Time: <1 ns

• Compliance: IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B

• AC Cable with Earth Ground: AU, RCM
