Ubiquiti UA-G3-SK-Gate UniFi G3 Gate Access Starter Kit

Ubiquiti UA-G3-SK-Gate UniFi G3 Gate Starter Kit

UA-G3-SK-Gate is a UniFi Access gate starter kit for professional UniFi deployments, with official product specifications and clean installation details.

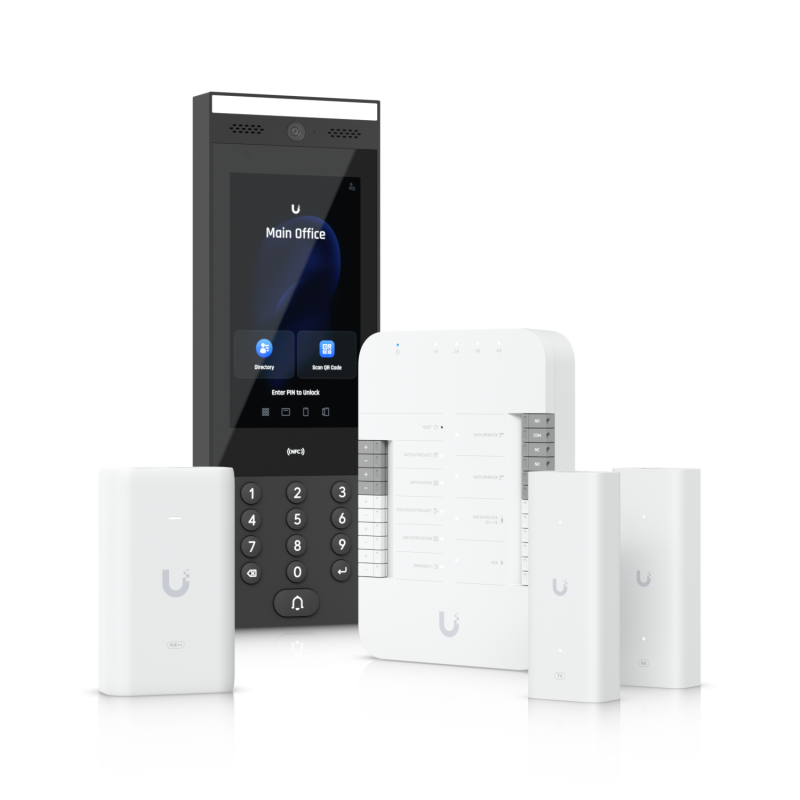

UA-G3-SK-Gate is a UniFi Access starter kit for a single gate and side door, bundling a Gate Hub, G3 Intercom, PoE++ adapter and two 2-wire Retrofit Extenders with Touch Pass support.

Key Features

• Complete starter kit for one gate and one side door.
• Includes Gate Hub, G3 Intercom, PoE++ adapter and two 2-wire Retrofit Extenders.
• Supports up to 6,000 users and UniFi Access management.
• Gate Hub provides PoE++ input and four PoE outputs with 55W aggregate PoE output.
• G3 Intercom adds camera, NFC/PIN/mobile unlock, face unlock and two-way doorbell access.

Technical Specifications

• Included components: (1) Gate Hub, (1) G3 Intercom, (1) PoE++ adapter, (2) 2-wire Retrofit Extenders
• Supported doors: 1 gate and 1 side door
• Maximum user count: 6,000
• Gate Hub dimensions: 175 x 126 x 26 mm
• Gate Hub weight: 460 g
• Gate Hub networking: (5) 10/100/1000 Base-T ports
• Gate Hub power: PoE++ input, four PoE outputs rated 30W per port, 55W aggregate PoE output
• Gate Hub max. power consumption: 22W without PoE output; 60W with PoE output
• Gate Hub inputs: Gate exit request, gate position, side door exit, side door position and emergency inputs
• Relay outputs: Two dry operator outputs, one dry aux output and one 12V DC powered side-door lock output
• G3 Intercom dimensions: 324.8 x 113.7 x 28.3 mm
• G3 Intercom connectivity: GbE RJ45, BLE 4.2 and NFC, powered by PoE
• G3 Intercom access methods: NFC, PIN, Apple/Google Wallet, mobile unlock, face unlock and two-way intercom
• Operating temperature: -30 to 60° C
• Operating humidity: 5 to 90% noncondensing
• Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1; NDAA compliant
