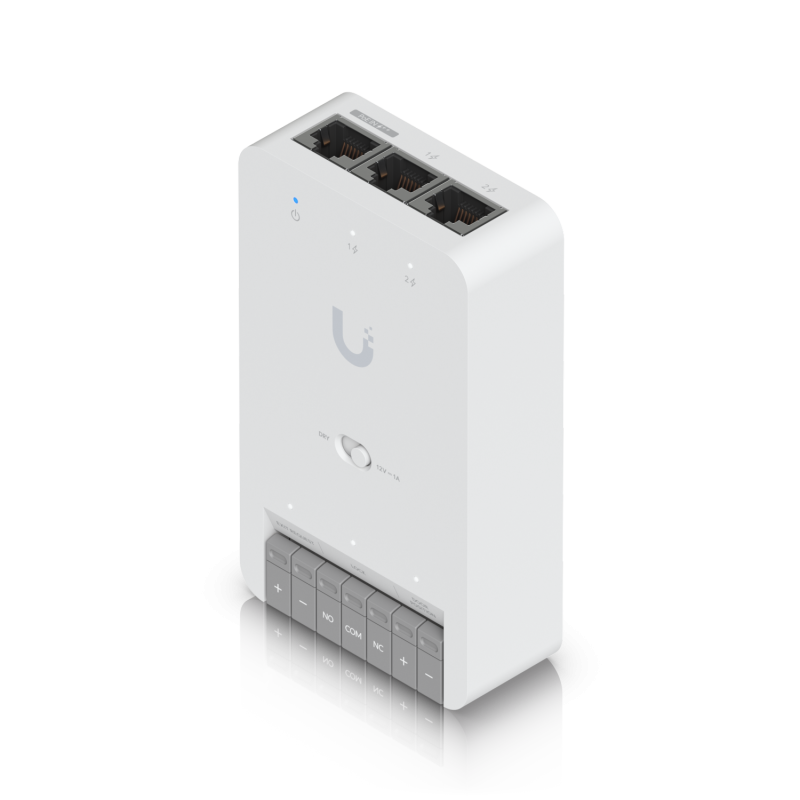

Ubiquiti UA-Hub-Door-Mini UniFi Access Mini Hub Single Door
$209.00
Tax included
Ubiquiti UA-Hub-Door-Mini UniFi Access Mini Hub Single DoorProduct Code: UA-Hub-Door-MiniThe UniFi Access Hub Mini is a Compact Access Control Hub for a single door.(1) Lock terminal (12V and Dry switchable)(2) Additional inputs (sensor and button)Connect and power via PoE++Connect up to two UniFi Access Readers or Protect CamerasMechanicalDimensions113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1")Weight190 g (6.7 oz)Enclosure materialPolycarbonate, metalHardwareNetworking interface(3) GbE RJ45 portsPower methodPoE++Max. power consumptionWithout PoE output: 19WWith PoE output: 50WPoE input50V DC, 1APoE output(2) PoE ports, total 31WButton(1) Factory-reset(1) Dry/Wet switchDigital inputRequest to exit/door position sensorOutput relayDry: 30V DC, 1AWet: 12V DC, 1ARecommend max. cable length18 AWGUACC...
Ubiquiti UA-Hub-Door-Mini UniFi Access Mini Hub Single Door
Product Code: UA-Hub-Door-Mini
The UniFi Access Hub Mini is a Compact Access Control Hub for a single door.
(1) Lock terminal (12V and Dry switchable)
(2) Additional inputs (sensor and button)
Connect and power via PoE++
Connect up to two UniFi Access Readers or Protect Cameras
| Mechanical | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | 113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1") | |||||||||||||||||||||||||
| Weight | 190 g (6.7 oz) | |||||||||||||||||||||||||
| Enclosure material | Polycarbonate, metal | |||||||||||||||||||||||||
| Hardware | ||||||||||||||||||||||||||
| Networking interface | (3) GbE RJ45 ports | |||||||||||||||||||||||||
| Power method | PoE++ | |||||||||||||||||||||||||
| Max. power consumption | Without PoE output: 19W With PoE output: 50W | |||||||||||||||||||||||||
| PoE input | 50V DC, 1A | |||||||||||||||||||||||||
| PoE output | (2) PoE ports, total 31W | |||||||||||||||||||||||||
| Button | (1) Factory-reset (1) Dry/Wet switch | |||||||||||||||||||||||||
| Digital input | Request to exit/door position sensor | |||||||||||||||||||||||||
| Output relay | Dry: 30V DC, 1A Wet: 12V DC, 1A | |||||||||||||||||||||||||
| Recommend max. cable length |
| |||||||||||||||||||||||||
| PoE cabling requirements | Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable. | |||||||||||||||||||||||||
| Operating environment | Indoor use only | |||||||||||||||||||||||||
| Ambient operating temperature | -10 to 40° C (14 to 104° F) | |||||||||||||||||||||||||
| Ambient operating humidity | 5 to 90% noncondensing | |||||||||||||||||||||||||
| Software information | The software version of a product can be checked at https://unifi.ui.com | |||||||||||||||||||||||||
| Certifications | CE, FCC, IC | |||||||||||||||||||||||||
| Document number, and issue date and/or revision level | UA-Hub-Door-Mini, V01 | |||||||||||||||||||||||||
| Software | ||||||||||||||||||||||||||
| Management application | UniFi Access: Version 2.5.2 and later | |||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
| PoE in | System status | |||||||||||||||||||||||||
| PoE out | Wire status/activity | |||||||||||||||||||||||||
| Input/output relay | Wire status/activity |
| Mechanical | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | 113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1") | |||||||||||||||||||||||||
| Weight | 190 g (6.7 oz) | |||||||||||||||||||||||||
| Enclosure material | Polycarbonate, metal | |||||||||||||||||||||||||
| Hardware | ||||||||||||||||||||||||||
| Networking interface | (3) GbE RJ45 ports | |||||||||||||||||||||||||
| Power method | PoE++ | |||||||||||||||||||||||||
| Max. power consumption | Without PoE output: 19W With PoE output: 50W | |||||||||||||||||||||||||
| PoE input | 50V DC, 1A | |||||||||||||||||||||||||
| PoE output | (2) PoE ports, total 31W | |||||||||||||||||||||||||
| Button | (1) Factory-reset (1) Dry/Wet switch | |||||||||||||||||||||||||
| Digital input | Request to exit/door position sensor | |||||||||||||||||||||||||
| Output relay | Dry: 30V DC, 1A Wet: 12V DC, 1A | |||||||||||||||||||||||||
| Recommend max. cable length |
| |||||||||||||||||||||||||
| PoE cabling requirements | Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable. | |||||||||||||||||||||||||
| Operating environment | Indoor use only | |||||||||||||||||||||||||
| Ambient operating temperature | -10 to 40° C (14 to 104° F) | |||||||||||||||||||||||||
| Ambient operating humidity | 5 to 90% noncondensing | |||||||||||||||||||||||||
| Software information | The software version of a product can be checked at https://unifi.ui.com | |||||||||||||||||||||||||
| Certifications | CE, FCC, IC | |||||||||||||||||||||||||
| Document number, and issue date and/or revision level | UA-Hub-Door-Mini, V01 | |||||||||||||||||||||||||
| Software | ||||||||||||||||||||||||||
| Management application | UniFi Access: Version 2.5.2 and later | |||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
| PoE in | System status | |||||||||||||||||||||||||
| PoE out | Wire status/activity | |||||||||||||||||||||||||
| Input/output relay | Wire status/activity |
Product information source: Streakwave product page.
