Ubiquiti UACC-ETH-SP-DIN DIN Mount Ethernet Surge Protection 10GbE POE++
$55.00
Tax included
Ubiquiti UACC-ETH-SP-DIN DIN Mount Ethernet Surge Protection 10GbE POE++Ethernet Surge ProtectionUACC-ETH-SP-DINBidirectional protection for up to 10 GbE, PoE++, and 20kA surge discharge for indoor installation.Wall/DIN rail mountMultiple grounding pointsTechnical SpecificationsMechanicalDimensions89 x 25.5 x 37.4 mm (3.5 x 1 x 1.5")Weight74 g (2.6 oz)Enclosure MaterialPolycarbonate, SGCC steelHardwareNetworking Interface(2) RJ45 female connectorsESD/EMP ProtectionAbsorbing transient current with response to surge voltage from 100V/s to 1kV/µsDC Spark-Over Voltage90V @ 100V/sMax. Impulse Spark-Over Voltage600V @ 1kV/µsDischarge Current20kAInsulationMax. Resistance: 1G ohm @ 50VMax. Capacitance1.0 pF @ 1 MHzData Line ProtectionUp to 10 GbpsPoE SupportYesAmbient Operating Temperature-40° ...

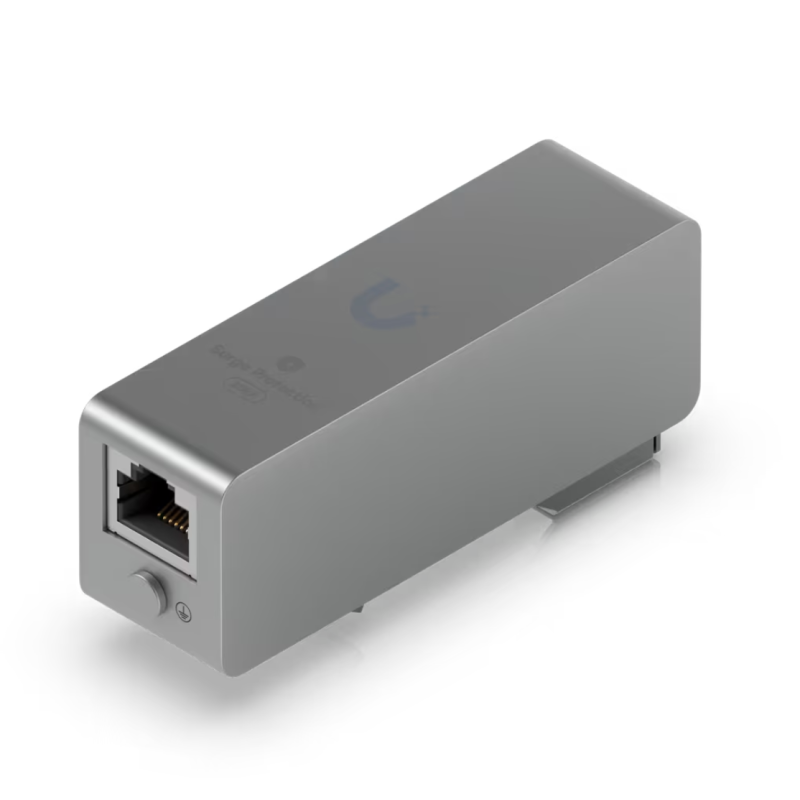

Ubiquiti UACC-ETH-SP-DIN DIN Mount Ethernet Surge Protection 10GbE POE++
Ethernet Surge Protection
UACC-ETH-SP-DIN
Bidirectional protection for up to 10 GbE, PoE++, and 20kA surge discharge for indoor installation.
Wall/DIN rail mount
Multiple grounding points
Technical Specifications
Mechanical
Dimensions
89 x 25.5 x 37.4 mm (3.5 x 1 x 1.5")
Weight
74 g (2.6 oz)
Enclosure Material
Polycarbonate, SGCC steel
Hardware
Networking Interface
(2) RJ45 female connectors
ESD/EMP Protection
Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
DC Spark-Over Voltage
90V @ 100V/s
Max. Impulse Spark-Over Voltage
600V @ 1kV/µs
Discharge Current
20kA
Insulation
Max. Resistance: 1G ohm @ 50V
Max. Capacitance
1.0 pF @ 1 MHz
Data Line Protection
Up to 10 Gbps
PoE Support
Yes
Ambient Operating Temperature
-40° to +80° C (-40° to 176° F)
Ambient Operating Humidity
10 to 90% noncondensing
Product information source: Streakwave product page.
