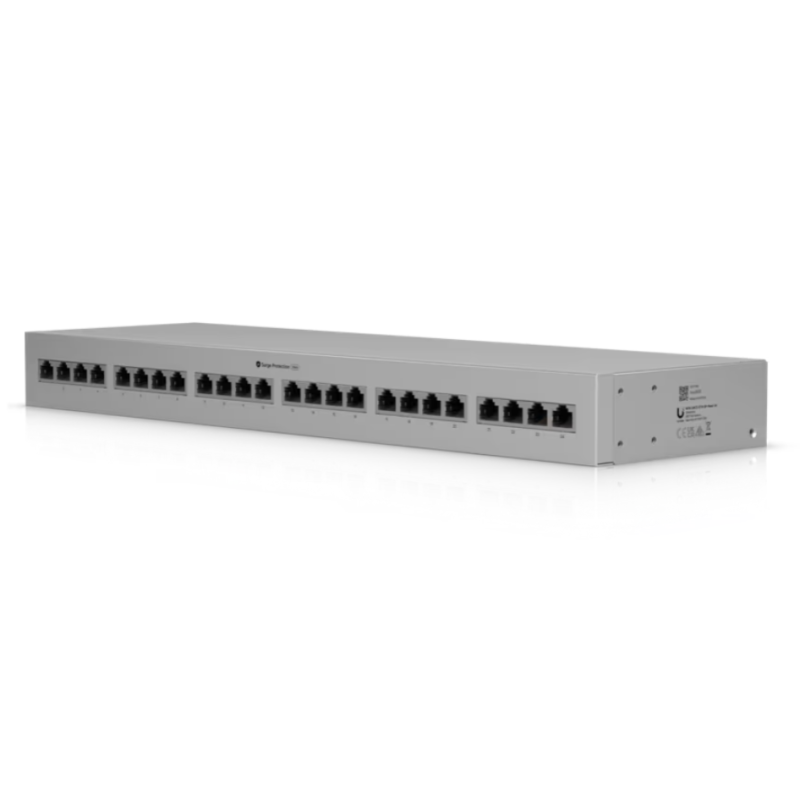

Ubiquiti UACC-ETH-SP-Panel-24 24 Port Rack-Mount Ethernet Surge Protection
$619.00
Tax included
Ubiquiti UACC-ETH-SP-Panel-24 24 Port Rack-Mount Ethernet Surge ProtectionRack-mount indoor panel supports up to 10 GbE, PoE++, and 20kA surge discharge per port.24-port integrated1U rack-mount designTechnical SpecificationsMechanicalDimensions442.4 x 134 x 43.7 mm (17.4 x 5.3 x 1.7")Weight2 kg (4.4 lb)Enclosure MaterialSGCC steelHardwareNetworking Interface(48) RJ45 female connectorsESD/EMP ProtectionAbsorbing transient current with response to surge voltage from 100V/s to 1kV/µsDC Spark-Over Voltage90V @ 100V/sMax. Impulse Spark-Over Voltage600V @ 1kV/µsDischarge Current20kAInsulationMax. Resistance: 1G ohm @ 50VMax. Capacitance1.0 pF @ 1 MHzData Line ProtectionUp to 10 GbpsPoE SupportYesAmbient Operating Temperature-40° to +80° C (-40° to 176° F)Ambient Operating Humidity10 to 90% no...
Ubiquiti UACC-ETH-SP-Panel-24 24 Port Rack-Mount Ethernet Surge Protection
Rack-mount indoor panel supports up to 10 GbE, PoE++, and 20kA surge discharge per port.
24-port integrated
1U rack-mount design
Technical Specifications
Mechanical
Dimensions
442.4 x 134 x 43.7 mm (17.4 x 5.3 x 1.7")
Weight
2 kg (4.4 lb)
Enclosure Material
SGCC steel
Hardware
Networking Interface
(48) RJ45 female connectors
ESD/EMP Protection
Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
DC Spark-Over Voltage
90V @ 100V/s
Max. Impulse Spark-Over Voltage
600V @ 1kV/µs
Discharge Current
20kA
Insulation
Max. Resistance: 1G ohm @ 50V
Max. Capacitance
1.0 pF @ 1 MHz
Data Line Protection
Up to 10 Gbps
PoE Support
Yes
Ambient Operating Temperature
-40° to +80° C (-40° to 176° F)
Ambient Operating Humidity
10 to 90% noncondensin
Product information source: Streakwave product page.
