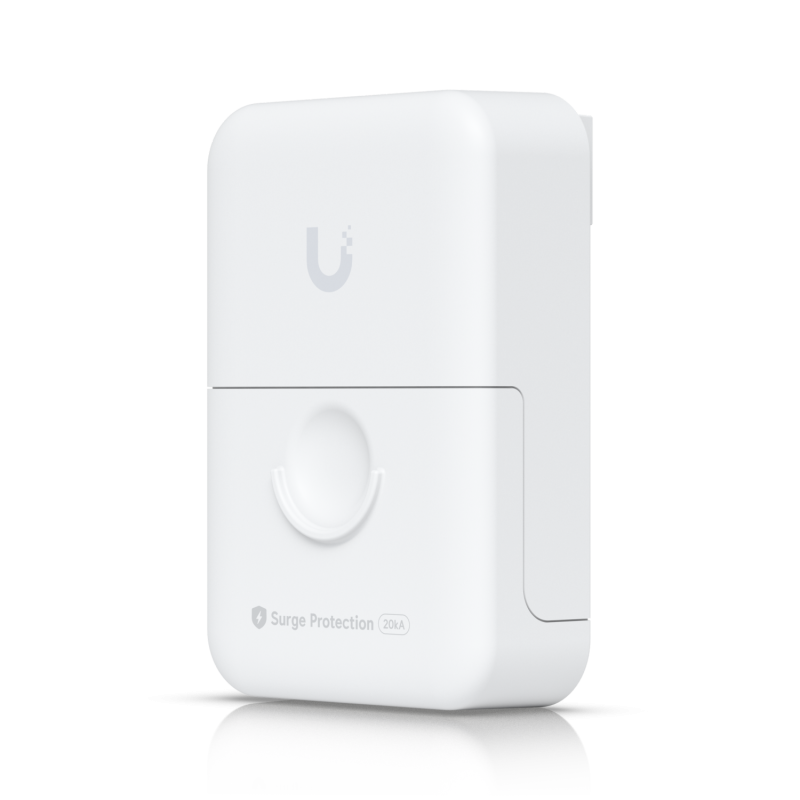

Ubiquiti UACC-ETH-SP-Pro Ethernet Surge Protection Outdoor 10GbE
$39.00
Tax included
Ubiquiti UACC-ETH-SP-Pro Ethernet Surge Protection Outdoor 10GbEESD protection for outdoor high-speed networks.Protects outdoor Ethernet devices, up to 20kA discharge current.(2) Passive, surge-protected RJ45 connectionsQuick and easy installationCompatible with 10 GbE networksTechnical SpecificationsMechanicalDimensions91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")Weight95 g (3.35 oz)Enclosure MaterialPolycarbonateWeatherproofingIPX5HardwareNetworking Interface(2) RJ45 female connectorsESD/EMP ProtectionAbsorbing transient current with response to surge voltage from 100V/s to 1kV/µsDC Spark-Over Voltage90V @ 100V/sMax. Impulse Spark-Over Voltage600V @ 1kV/µsDischarge Current20kAInsulationMax. Resistance: 1G ohm @ 50VMax. Capacitance1.0 pF @ 1 MHzData Line ProtectionUp to 10 GbpsPoE SupportYesAmb...
Ubiquiti UACC-ETH-SP-Pro Ethernet Surge Protection Outdoor 10GbE
ESD protection for outdoor high-speed networks.
Protects outdoor Ethernet devices, up to 20kA discharge current.
(2) Passive, surge-protected RJ45 connections
Quick and easy installation
Compatible with 10 GbE networks
Technical Specifications
Mechanical
Dimensions
91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")
Weight
95 g (3.35 oz)
Enclosure Material
Polycarbonate
Weatherproofing
IPX5
Hardware
Networking Interface
(2) RJ45 female connectors
ESD/EMP Protection
Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
DC Spark-Over Voltage
90V @ 100V/s
Max. Impulse Spark-Over Voltage
600V @ 1kV/µs
Discharge Current
20kA
Insulation
Max. Resistance: 1G ohm @ 50V
Max. Capacitance
1.0 pF @ 1 MHz
Data Line Protection
Up to 10 Gbps
PoE Support
Yes
Ambient Operating Temperature
-30 to 65° C (-22 to 149° F)
Ambient Operating Humidity
10 to 90% noncondensing
Shock and Vibration Certification
ETSI300-019-1.4 Standard
Product information source: Streakwave product page.
