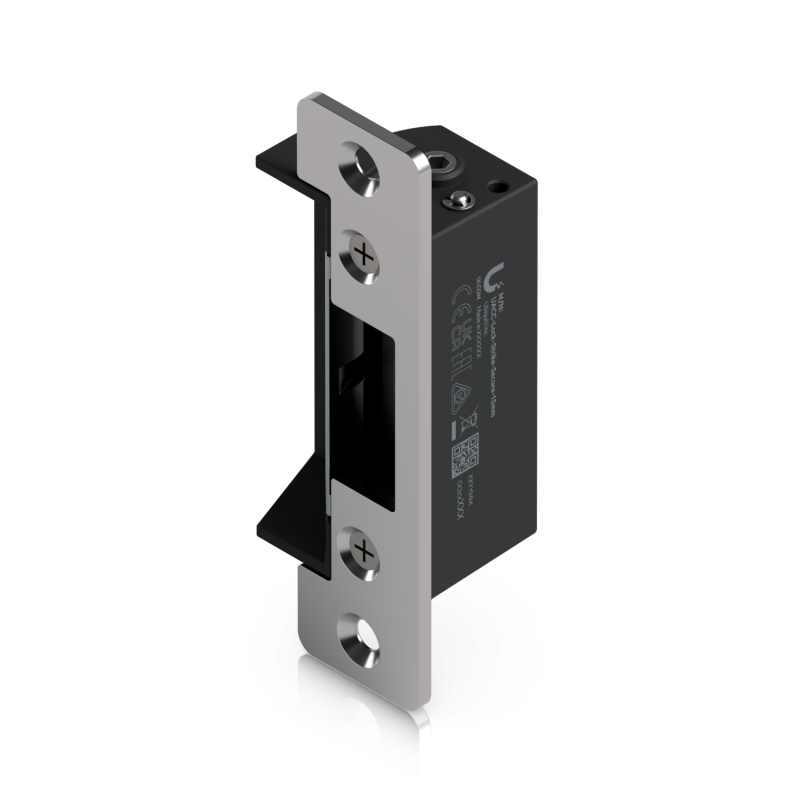

Ubiquiti UACC-Lock-Strike-Secure-15mm UniFi Access Fail-Secure Strike Lock 15mm
$179.00
Tax included
Ubiquiti UACC-Lock-Strike-Secure-15mm UniFi Access Fail-Secure Strike Lock 15mmUACC-Lock-Strike-Secure-15mm Fail-secure electric strike lock that connects to a UniFi Access Hub.Technical SpecificationsOverviewDimensionsLock body: 80 x 40 x 35 mm (3.2 x 1.6 x 1.4") Short front plate: 124 x 32 x 3 mm (4.9 x 1.3 x 0.1") Long front plate: 202 x 36 x 3 mm (7.9 x 1.4 x 0.1")WeightLock body: 185 g (6.5 oz) Short front plate: 50 g (1.8 oz) Long front plate: 130 g (4.6 oz)Enclosure MaterialLock body: zinc alloy Front plate/latches: stainless steelLock FeaturesLock TypeFail secureSupport Door TypeSingle door (Wooden/metal)Holding Force1,200 kg (2,645 lb)Current Power400mA ±10%Support Voltage Range12V DC ±10%Wiring(1) Lock 12V/NO (red) (1) Lock 12V/COM (black)MountingDoor frame recess mountDoor St...
Ubiquiti UACC-Lock-Strike-Secure-15mm UniFi Access Fail-Secure Strike Lock 15mm
UACC-Lock-Strike-Secure-15mm Fail-secure electric strike lock that connects to a UniFi Access Hub.
Technical Specifications
Overview
Dimensions
Lock body: 80 x 40 x 35 mm (3.2 x 1.6 x 1.4") Short front plate: 124 x 32 x 3 mm (4.9 x 1.3 x 0.1") Long front plate: 202 x 36 x 3 mm (7.9 x 1.4 x 0.1")
Weight
Lock body: 185 g (6.5 oz) Short front plate: 50 g (1.8 oz) Long front plate: 130 g (4.6 oz)
Enclosure Material
Lock body: zinc alloy Front plate/latches: stainless steel
Lock Features
Lock Type
Fail secure
Support Door Type
Single door (Wooden/metal)
Holding Force
1,200 kg (2,645 lb)
Current Power
400mA ±10%
Support Voltage Range
12V DC ±10%
Wiring
(1) Lock 12V/NO (red) (1) Lock 12V/COM (black)
Mounting
Door frame recess mount
Door Status Contact
Type
Dry contact
Logic
Door Open: DPS/+ & DPS/- = Open Door Close: DPS/+ & DPS/- = Short
Rating
Max. 30V DC, 0.1A
Ambient Storage Temperature
-20 to 70° C (-4 to 158° F)
Ambient Operating Temperature
-10 to 60° C (14 to 140° F)
Ambient Operating Humidity
5 to 90% noncondensing
NDAA Compliant
Yes
Certifications
FCC, IC, CE
Product information source: Streakwave product page.
