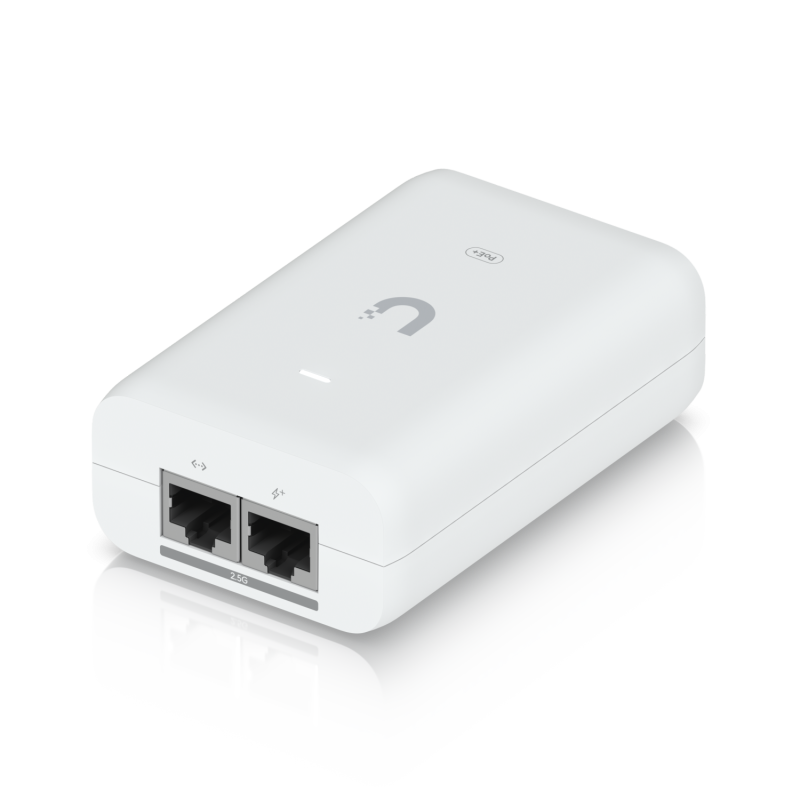

Ubiquiti UACC-PoE+-2.5G-AU U-POE Plus PoE Injector 802.3at Supported PoE 30W 2.5G
$36.00
Tax included
Ubiquiti UACC-PoE+-2.5G U-POE Plus PoE Injector 802.3at Supported PoE 30W 2.5GUbiquiti POE adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.Delivers up to 30W of PoE+Surge, peak pulse, and overcurrent protectionContains RJ45 data input, AC cable with earth ground, and PoE+ outputLED indicator for status monitoringTechnical SpecificationsOverviewDimensions93 x 62 x 35 mm (3.7 x 2.4 x 1.4")Weight156 g (5.5 oz)Output Voltage48V DC @ 0.65ARated Voltage100—240V AC @ 50/60HzLAN Activity IndicatorNoGigabit LAN PortYesRemote Reset CapabilityNoReset ButtonNo2-pair PoweringPins 4, 5 (+) and 7, 8 (-)Clamping Protection11V Data, 60V powerData In / PoERJ45 Shielded SocketInput Current0.75A Max.Inrush Current<150A peak @ 230V...
Ubiquiti UACC-PoE+-2.5G U-POE Plus PoE Injector 802.3at Supported PoE 30W 2.5G
Ubiquiti POE adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
Delivers up to 30W of PoE+
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE+ output
LED indicator for status monitoring
Technical Specifications
Overview
Dimensions
93 x 62 x 35 mm (3.7 x 2.4 x 1.4")
Weight
156 g (5.5 oz)
Output Voltage
48V DC @ 0.65A
Rated Voltage
100—240V AC @ 50/60Hz
LAN Activity Indicator
No
Gigabit LAN Port
Yes
Remote Reset Capability
No
Reset Button
No
2-pair Powering
Pins 4, 5 (+) and 7, 8 (-)
Clamping Protection
11V Data, 60V power
Data In / PoE
RJ45 Shielded Socket
Input Current
0.75A Max.
Inrush Current
<150A peak @ 230V AC
Efficiency
>87%
Switching Frequency
65 kHz Max.
Output Ripple
1% Max.
Line Regulation
≤ 1%
Load Regulation
≤ 3%
Max. Surge Discharge
1500A (8/20 μs) power
Peak Pulse Current
36A (10/1000 μs) data
Response Time
<1 ns
Shunt Capacitance
<5 pF data
Surge Protection
Difference and common mode
Ambient Storage Temperature
-30 to 70°C (-22 to 158° F)
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
10 to 95% noncondensing
NDAA Compliant
Yes
Certifications
CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
Product information source: Streakwave product page.
