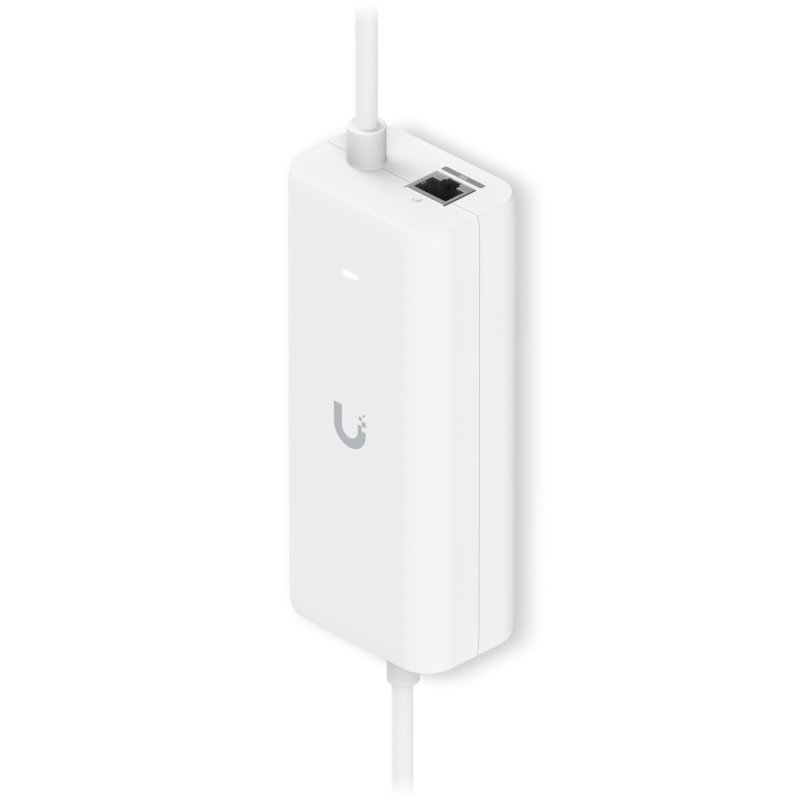

Ubiquiti UACC-PoE+-USBC PoE Integrated AC Adapter
$89.00
Tax included
Ubiquiti UACC-PoE+-USBC PoE Integrated AC AdapterUbiquiti An AC adapter with integrated PoE, enabling the UniFi Cloud Gateway device to support PoE output on a single port.Delivers up to 30W of PoE+Supports wall mount, DIN rail and floating mount*Lockable latch designed for power cord securityCompatibility: UXG-LiteUXUXG-MaxUCG-MaxUCG-Ultra UX7Technical SpecificationsOverviewDimensions146 x 62 x 42 mm (5.7 x 2.4 x 1.7")Weight358 g (12.6 oz)LengthCable: 150 cm (4.9 ft) total, including 30 cm split Type-C/Ethernet ends Power cord: 180 cm (5.9 ft)Output VoltageType-C: 5V@ 5A PoE+: 48V@ 0.65ARated Voltage100—240V AC @ 50/60HzLAN Activity IndicatorNoGigabit LAN PortYesRemote Reset CapabilityNoReset ButtonNo4-pair PoweringPins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)Clamping Protection11V data, 60V ...
Ubiquiti UACC-PoE+-USBC PoE Integrated AC Adapter
Ubiquiti An AC adapter with integrated PoE, enabling the UniFi Cloud Gateway device to support PoE output on a single port.
Delivers up to 30W of PoE+
Supports wall mount, DIN rail and floating mount*
Lockable latch designed for power cord security
Compatibility:
UXG-Lite
UX
UXG-Max
UCG-Max
UCG-Ultra
UX7
Technical Specifications
Overview
Dimensions
146 x 62 x 42 mm (5.7 x 2.4 x 1.7")
Weight
358 g (12.6 oz)
Length
Cable: 150 cm (4.9 ft) total, including 30 cm split Type-C/Ethernet ends Power cord: 180 cm (5.9 ft)
Output Voltage
Type-C: 5V@ 5A PoE+: 48V@ 0.65A
Rated Voltage
100—240V AC @ 50/60Hz
LAN Activity Indicator
No
Gigabit LAN Port
Yes
Remote Reset Capability
No
Reset Button
No
4-pair Powering
Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
Clamping Protection
11V data, 60V power
Data In / PoE
RJ45 shielded socket
Input Current
1.5A max.
Inrush Current
120A
Efficiency
82%
Switching Frequency
65 kHz
Output Ripple
1% max.
Line Regulation
≤ 5%
Load Regulation
≤ 5%
Max. Surge Discharge
1500A (8/20 μs) power
Peak Pulse Current
36A (10/1000 μs) data
Response Time
<1 ns
Shunt Capacitance
<5 pF data
Surge Protection
Difference and common mode
Ambient Storage Temperature
-30 to 70°C (-22 to 158° F)
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
10 to 95% noncondensing
NDAA Compliant
Yes
Certifications
CE, FCC, IC, UL, UKCA, CCC, RoHS
Product information source: Streakwave product page.
