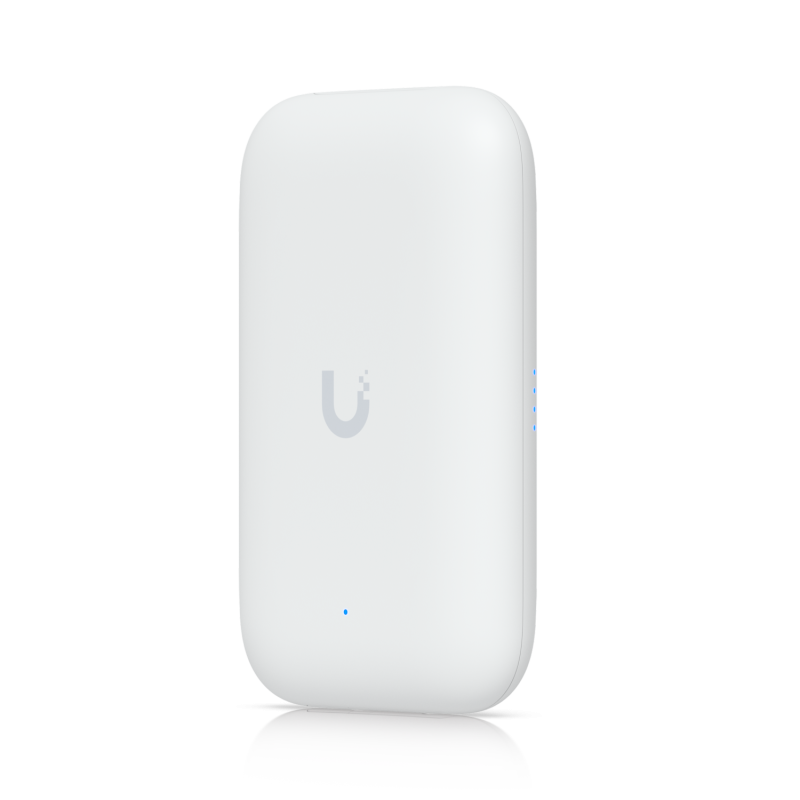

Ubiquiti UACC-UK-Ultra-Panel-Antenna To Suit Unifi UK-Ultra
$79.00
Tax included
Ubiquiti UACC-UK-Ultra-Panel-Antenna To Suit Unifi UK-UltraUnifi Panel Antenna Ultra is a Sleek, clip-on external antenna for the Swiss Army Knife Ultra that provides 90-degree directional, extended range coverage.High-efficiency 90° directional radiation patternOptimized for dual-band, extended range coverageClip-on attachment with support for all Swiss Army Knife Ultra mounting methodsWeatherproof (outdoor exposed)Compatibility: UK-UltraTechnical SpecificationsMechanicalDimensions138 x 207 x 43 mm (5.4 x 8.1 x 1.7")Weight450 g (1 lb)Enclosure materialsUV-stabilized polycarbonate, aluminumMounting1~2" on pipe outer diameterCompatible with the UK-UltraWind survivability75 N at 200 km/h (16.7 lbf at 125 mph)WeatherproofingIPX6Antenna gain2.4 GHz5 GHz10 dBi15 dBi
Ubiquiti UACC-UK-Ultra-Panel-Antenna To Suit Unifi UK-Ultra
Unifi Panel Antenna Ultra is a Sleek, clip-on external antenna for the Swiss Army Knife Ultra that provides 90-degree directional, extended range coverage.
High-efficiency 90° directional radiation pattern
Optimized for dual-band, extended range coverage
Clip-on attachment with support for all Swiss Army Knife Ultra mounting methods
Weatherproof (outdoor exposed)
Compatibility: UK-Ultra
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 138 x 207 x 43 mm (5.4 x 8.1 x 1.7") |
| Weight | 450 g (1 lb) |
| Enclosure materials | UV-stabilized polycarbonate, aluminum |
| Mounting | 1~2" on pipe outer diameter Compatible with the UK-Ultra |
| Wind survivability | 75 N at 200 km/h (16.7 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Antenna gain 2.4 GHz 5 GHz | 10 dBi 15 dBi |
Product information source: Streakwave product page.
