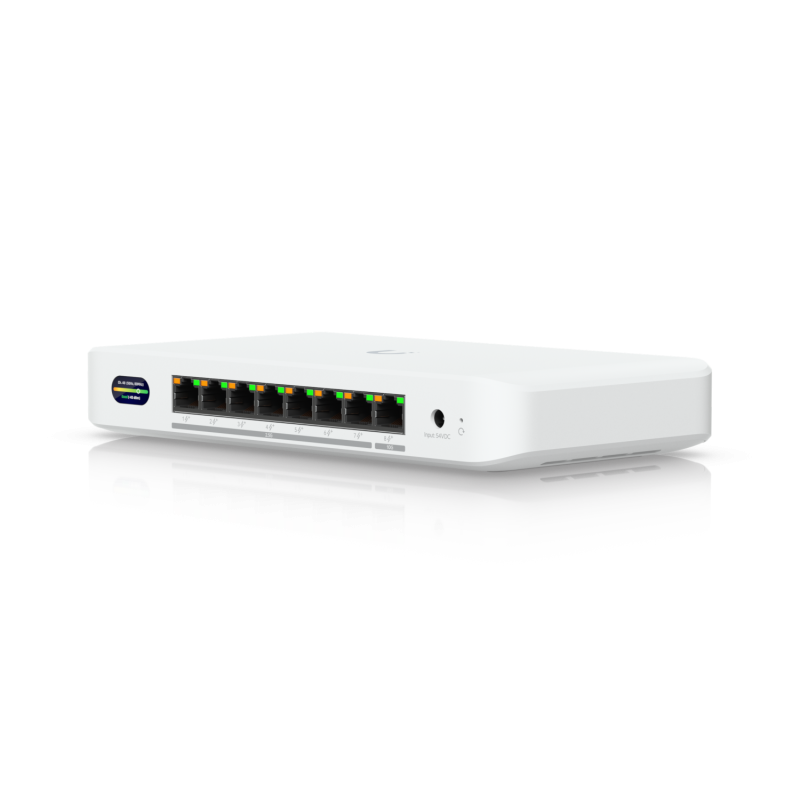

Ubiquiti UDB-Switch Unifi Device Bridge POE Switch (1) 10 GbE port, (7) 2.5 GbE and 6 GHz-Ready WiFi 7
Ubiquiti Compact PoE+ switch* with (1) 10 GbE port, (7) 2.5 GbE ports, and 6 GHz-ready WiFi 7 bridging integration for seamless, high-capacity wireless uplink to UniFi WiFi.
WiFi 7 Built in
54V DC/1.1A (AU Adapter included)
8 PoE+ Ports
Desktop and Wall
Technical Specifications
Overview
Dimensions
212.9 x 113 x 32.5 mm (8.4 x 4.4 x 1.3")
WiFi Standard
WiFi 7
Spatial Streams
4
Mounting Locations
Desktop, wall
Power Method
DC jack (54V DC/1.1A)
Power Supply
54V DC/1.1A (Adapter included)
Performance
MIMO
6 GHz
2 x 2
5 GHz
2 x 2
Max. Data Rate
6 GHz
5.8 Gbps (BW320)
5 GHz
4.3 Gbps (BW240)
Antenna Gain
6 GHz
8 dBi
5 GHz
8 dBi
Max. TX Power
6 GHz
23 dBm
5 GHz
26 dBm
Max. Conducted TX Power
26 dBm (Combined)
Supported Data Rates
802.11be (WiFi 7)
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Security
WPA3 SAE (Always On)
Hardware
Max. Power Consumption
25W (Excluding PoE output)
Supported Voltage Range
42.5—57V DC
Networking Interface
(1) 10 GbE RJ45 port (7) 2.5 GbE RJ45 ports
PoE Interface
(8) PoE+ ports
Max. PoE Wattage per Port
30W
Total PoE Availability
60W AC adapter input: 35W 210W AC adapter input: 185W
Antennas
(1) Internal
Management
Ethernet WiFi
Channel Bandwidth
20/40/80/160/240/320 MHz
Weight
Device: 548 g (1.21 lb) With mount: 563 g (1.24 lb)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
LCM Display
0.96" status display
Button
(1) Factory-reset
NDAA Compliant
Yes
Certifications
CE, FCC, IC
Operating Frequency
Worldwide: 5150—5875 MHz 5945—7125 MHz
Ambient Operating Temperature
-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Product information source: Streakwave product page.
