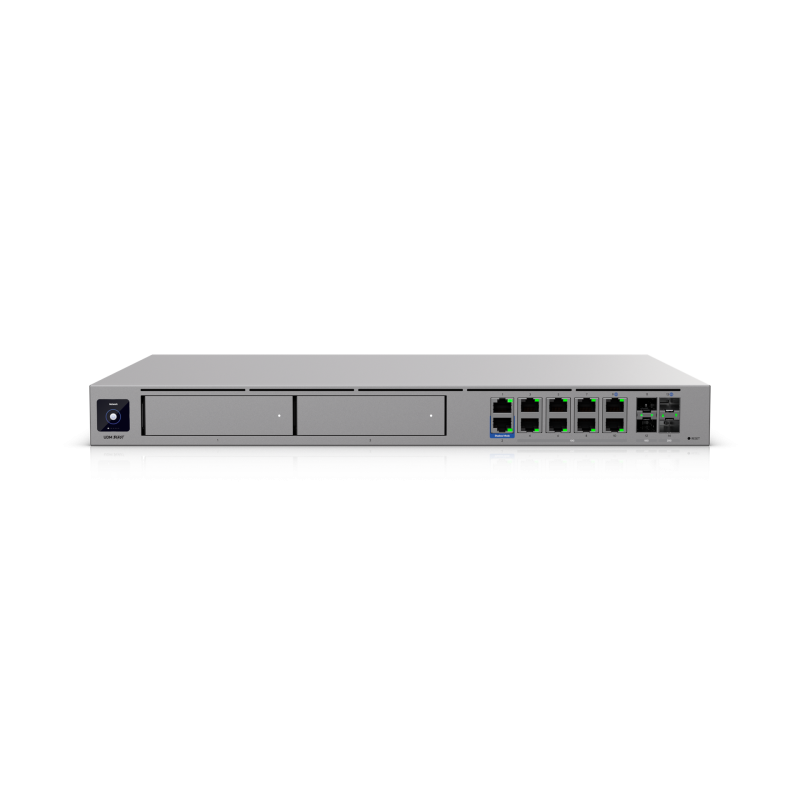

Ubiquiti UDM-Beast UniFi Dream Machine Beast Hyperscale-Class Cloud Gateway
$2,799.00
Tax included
Ubiquiti UDM-Beast UniFi Dream Machine Beast Cloud Gateway UDM-Beast is a hyperscale-class UniFi Cloud Gateway for high-density networks, delivering 25 Gbps IDS/IPS throughput, 7,500+ client capacity, advanced routing and security, and the full UniFi application platform in a 1U rackmount system. Key Features Hyperscale-class UniFi Cloud Gateway with 25 Gbps IDS/IPS throughput. Supports 7,500+ simultaneous users, 750+ managed UniFi devices, and up to 100 HD UniFi Protect cameras. High-performance WAN and LAN connectivity with 25G SFP28, 10G SFP+, and 10GbE RJ45 ports. Runs the full UniFi application suite: Network, Protect, Access, Talk, and Connect. Advanced security and routing including application-aware Layer 7 firewalling, DPI, IPS/IDS, SD-WAN, OSPF, BGP, VPN, and multi-WAN load ba...
Ubiquiti UDM-Beast UniFi Dream Machine Beast Cloud Gateway
UDM-Beast is a hyperscale-class UniFi Cloud Gateway for high-density networks, delivering 25 Gbps IDS/IPS throughput, 7,500+ client capacity, advanced routing and security, and the full UniFi application platform in a 1U rackmount system.
Key Features
- Hyperscale-class UniFi Cloud Gateway with 25 Gbps IDS/IPS throughput.
- Supports 7,500+ simultaneous users, 750+ managed UniFi devices, and up to 100 HD UniFi Protect cameras.
- High-performance WAN and LAN connectivity with 25G SFP28, 10G SFP+, and 10GbE RJ45 ports.
- Runs the full UniFi application suite: Network, Protect, Access, Talk, and Connect.
- Advanced security and routing including application-aware Layer 7 firewalling, DPI, IPS/IDS, SD-WAN, OSPF, BGP, VPN, and multi-WAN load balancing.
- 1U rackmount chassis with Shadow Mode gateway failover and UniFi RPS DC backup support.
Technical Specifications
- Dimensions: 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")
- Weight: 5.5 kg (12.13 lb)
- Form factor: 1U rackmount
- Processor / memory: Octa-core Arm v9 at 2.1 GHz with 16 GB system memory
- Storage: Integrated 128 GB SSD plus two 3.5" NVR HDD bays
- Default WAN ports: 1 x 25G SFP28 and 1 x 10 GbE RJ45
- Ethernet / fibre ports: 2 x 1 GbE RJ45, 8 x 10 GbE RJ45, 2 x 10G SFP+, and 2 x 25G SFP28
- Protect capacity: Up to 100 HD, 60 2K, or 40 4K cameras
- Max. power consumption: 100W
- Power method: Universal 100-240V AC input and USP-RPS DC input for backup power
- Display: 1.3" touchscreen LCM
- Operating environment: 0 to 40°C, 5 to 95% noncondensing humidity
- Certifications: CE, FCC, IC; NDAA compliant
- Application requirements: UniFi iOS 10.34.0+ and UniFi Android 10.37.1+
Product information source: Streakwave product page.
