Ubiquiti UNVR-Instant-Kit UniFi Protect Network Video Recorder Instant Kit
$1,159.00
Tax included
Ubiquiti UNVR-Instant-Kit UniFi Protect Network Video Recorder Instant Kit Unitfi Network Video Recorder Instant KitUbiquiti Protect UNVR-Instant-KitCompact UniFi Protect NVR Kit, includes (1) UniFi Protect NVR Instant with (4) G5 Turret Ultra cameras and (1) 1TB HDD, delivering an all-in-one solution for fast and effortless setup.Technical SpecificationsNetwork Video Recorder InstantDimensions220 x 220 x 47 mm (8.7 x 8.7 x 1.9")UniFi Application SuiteProtectYesAccessYesManaged Cameras(15) HD (8) 2K (6) 4KStorage Capacity(1) 3.5" drive bayData ProtectionYesVantage PointYesNetworking Interface(1) GbE RJ45 uplink port (6) GbE PoE RJ45 downlink ports (1) HDMI port (Viewport)Form FactorCompact DesktopMountingWall, Din rail mount (Included)Door Access SupportYesHard Drive Capacity(1) 3.5" HD...
Ubiquiti UNVR-Instant-Kit UniFi Protect Network Video Recorder Instant Kit
Unitfi Network Video Recorder Instant Kit
Ubiquiti Protect UNVR-Instant-Kit

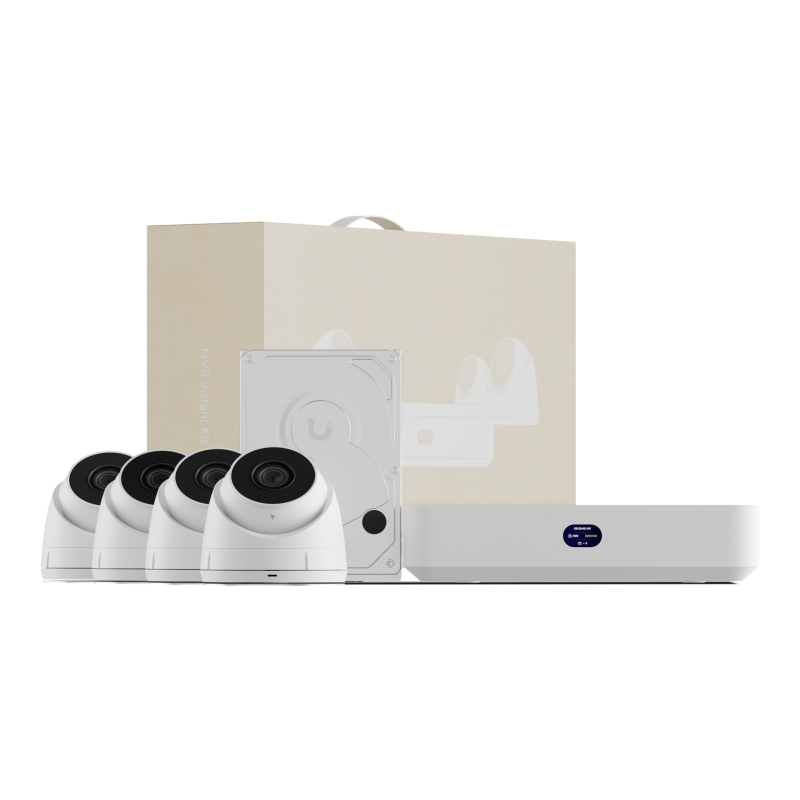

Compact UniFi Protect NVR Kit, includes (1) UniFi Protect NVR Instant with (4) G5 Turret Ultra cameras and (1) 1TB HDD, delivering an all-in-one solution for fast and effortless setup.
Technical Specifications
Network Video Recorder Instant
Dimensions
220 x 220 x 47 mm (8.7 x 8.7 x 1.9")
UniFi Application Suite
Protect
Yes
Access
Yes
Managed Cameras
(15) HD (8) 2K (6) 4K
Storage Capacity
(1) 3.5" drive bay
Data Protection
Yes
Vantage Point
Yes
Networking Interface
(1) GbE RJ45 uplink port (6) GbE PoE RJ45 downlink ports (1) HDMI port (Viewport)
Form Factor
Compact Desktop
Mounting
Wall, Din rail mount (Included)
Door Access Support
Yes
Hard Drive Capacity
(1) 3.5" HDD support
Max. Power Budget for Drives
11W
Max. Power Consumption
9W
Power Method
Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz
Power Supply
AC/DC, Internal, 60W
PoE Budget
40W
Max. PoE Wattage per Port by PSE
PoE
15.4W
Voltage Range PoE Mode
44–57V
Processor
Quad-core ARM® Cortex®-A55 at 1.7 GHz
Memory
4 GB
Management
Ethernet Bluetooth
Display
1.14" screen
Weight
1.04 kg (2.3 lb)
Enclosure Materials
Polycarbonate
Mount Material
Polycarbonate
LEDs
Ethernet
Yes
PoE
Yes
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
Yes
Certifications
FCC, IC, CE, Electrical Safety, UL
G5 Turret Ultra
Dimensions
Ø90 x 71.2 mm (Ø3.5 x 2.8")
IR Night Vision
30 m (98 ft)
Smart Detections (People, Vehicles, Animals)
Yes
Resolution
2K
Field of View
H: 102.4°, V: 54.9°, D: 120.6°
Audio
Microphone
Weatherproofing
IP66
Tamper Resistance
IK04
Mounting
Wall, ceiling mount (Included) Junction box, arm mount (Optional)
Networking Interface
10/100 MbE RJ45 port
Video
Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Max. Frame Rate
30 FPS
Resolution
4MP 2688 x 1512 (16:9)
Optics
Sensor
1/2.4" CMOS
Lens
Fixed focal length
Night Mode
Built-in IR LED illumination and IR cut filter
Max. Power Consumption
4W
Supported Voltage Range
37—57V DC
Power Method
PoE
Processor
Dual-core Arm® Cortex®-A7 based chip
Weight
330 g (11.6 oz)
Enclosure Material
Aluminum alloy, UV-stabilized polycarbonate
Mount Material
Polycarbonate
Button
(1) Factory-reset
Cable
Cable Connector Type
RJ45
Cable Diameter
5 mm (0.2")
Cable Length
30 cm (1 ft)
Jacket Material
Polycarbonate
Jacket Enclosure Dimensions
Ø20 x 70.6 mm (0.8 x 2.8")
Jacket Enclosure Material
Thermoplastic elastomer, polycarbonate, silicone rubber
Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity
0 to 90% noncondensing
NDAA Compliant
Yes
Certifications
CE, FCC, IC
HDD
Dimensions
147 x 101.6 x 26.1 mm (5.75 x 4 x 1")
Hard Disk Form Factor
3.5-inch
Weight
0.45 kg (0.99 lb)
Storage Capacity
1 TB
Power Method
5V/12V input
Management Interface
SATA 6 Gb/s
Rotation Speed
5400 RPM
Workload Rating
180 TB/year
Mean Time Between Failure (MTBF)
1,000,000 h
Ambient Operating Temperature
0 to 65° C (32 to 149° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
Yes
Certifications
FCC, CE, UL, TUV, RCM, KC, BSMI
Product information source: Streakwave product page.
