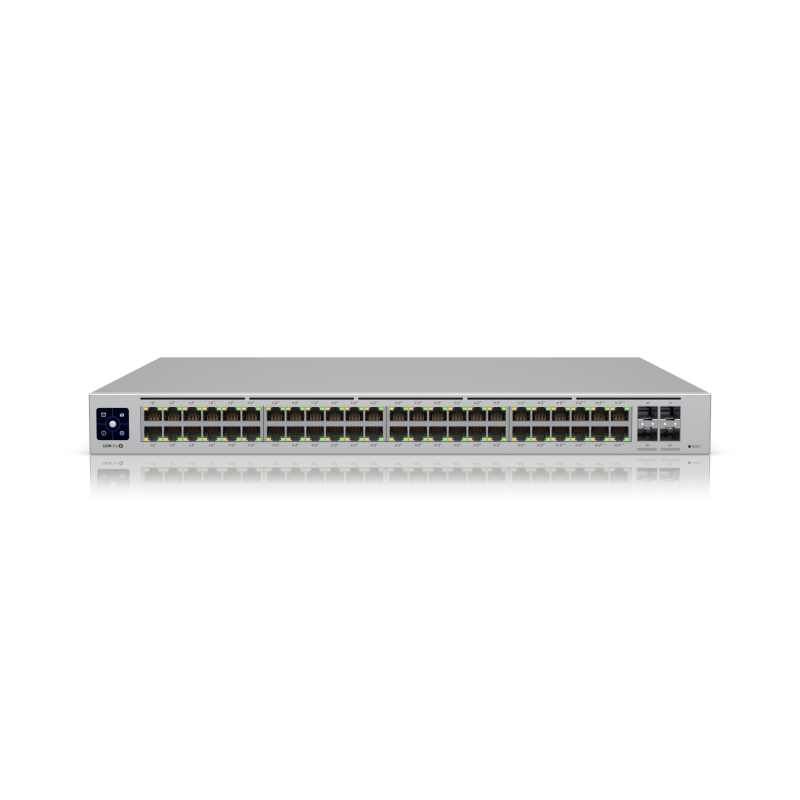

Ubiquiti USW-Pro-48-POE Gen2 UniFi 48 Port Gigabit Switch with 802.3bt PoE, Layer3 Features and SFP+

Ubiquiti USW-Pro-48-POE UniFi Switch Pro 48 PoE

USW-Pro-48-POE is a UniFi PoE switch for managed business networks, with 48 (40 PoE+; 8 PoE++) GbE RJ45 ports, 4 10G SFP+ ports, 176 Gbps switching capacity, and 600W PoE availability.

Key Features

• A 48-port, Layer 3 switch capable of high-power PoE++ output.
• High-density switching with 48 (40 PoE+; 8 PoE++) GbE RJ45 ports, 4 10G SFP+ ports.
• Performance designed for demanding UniFi networks, including 176 Gbps switching capacity.
• Integrated PoE support with 600W total PoE availability.
• Layer 3 switching features for scalable UniFi network designs.

Technical Specifications

• Dimensions: 442 x 400 x 44 mm
• Weight: Without mounting brackets: 6.2 kg; With mounting brackets: 6.3 kg
• Connectivity: 48 (40 PoE+; 8 PoE++) GbE RJ45 ports, 4 10G SFP+ ports
• Power method: (1) Universal input, 100–240V AC, 50/60 Hz; (1) USP RPS DC input
• Max. power consumption: 60W (Excluding PoE Output); 660W (Including PoE Output)
• PoE budget: 600W
• Switching capacity: 176 Gbps
• Total non-blocking throughput: 88 Gbps
• Forwarding rate: 131 Mpps
• Layer 3: Yes
• Form factor / mounting: Rack mount (1U)
• Operating temperature: -5 to 40° C
• Operating humidity: 10 to 90% noncondensing
• Certifications: CE, FCC, IC, Anatel: 13790-20-08356
• Application requirements: Version 5.10.5 and later<
• Supported VLANs: 1,000
• MAC Address Table Size: 16,000
• IPv4 Static Routes: 256
• Packet Buffer Size: 4 MB
• Redundancy: DC Power Backup (With UniFi RPS)
