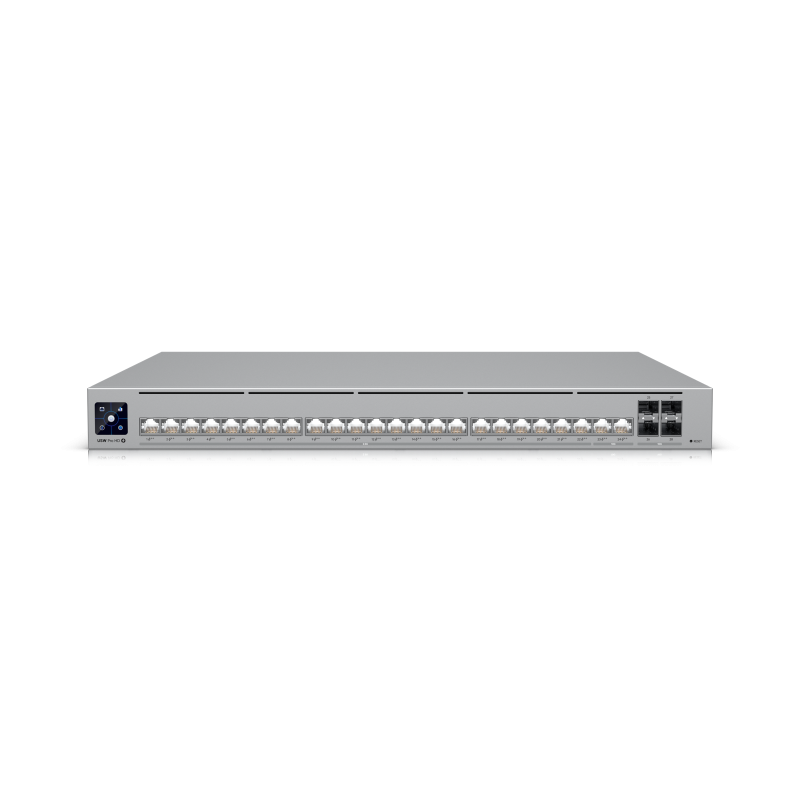

Ubiquiti USW-Pro-HD-24 UniFi Pro HD 24 Professional-grade, Layer 3 Etherlighting™ Switch 2x 10 GbE, 22x 2.5 GbE, 4x 10G SFP+

Ubiquiti USW-Pro-HD-24-PoE UniFi Switch Pro HD 24 PoE

USW-Pro-HD-24-PoE is a UniFi PoE switch for managed business networks, with 22 (All PoE++) 2.5 GbE RJ45 ports, 2 (All PoE++) 10 GbE RJ45 ports, 4 10G SFP+ ports, 230 Gbps switching capacity, and 600W PoE availability.

Key Features

• Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.
• High-density switching with 22 (All PoE++) 2.5 GbE RJ45 ports, 2 (All PoE++) 10 GbE RJ45 ports, 4 10G SFP+ ports.
• Performance designed for demanding UniFi networks, including 230 Gbps switching capacity.
• Integrated PoE support with 600W total PoE availability.
• Layer 3 switching features for scalable UniFi network designs.

Technical Specifications

• Dimensions: 442 x 400 x 44 mm
• Weight: Without mounting brackets: 6.2 kg; With mounting brackets: 6.3 kg
• Connectivity: 22 (All PoE++) 2.5 GbE RJ45 ports, 2 (All PoE++) 10 GbE RJ45 ports, 4 10G SFP+ ports
• Power method: (1) Universal input, 100–240V AC, 50/60 Hz; (1) USP RPS DC input
• Max. power consumption: 60W (Excluding PoE Output); 660W (Including PoE Output)
• PoE budget: 600W
• Switching capacity: 230 Gbps
• Total non-blocking throughput: 115 Gbps
• Forwarding rate: 171 Mpps
• Layer 3: Yes
• Form factor / mounting: Rack mount (1U)
• Operating temperature: -5 to 40° C
• Operating humidity: 10 to 90% noncondensing
• Certifications: CE, FCC, IC, Anatel: 03853-25-08356
• Application requirements: Version 9.0.114 and later
• Supported VLANs: 1,000
• MAC Address Table Size: 32,000
• IPv4 Static Routes: 256
• Packet Buffer Size: 2 MB
• Redundancy: DC Power Backup (With UniFi RPS)
