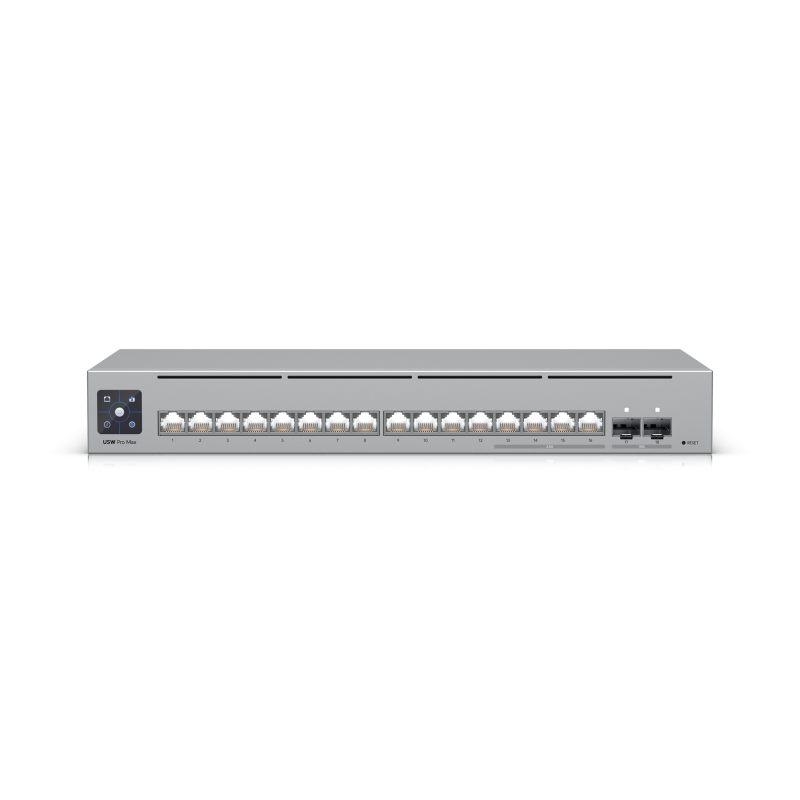

Ubiquiti USW-Pro-Max-16-AU UniFi 16-port, Layer 3 Etherlighting™ switch 2.5 GbE SFP+

Ubiquiti USW-Pro-Max-16 UniFi Switch Pro Max 16

USW-Pro-Max-16 is a UniFi switch for managed business networks, with 12 GbE RJ45 ports, 4 2.5 GbE RJ45 ports, 2 10G SFP+ ports, 84 Gbps switching capacity.

Key Features

• A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options.
• High-density switching with 12 GbE RJ45 ports, 4 2.5 GbE RJ45 ports, 2 10G SFP+ ports.
• Performance designed for demanding UniFi networks, including 84 Gbps switching capacity.
• Layer 3 switching features for scalable UniFi network designs.
• Rack mount (1U), desktop, wall (1U rack-mounting requires add-on Rack Mount accessory) form factor for clean installation in network cabinets or branches.

Technical Specifications

• Dimensions: 325.1 x 160 x 43.7 mm
• Weight: 1.95 kg
• Connectivity: 12 GbE RJ45 ports, 4 2.5 GbE RJ45 ports, 2 10G SFP+ ports
• Power method: AC/DC Adapter (included)
• Max. power consumption: 25W
• Switching capacity: 84 Gbps
• Total non-blocking throughput: 42 Gbps
• Forwarding rate: 62 Mpps
• Layer 3: Yes
• Form factor / mounting: Rack mount (1U), desktop, wall (1U rack-mounting requires add-on Rack Mount accessory)
• Operating temperature: -5 to 40° C
• Operating humidity: 10 to 90% noncondensing
• Certifications: CE, FCC, IC, Anatel: 08953-24-08356
• Application requirements: Version 8.1.127 and later
• Supported VLANs: 1,000
• MAC Address Table Size: 16,000
• IPv4 Static Routes: 256
• Packet Buffer Size: 1.5 MB
