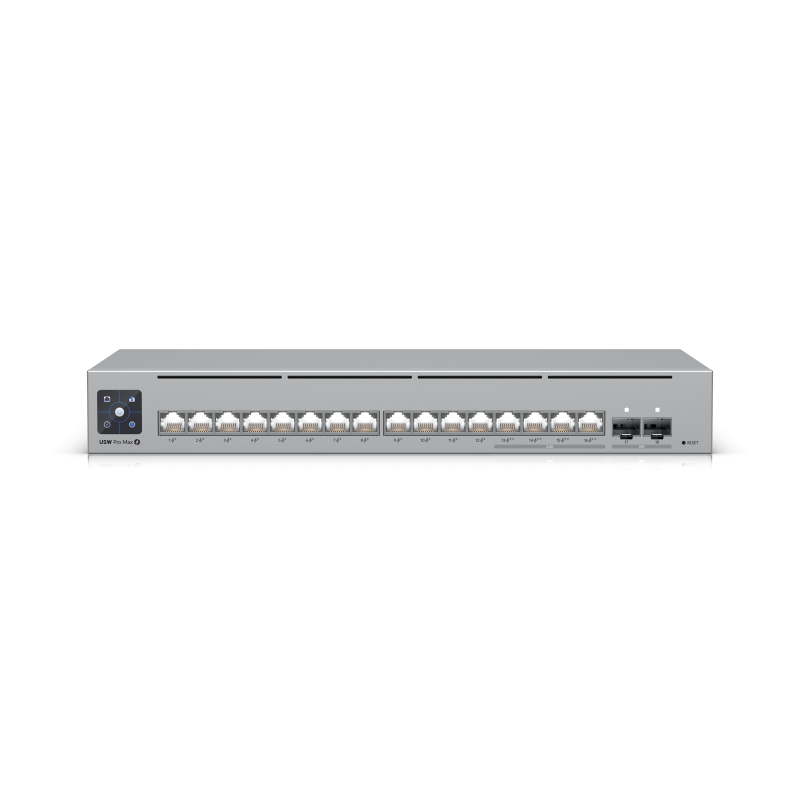

Ubiquiti USW-Pro-Max-16-PoE-AU UniFi 16 Port 180W, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++

Ubiquiti USW-Pro-Max-16-PoE UniFi Switch Pro Max 16 PoE

USW-Pro-Max-16-PoE is a UniFi PoE switch for managed business networks, with 12 (All PoE+) GbE RJ45 ports, 4 (All PoE++) 2.5 GbE RJ45 ports, 2 10G SFP+ ports, 84 Gbps switching capacity, and 180W PoE availability.

Key Features

• A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.
• High-density switching with 12 (All PoE+) GbE RJ45 ports, 4 (All PoE++) 2.5 GbE RJ45 ports, 2 10G SFP+ ports.
• Performance designed for demanding UniFi networks, including 84 Gbps switching capacity.
• Integrated PoE support with 180W total PoE availability.
• Layer 3 switching features for scalable UniFi network designs.

Technical Specifications

• Dimensions: 325.1 x 160 x 43.7 mm
• Weight: 2.1 kg
• Connectivity: 12 (All PoE+) GbE RJ45 ports, 4 (All PoE++) 2.5 GbE RJ45 ports, 2 10G SFP+ ports
• Power method: AC Adapter
• Max. power consumption: 25W (Excluding PoE Output); 210W (Including PoE Output)
• PoE budget: 180W
• Switching capacity: 84 Gbps
• Total non-blocking throughput: 42 Gbps
• Forwarding rate: 62 Mpps
• Layer 3: Yes
• Form factor / mounting: Rack mount (1U), desktop, wall (1U rack-mounting requires add-on Rack Mount accessory)
• Operating temperature: -5 to 40° C
• Operating humidity: 10 to 90% noncondensing
• Certifications: CE, FCC, IC, Anatel: 08953-24-08356
• Application requirements: Version 8.1.127 and later
• Supported VLANs: 1,000
• MAC Address Table Size: 16,000
• IPv4 Static Routes: 256
• Packet Buffer Size: 1.5 MB
