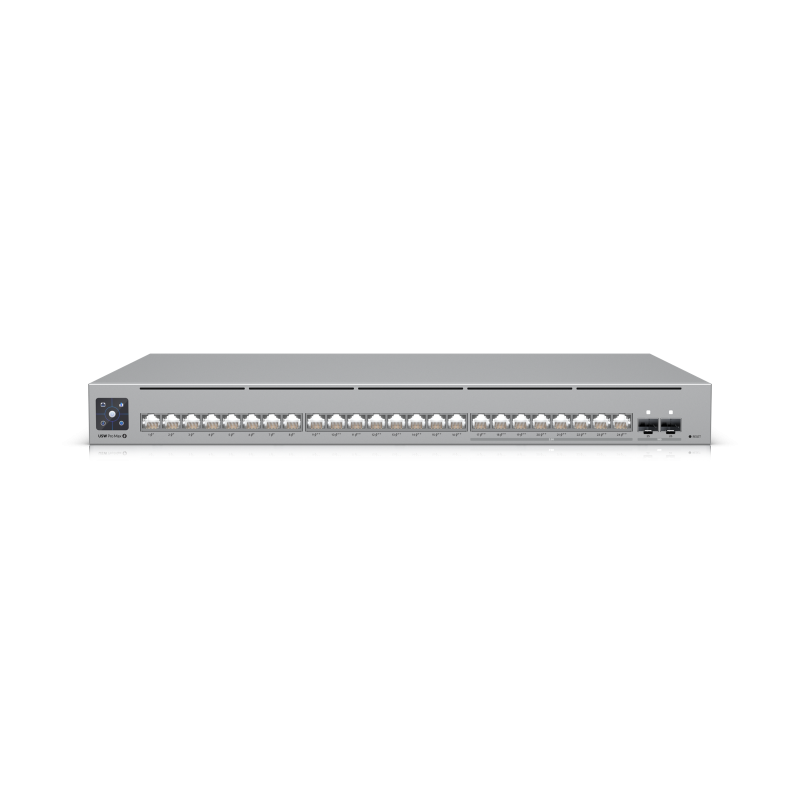

Ubiquiti USW-Pro-Max-24 Unifi 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE

Ubiquiti USW-Pro-Max-24-PoE UniFi Switch Pro Max 24 PoE

USW-Pro-Max-24-PoE is a UniFi PoE switch for managed business networks, with 16 (8 PoE+; 8 PoE++) GbE RJ45 ports, 8 (All PoE++) 2.5 GbE RJ45 ports, 2 10G SFP+ ports, 112 Gbps switching capacity, and 400W PoE availability.

Key Features

• A 24-port, Layer 3 Etherlighting™ switch capable of high-power PoE++ output.
• High-density switching with 16 (8 PoE+; 8 PoE++) GbE RJ45 ports, 8 (All PoE++) 2.5 GbE RJ45 ports, 2 10G SFP+ ports.
• Performance designed for demanding UniFi networks, including 112 Gbps switching capacity.
• Integrated PoE support with 400W total PoE availability.
• Layer 3 switching features for scalable UniFi network designs.

Technical Specifications

• Dimensions: 442 x 325 x 44 mm
• Weight: Without mounting brackets: 5.1 kg; With mounting brackets: 5.2 kg
• Connectivity: 16 (8 PoE+; 8 PoE++) GbE RJ45 ports, 8 (All PoE++) 2.5 GbE RJ45 ports, 2 10G SFP+ ports
• Power method: (1) Universal input, 100–240V AC, 50/60 Hz; (1) USP RPS DC input
• Max. power consumption: 50W (Excluding PoE Output); 450W (Including PoE Output)
• PoE budget: 400W
• Switching capacity: 112 Gbps
• Total non-blocking throughput: 56 Gbps
• Forwarding rate: 83 Mpps
• Layer 3: Yes
• Form factor / mounting: Rack mount (1U)
• Operating temperature: -5 to 40° C
• Operating humidity: 10 to 90% noncondensing
• Certifications: CE, FCC, IC, Anatel: 06374-24-08356
• Application requirements: Version 8.0.24 and later
• Supported VLANs: 1,000
• MAC Address Table Size: 16,000
• IPv4 Static Routes: 256
• Packet Buffer Size: 1.5 MB
• Redundancy: DC Power Backup (With UniFi RPS)
