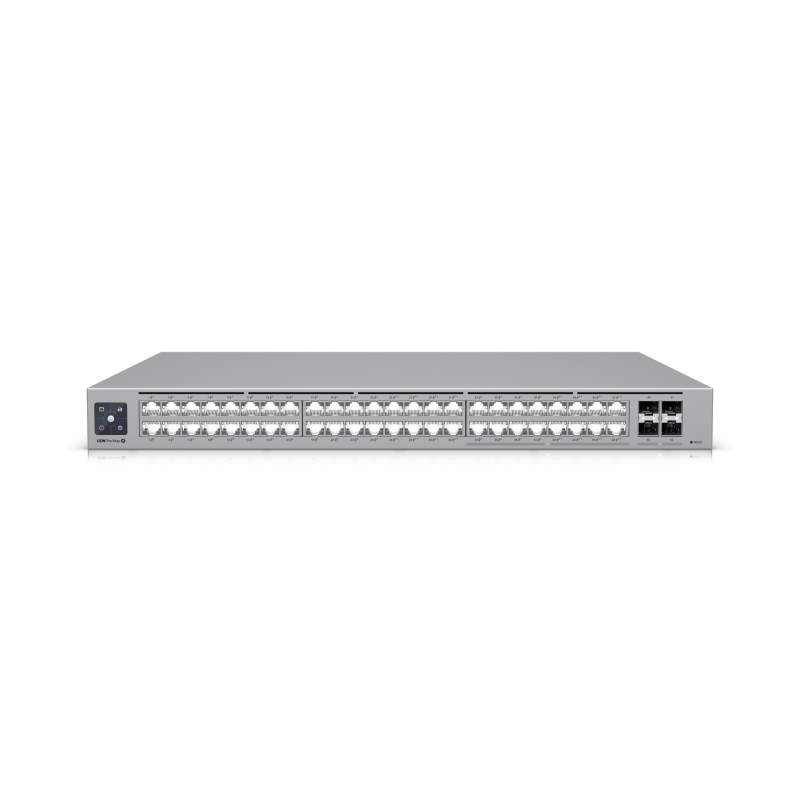

Ubiquiti USW-Pro-Max-48 UniFi Professional Max Layer 3 Etherlighting™ switch with 2.5 GbE

Ubiquiti USW-Pro-Max-48-PoE UniFi Switch Pro Max 48 PoE

USW-Pro-Max-48-PoE is a UniFi PoE switch for managed business networks, with 32 (24 PoE+; 8 PoE++) GbE RJ45 ports, 16 (8 PoE+; 8 PoE++) 2.5 GbE RJ45 ports, 4 10G SFP+ ports, 224 Gbps switching capacity, and 720W PoE availability.

Key Features

• A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.
• High-density switching with 32 (24 PoE+; 8 PoE++) GbE RJ45 ports, 16 (8 PoE+; 8 PoE++) 2.5 GbE RJ45 ports, 4 10G SFP+ ports.
• Performance designed for demanding UniFi networks, including 224 Gbps switching capacity.
• Integrated PoE support with 720W total PoE availability.
• Layer 3 switching features for scalable UniFi network designs.

Technical Specifications

• Dimensions: 442.4 x 400 x 44 mm
• Weight: Without mounting brackets: 6.2 kg; With mounting brackets: 6.3 kg
• Connectivity: 32 (24 PoE+; 8 PoE++) GbE RJ45 ports, 16 (8 PoE+; 8 PoE++) 2.5 GbE RJ45 ports, 4 10G SFP+ ports
• Power method: (1) Universal input, 100–240V AC, 50/60 Hz; (1) USP RPS DC input
• Max. power consumption: 100W (Excluding PoE Output); 820W (Including PoE Output)
• PoE budget: 720W
• Switching capacity: 224 Gbps
• Total non-blocking throughput: 112 Gbps
• Forwarding rate: 167 Mpps
• Layer 3: Yes
• Form factor / mounting: Rack mount (1U)
• Operating temperature: -5 to 40° C
• Operating humidity: 10 to 90% noncondensing
• Certifications: CE, FCC, IC, Anatel: 06373-24-08356
• Application requirements: Version 8.0.24 and later
• Supported VLANs: 1,000
• MAC Address Table Size: 32,000
• IPv4 Static Routes: 256
• Packet Buffer Size: 2 MB
• Redundancy: DC Power Backup (With UniFi RPS)
