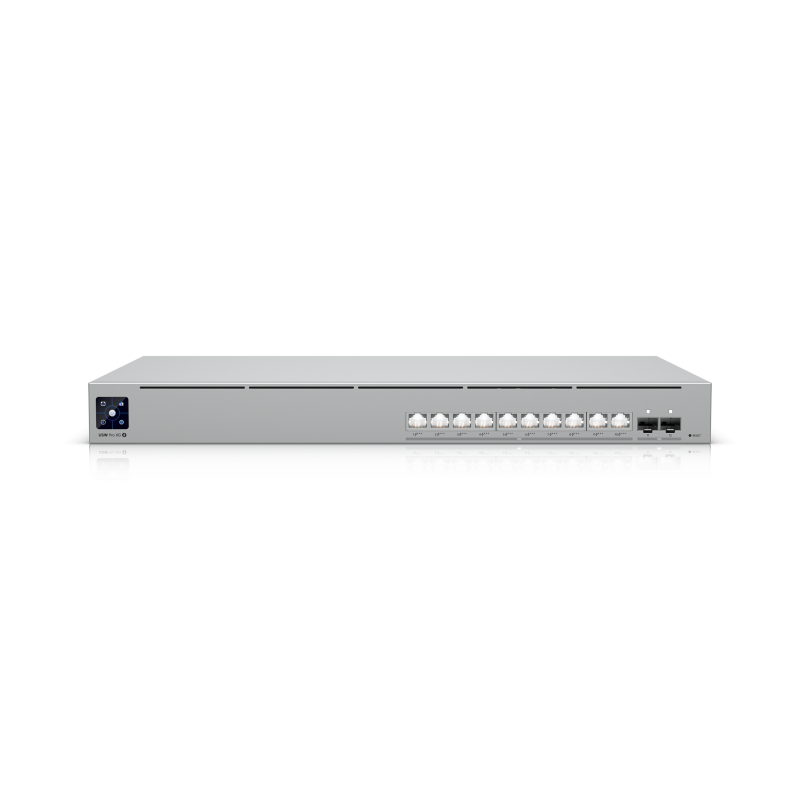

Ubiquiti USW-Pro-XG-10-PoE UniFi professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE (2) 10G SFP+

Ubiquiti USW-Pro-XG-10-PoE UniFi Switch Pro XG 10 PoE

USW-Pro-XG-10-PoE is a UniFi PoE switch for managed business networks, with 10 (All PoE+++) 10 GbE RJ45 ports, 2 10G SFP+ ports, 240 Gbps switching capacity, and 400W PoE availability.

Key Features

• 1U, professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports.
• High-density switching with 10 (All PoE+++) 10 GbE RJ45 ports, 2 10G SFP+ ports.
• Performance designed for demanding UniFi networks, including 240 Gbps switching capacity.
• Integrated PoE support with 400W total PoE availability.
• Layer 3 switching features for scalable UniFi network designs.

Technical Specifications

• Dimensions: 442.4 x 285 x 44 mm
• Weight: Without mounting brackets: 4.6 kg; With mounting brackets: 4.7 kg
• Connectivity: 10 (All PoE+++) 10 GbE RJ45 ports, 2 10G SFP+ ports
• Power method: (1) Universal input, 100–240V AC, 50/60 Hz; (1) USP RPS DC input
• Max. power consumption: 65W (Excluding PoE output); 520W (Including PoE output)
• PoE budget: 400W
• Switching capacity: 240 Gbps
• Total non-blocking throughput: 120 Gbps
• Forwarding rate: 179 Mpps
• Layer 3: Yes
• Form factor / mounting: Rack mount (1U)
• Operating temperature: -5 to 40° C
• Operating humidity: 10 to 90% noncondensing
• Certifications: CE, FCC, IC, Anatel: 05660-25-08356
• Application requirements: Version 9.1.120 and later
• Supported VLANs: 1,000
• MAC Address Table Size: 32,000
• IPv4 Static Routes: 256
• Packet Buffer Size: 2 MB
• Redundancy: DC Power Backup (With UniFi RPS)
