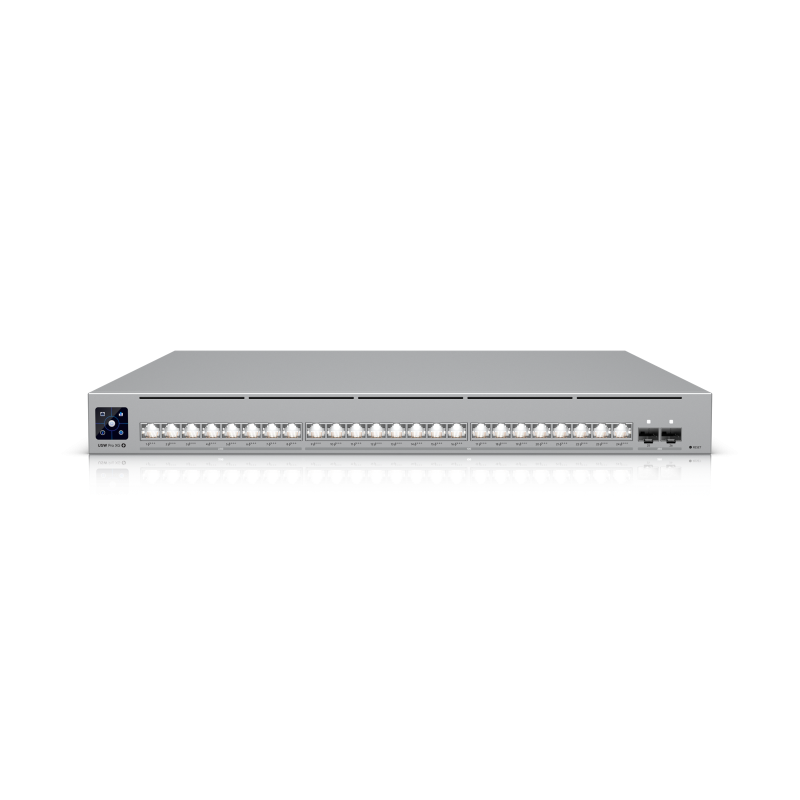

Ubiquiti USW-Pro-XG-24 UniFi Professional-grade, 24-port Layer 3 Etherlighting™ switch with (16) 10 GbE, (8) 2.5 GbE, (2) 25G SF

Ubiquiti USW-Pro-XG-24-PoE UniFi Switch Pro XG 24 PoE

USW-Pro-XG-24-PoE is a UniFi PoE switch for managed business networks, with 8 (All PoE+++) 2.5 GbE RJ45 ports, 16 (All PoE+++) 10 GbE RJ45 ports, 2 25G SFP28 ports, 460 Gbps switching capacity, and 720W PoE availability.

Key Features

• Professional-grade, 24-port Layer 3 Etherlighting™ PoE+++ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.
• High-density switching with 8 (All PoE+++) 2.5 GbE RJ45 ports, 16 (All PoE+++) 10 GbE RJ45 ports, 2 25G SFP28 ports.
• Performance designed for demanding UniFi networks, including 460 Gbps switching capacity.
• Integrated PoE support with 720W total PoE availability.
• Layer 3 switching features for scalable UniFi network designs.

Technical Specifications

• Dimensions: 442 x 480 x 44 mm
• Weight: Without mounting brackets: 7.9 kg; With mounting brackets: 8 kg
• Connectivity: 8 (All PoE+++) 2.5 GbE RJ45 ports, 16 (All PoE+++) 10 GbE RJ45 ports, 2 25G SFP28 ports
• Power method: (1) Universal input, 100–240V AC, 50/60 Hz; (1) USP RPS DC input
• Max. power consumption: 150W (Excluding PoE Output); 870W (Including PoE Output)
• PoE budget: 720W
• Switching capacity: 460 Gbps
• Total non-blocking throughput: 230 Gbps
• Forwarding rate: 342 Mpps
• Layer 3: Yes
• Form factor / mounting: Rack mount (1U)
• Operating temperature: -5 to 40° C
• Operating humidity: 10 to 90% noncondensing
• Certifications: CE, FCC, IC, Anatel: 04322-25-08356
• Application requirements: Version 9.1.120 and later
• Supported VLANs: 1,000
• MAC Address Table Size: 32,000
• IPv4 Static Routes: 512
• Packet Buffer Size: 8 MB
• Redundancy: DC Power Backup (With UniFi RPS)
