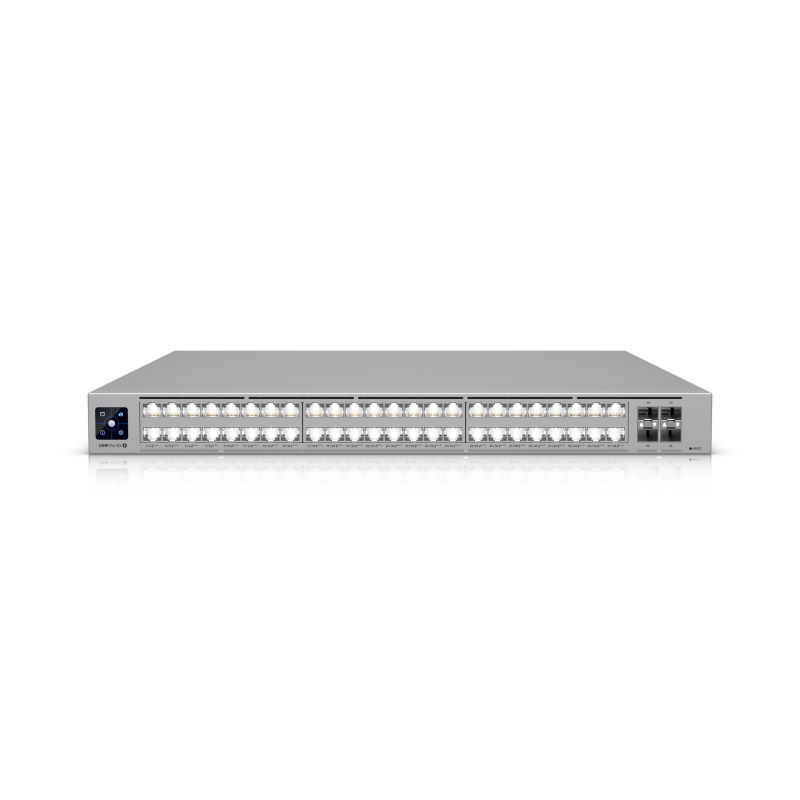

Ubiquiti USW-Pro-XG-48 UniFi Professional-grade, 48-port Layer 3 Etherlighting™ PoE+++ switch with (32) 10 GbE, (16) 2.5 GbE PoE

Ubiquiti USW-Pro-XG-48-PoE UniFi Switch Pro XG 48 PoE

USW-Pro-XG-48-PoE is a UniFi PoE switch for managed business networks, with 16 (All PoE+++) 2.5 GbE RJ45 ports, 32 (All PoE+++) 10 GbE RJ45 ports, 4 25G SFP28 ports, 920 Gbps switching capacity, and 200-240V AC: 1080W; 100-120V AC: 972W PoE availability.

Key Features

• Professional-grade, 48-port Layer 3 Etherlighting™ PoE+++ switch with (32) 10 GbE, (16) 2.5 GbE PoE, and (4) 25G SFP28 ports.
• High-density switching with 16 (All PoE+++) 2.5 GbE RJ45 ports, 32 (All PoE+++) 10 GbE RJ45 ports, 4 25G SFP28 ports.
• Performance designed for demanding UniFi networks, including 920 Gbps switching capacity.
• Integrated PoE support with 200-240V AC: 1080W; 100-120V AC: 972W total PoE availability.
• Layer 3 switching features for scalable UniFi network designs.

Technical Specifications

• Dimensions: 442 x 480 x 44 mm
• Weight: Without mounting brackets: 8.7 kg; With mounting brackets: 8.8 kg
• Connectivity: 16 (All PoE+++) 2.5 GbE RJ45 ports, 32 (All PoE+++) 10 GbE RJ45 ports, 4 25G SFP28 ports
• Power method: (1) Universal input, 100–240V AC, 50/60 Hz; (1) USP RPS DC input
• Max. power consumption: 200W (Excluding PoE Output); 200-240V: 1,280W /; 100-120V AC: 1,172W (Including PoE Output)
• PoE budget: 200-240V AC: 1080W; 100-120V AC: 972W
• Switching capacity: 920 Gbps
• Total non-blocking throughput: 460 Gbps
• Forwarding rate: 684 Mpps
• Layer 3: Yes
• Form factor / mounting: Rack mount (1U)
• Operating temperature: -5 to 40° C
• Operating humidity: 10 to 90% noncondensing
• Certifications: CE, FCC, IC, Anatel: 04322-25-08356
• Application requirements: Version 9.1.120 and later
• Supported VLANs: 1,000
• MAC Address Table Size: 32,000
• IPv4 Static Routes: 512
• Packet Buffer Size: 8 MB
• Redundancy: DC Power Backup (With UniFi RPS)
